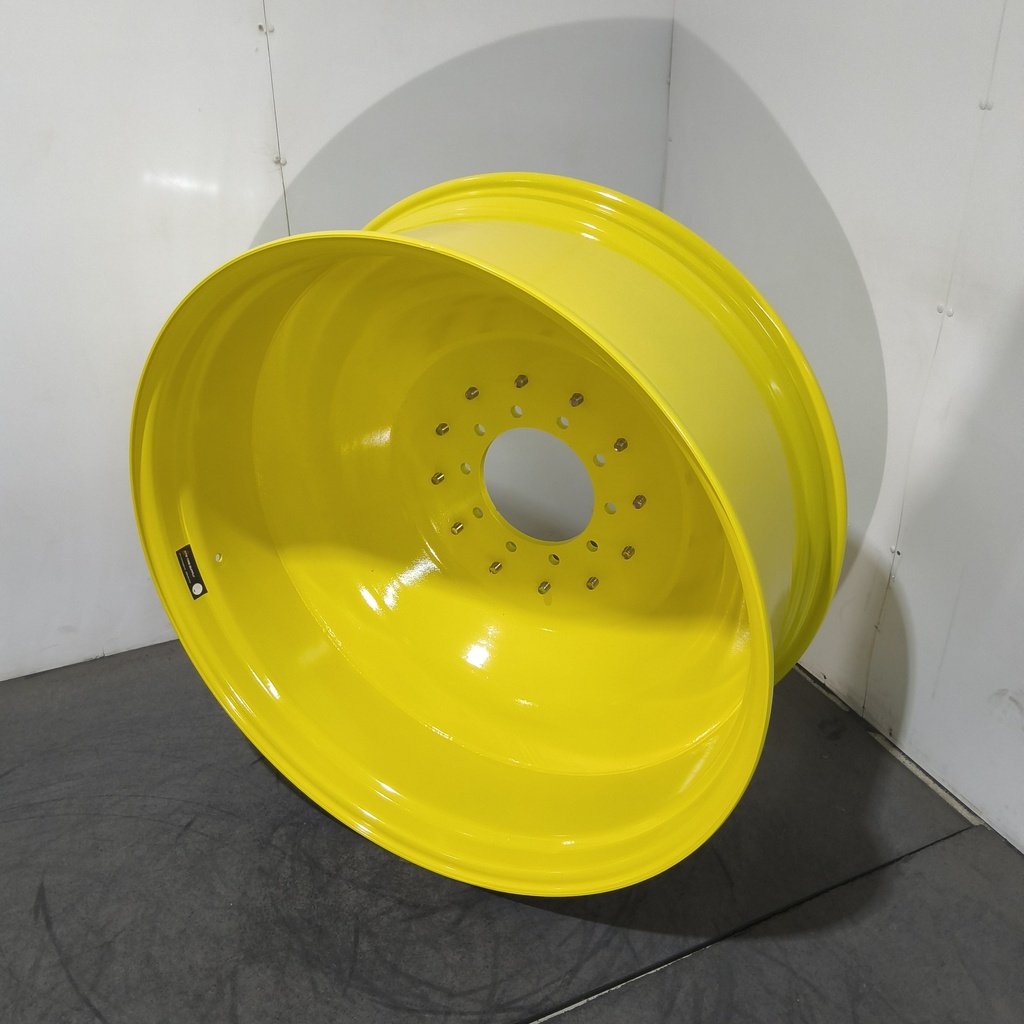

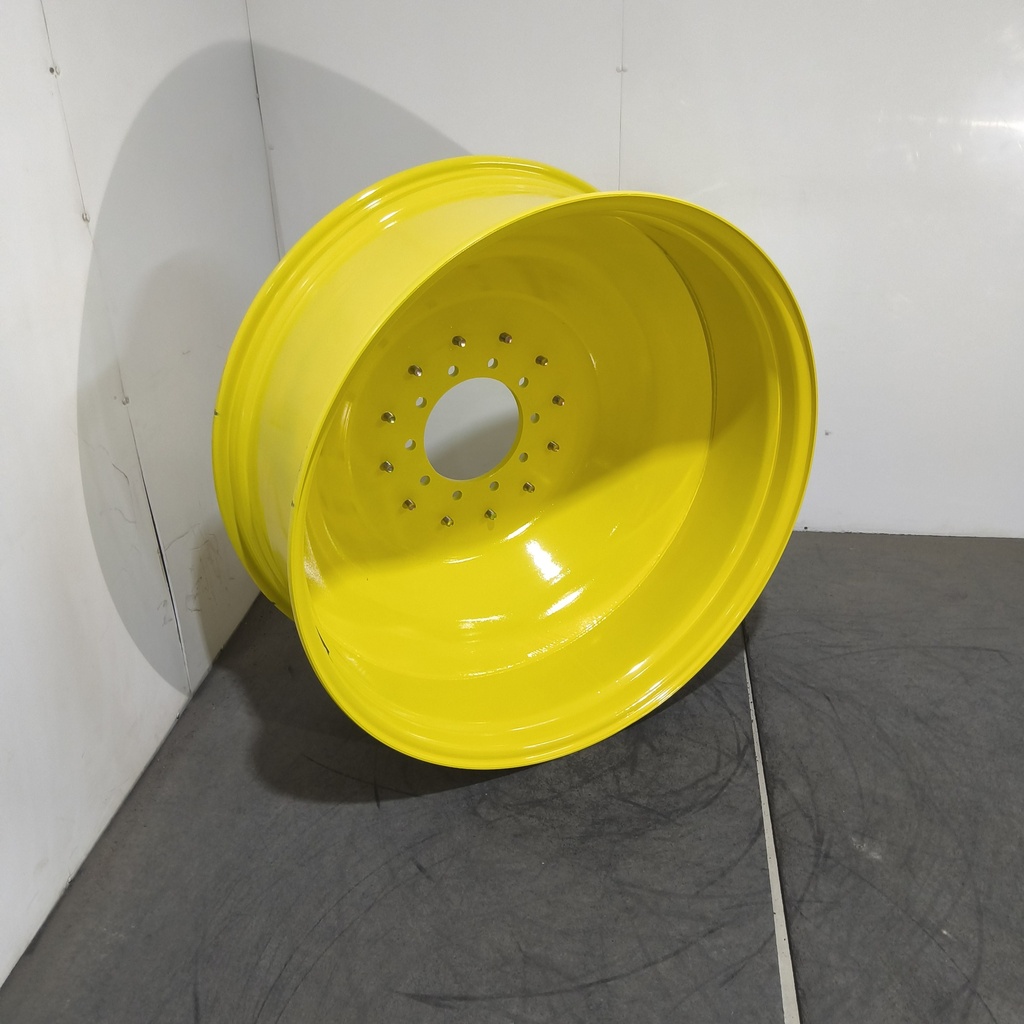

16"W x 42"D, John Deere Yellow 10-Hole Straddle Dual - Inside Main , 8.5" Offset

Stock Number: NTS-171886
MANUFACTURED WHEEL

16 x 42 Straddle Dual-Main, 10H, 9.5" CH, 12" BC inside, 12H, 16.75" BC outside, 3/4" NC, +8.5" offset, JD yellow.

$ 1,500.00 $ 1,500.00

/ea
Add to cart
Contact Us
Availability
1 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-171886
Brand NTS Tire Supply
Model/Style Straddle Dual - Inside Main
Rim Design Flat-Base
Rim Diameter 42"
Rim Width 16"
Paint Color John Deere Yellow
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location V - Vertical
Weight 500.0
Diameter 44.5
Width 17.875
Disc Thickness 0.75
Wheel Offset 8.5
Rim Backside 17.437
Rim Frontside -0.312
Rim Inside Diameter 40.0
Drop Center Width 10.5
Casting Diameter 0.0
Rim Material Thickness 0.312
Valve Hole Diameter 5/8"
Bolt Hole Quantity 10
Bolt Circle Diameter 12.0
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.938
Pilot Hole 9.5
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 12
Outside Bolt Circle Diameter 16.75
Outside Bolt Hole Size 18MM-20MM Bolt
Outside Actual Bolt Hole Size 0.812
Outside Bolt Countersink Straight Round
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
