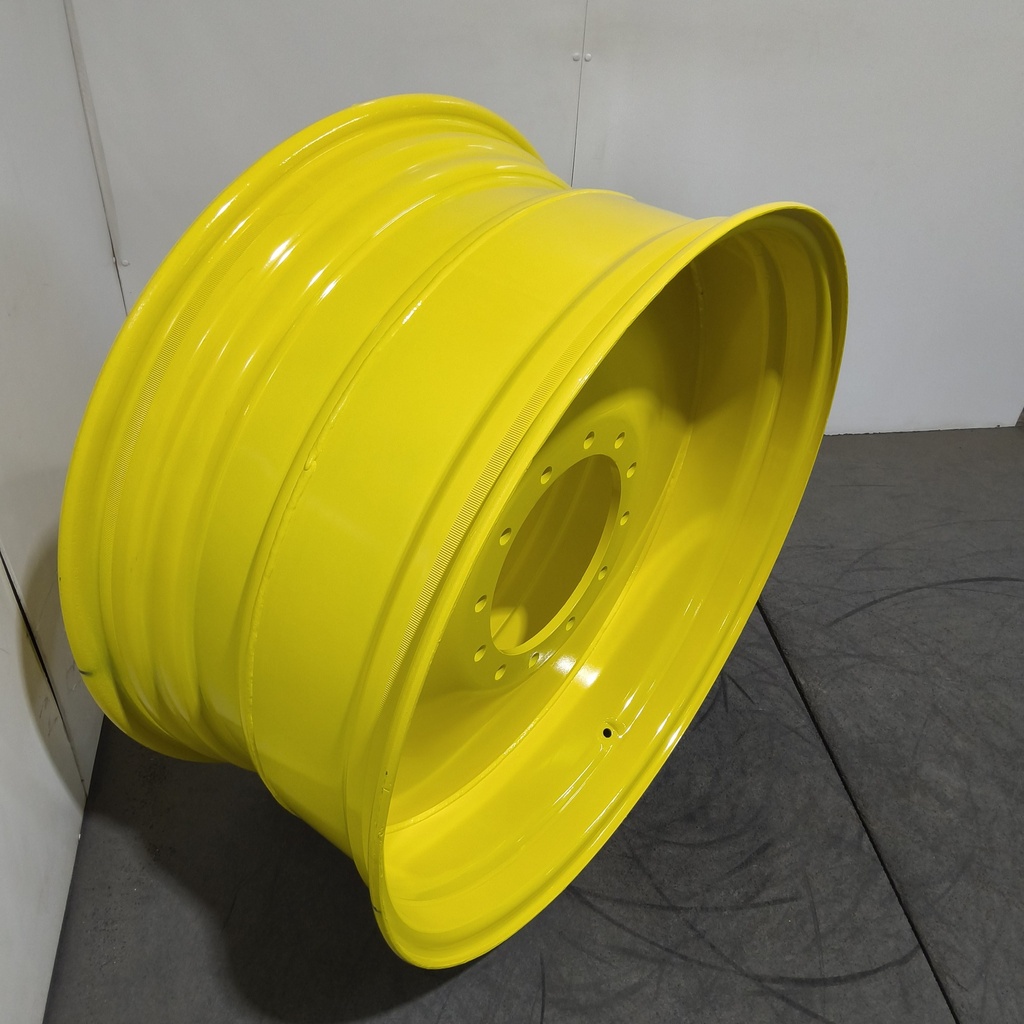

18"W x 38"D, John Deere Yellow 12-Hole Formed Plate Sprayer , -3.88" Offset

Stock Number: NTS-171462
REMANUFACTURED WHEEL

DW18 x 38 12H, 13.9" BC formed plate wheel(narrowed), -3.875" offset(6" backside), JD R4030 to 400R series.

$ 1,060.00 $ 1,060.00

/ea
Add to cart
Contact Us
Availability
4 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-171462
Brand NTS Tire Supply
Model/Style Formed Plate Sprayer
Rim Design "DW" Style
Rim Diameter 38"
Rim Width 18"
Paint Color John Deere Yellow
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location C2 - Corner/Angle Both Sides
Weight 436.6
Diameter 40.5
Width 19.75
Disc Thickness 0.625
Wheel Offset -3.875
Rim Backside 6.0
Rim Frontside 13.125
Rim Inside Diameter 36.0
Drop Center Width 2.5
Casting Diameter 0.0
Rim Material Thickness 0.276
Valve Hole Diameter 5/8"
Bolt Hole Quantity 12
Bolt Circle Diameter 13.976
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.937
Pilot Hole 11.857
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
