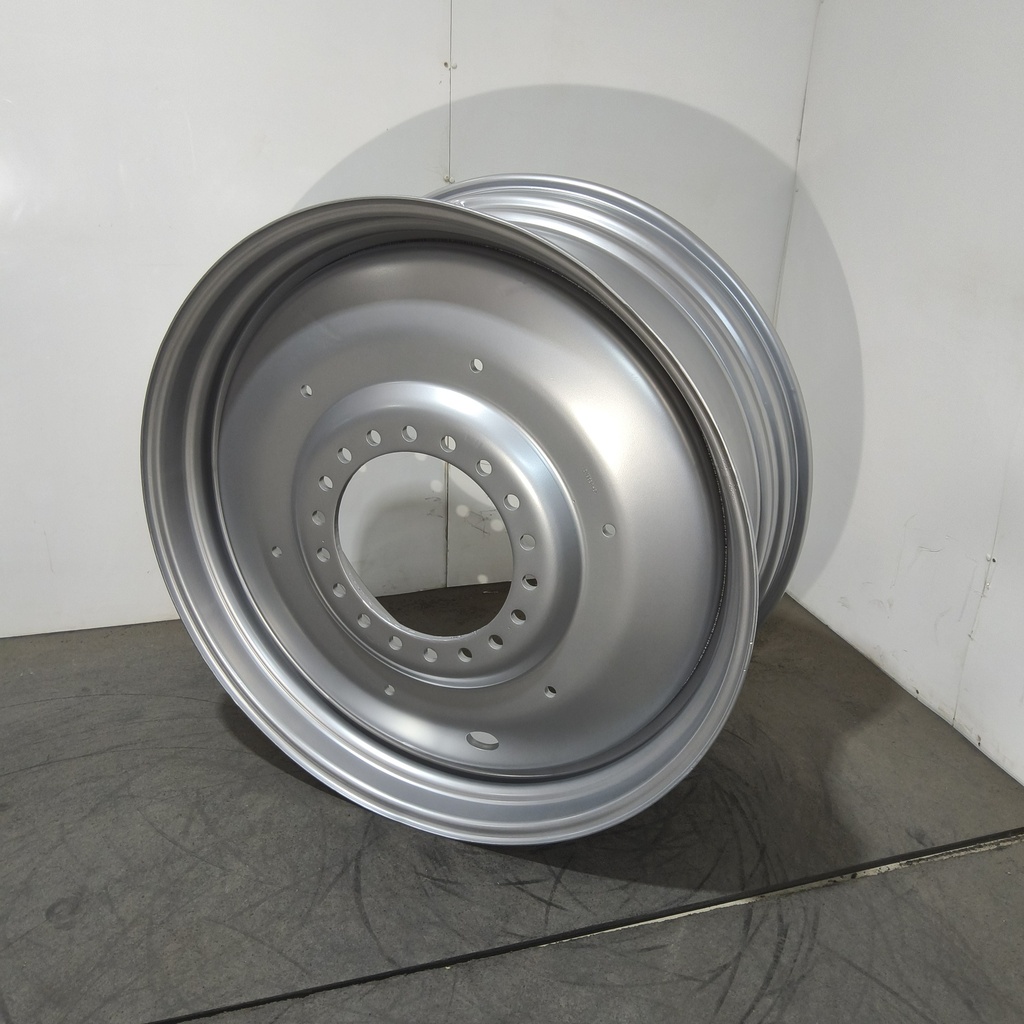

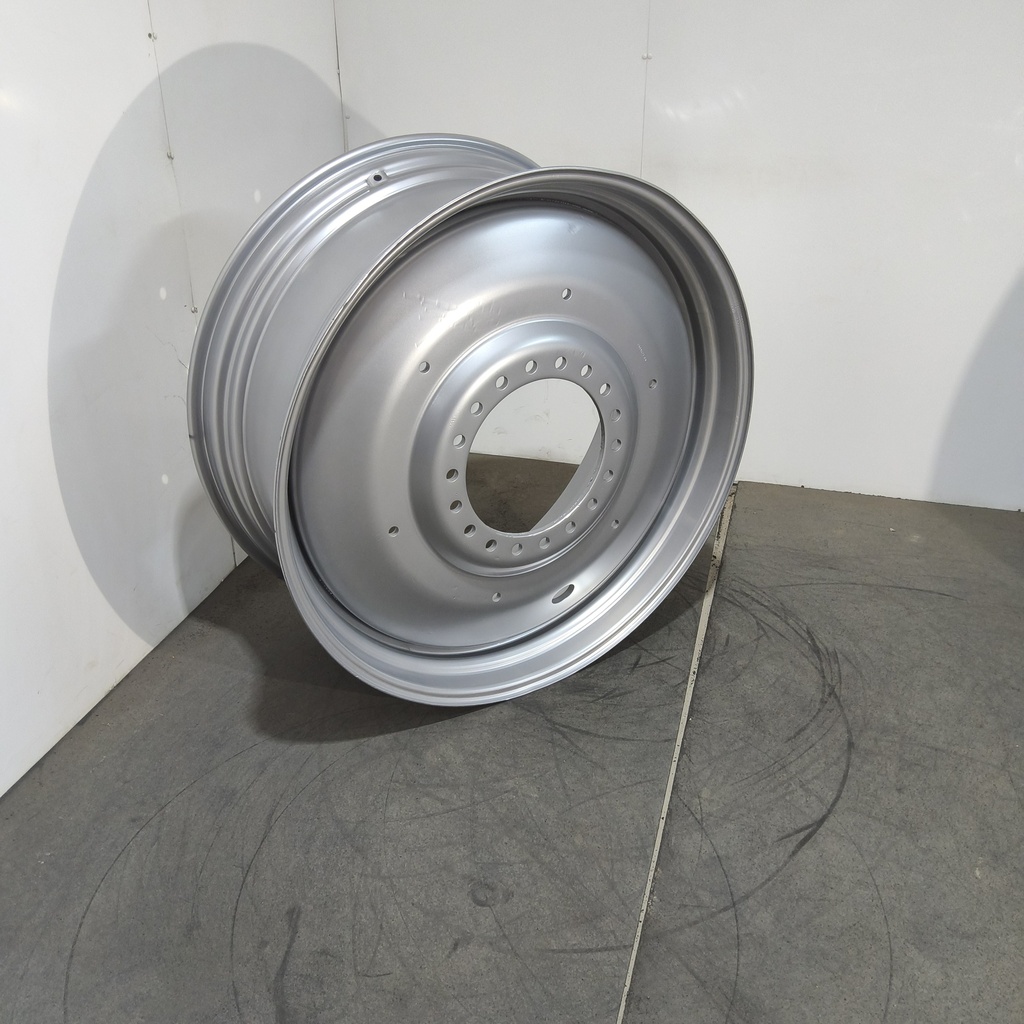

18"W x 42"D, Case IH Silver Mist 18-Hole Formed Plate , -8.62" Offset

Stock Number: NTS-171194
REFURBISHED WHEEL

$ 1,000.00 $ 1,000.00

/ea
Add to cart
Contact Us
Availability
1 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-171194
Brand Titan Wheel
Model/Style Formed Plate
Rim Design Medium Drop-Center
Rim Diameter 42"
Rim Width 18"
Paint Color Case IH Silver Mist
Weight Holes Yes
Flange Reinforcement No
Valve Guard Yes
Valve Hole Location
Weight 335.0
Diameter 44.5
Width 19.5
Disc Thickness 0.625
Wheel Offset -8.625
Rim Backside 1.125
Rim Frontside 17.75
Rim Inside Diameter 0.0
Drop Center Width
Casting Diameter 0.0
Rim Material Thickness 0.229
Valve Hole Diameter
Bolt Hole Quantity 18
Bolt Circle Diameter 15.688
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.938
Pilot Hole 13.313
Bolt Countersink
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
