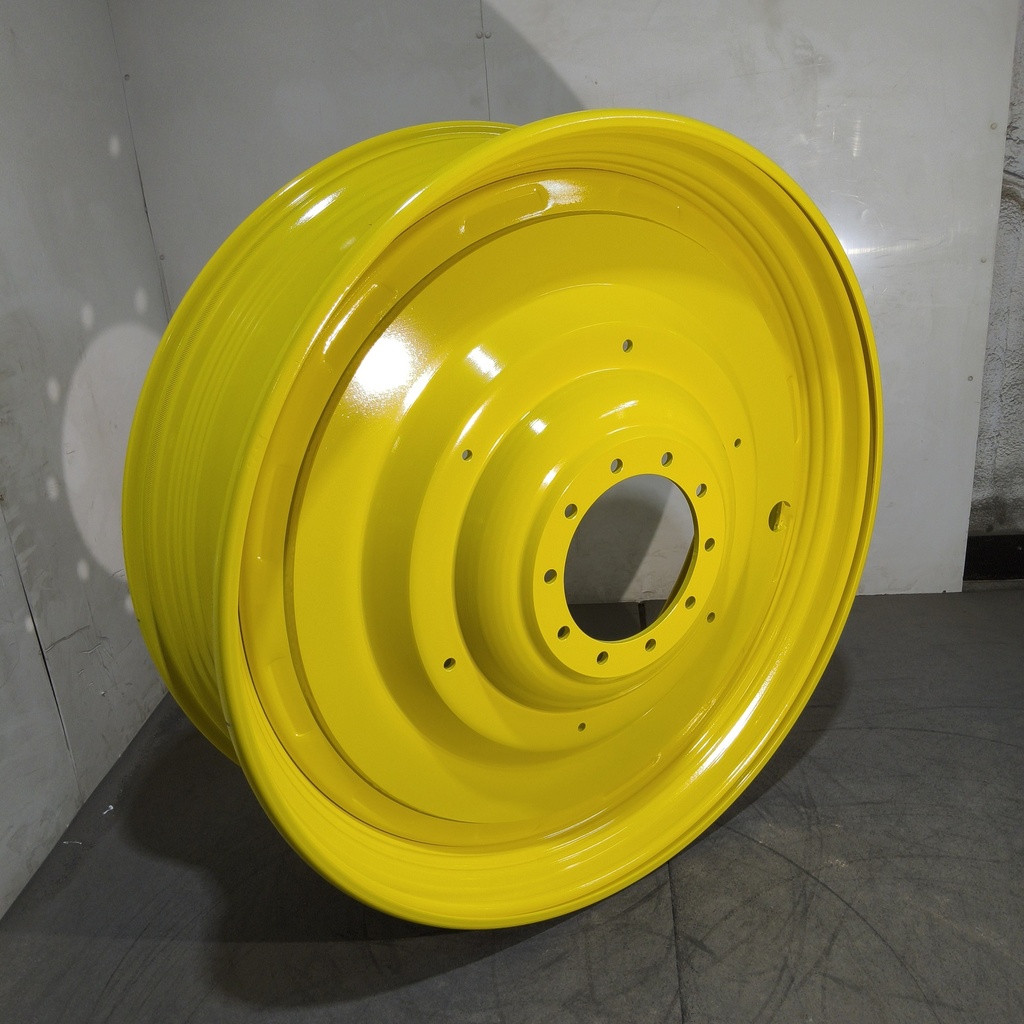

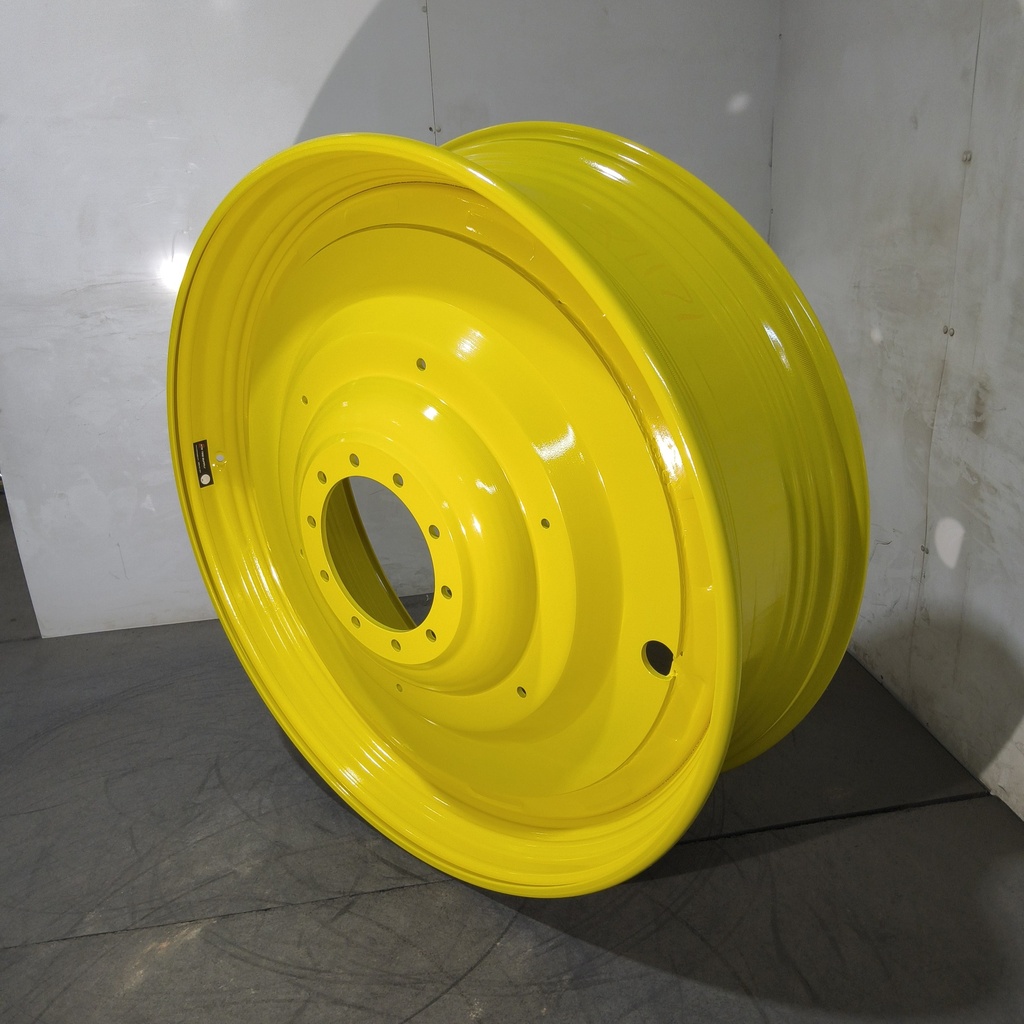

15"W x 50"D, John Deere Yellow 10-Hole Formed Plate , -9.75" Offset

Stock Number: NTS-170477
REMANUFACTURED WHEEL

DW15 x 50 10H, 13.19" BC spun disc center with weight holes(remanufactured), -9.75" offset, JD yellow.

$ 1,275.00 $ 1,275.00

/ea
Add to cart
Contact Us
Availability
4 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-170477
Brand NTS Tire Supply
Model/Style Formed Plate
Rim Design Medium Drop-Center
Rim Diameter 50"
Rim Width 15"
Paint Color John Deere Yellow
Weight Holes Yes
Flange Reinforcement No
Valve Guard No
Valve Hole Location C - Corner/Angle
Weight 400.0
Diameter 52.5
Width 17.25
Disc Thickness 0.5
Wheel Offset -9.75
Rim Backside -1.125
Rim Frontside 17.875
Rim Inside Diameter 46.0
Drop Center Width 5.50
Casting Diameter 0.0
Rim Material Thickness 0.236
Valve Hole Diameter 5/8"
Bolt Hole Quantity 10
Bolt Circle Diameter 13.187
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.937
Pilot Hole 11.05
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
