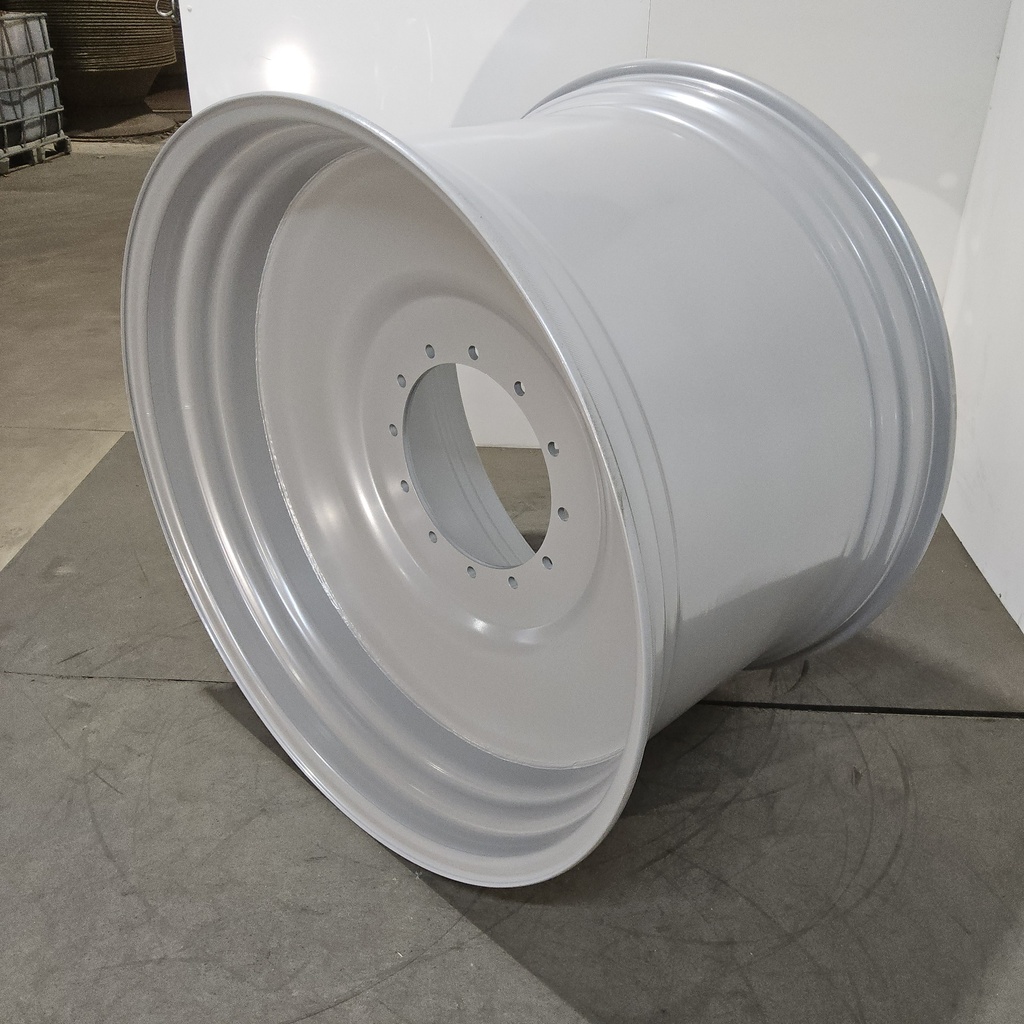

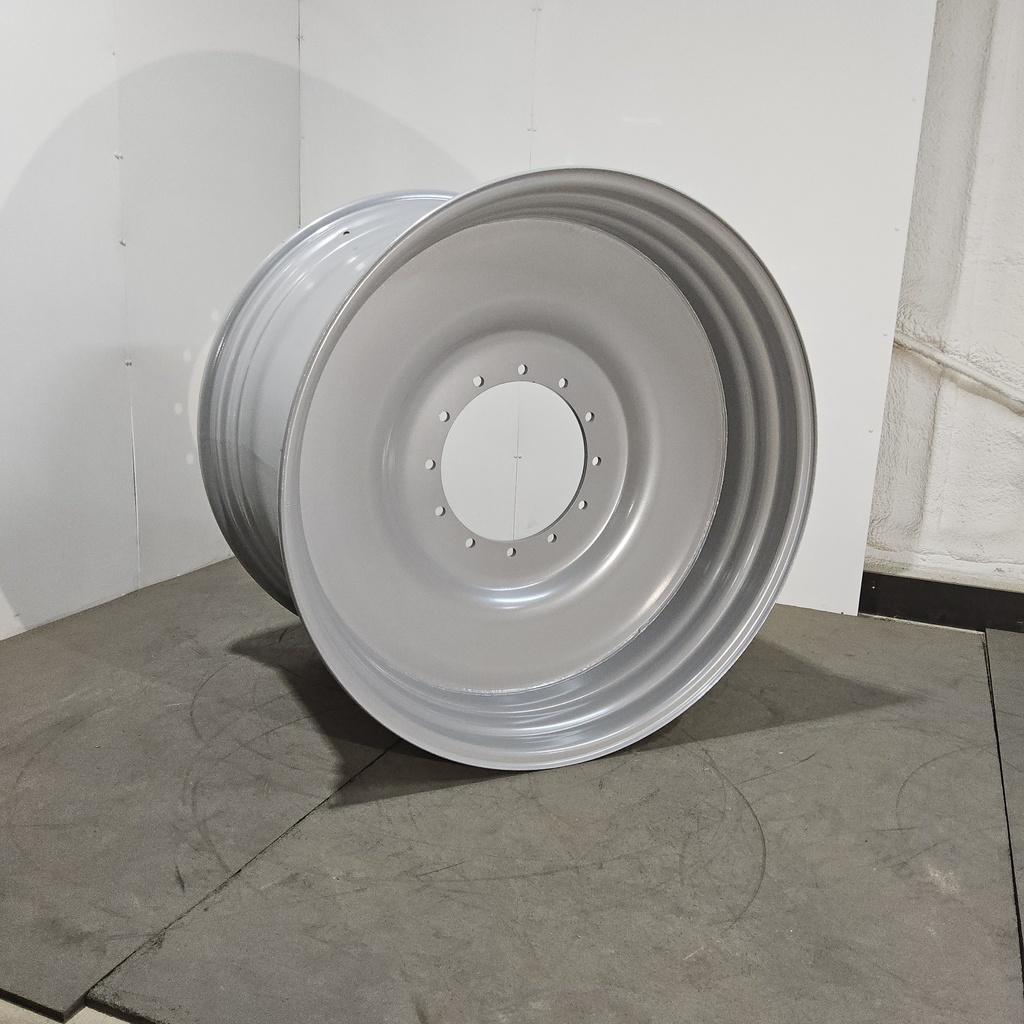

30"W x 46"D, Agco Corp Gray 12-Hole Spun Disc , -4" Offset

Stock Number: NTS-133267
MANUFACTURED WHEEL

DW30 x 46 12H, 16.75" BC spun disc wheel, -4.0" offset, Agco Gray.

$ 2,350.00 $ 2,350.00

/ea
Add to cart
Contact Us
Availability
2 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade
Specifications
Stock No. NTS-133267
Brand NTS Tire Supply
Model/Style Spun Disc
Rim Design Medium Drop-Center
Rim Diameter 46"
Rim Width 30"
Paint Color Agco Corp Gray
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location C - Corner/Angle
Weight 615.0
Diameter 48.5
Width 32.125
Disc Thickness 0.625
Wheel Offset -4.0
Rim Backside 12.063
Rim Frontside 19.437
Rim Inside Diameter 42.063
Drop Center Width 19.00
Casting Diameter 0.0
Rim Material Thickness 0.275
Valve Hole Diameter 5/8"
Bolt Hole Quantity 12
Bolt Circle Diameter 16.75
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.937
Pilot Hole 14.625
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
