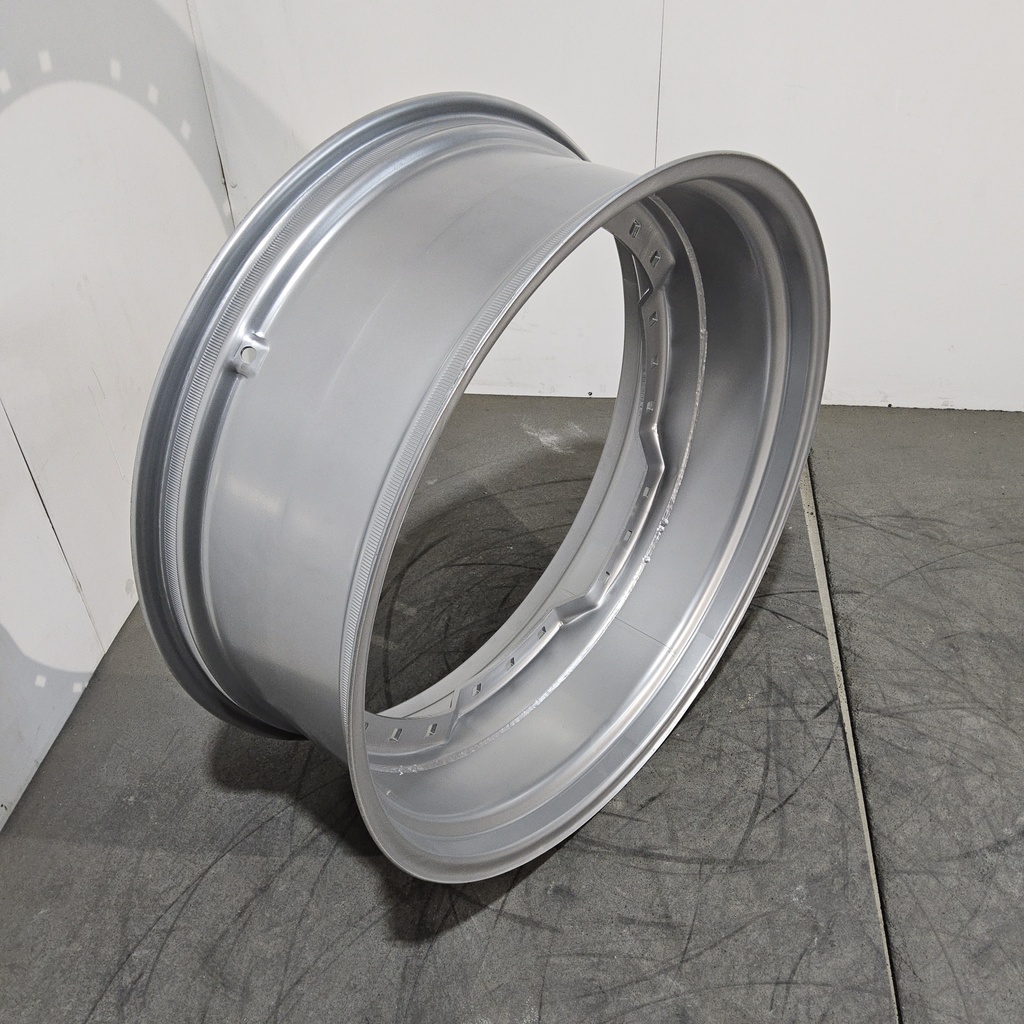

13"W x 34"D, Case IH Silver Mist 12-Hole Waffle Wheel (Groups of 3 bolts)

Stock Number: 75021
NEW WHEEL

$ 480.00 $ 480.00

/ea
Add to cart
Contact Us
Availability
2 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Stock No. 75021
Brand Titan Wheel
Model/Style Waffle Wheel (Groups of 3 bolts)
Rim Design Flat-Base
Rim Diameter 34"
Rim Width 13"
Paint Color Case IH Silver Mist
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location C - Corner/Angle
Weight 150.0
Diameter 36.5
Width 14.0
Rim Inside Diameter 32.0
Drop Center Width 8.25
Casting Diameter 0.0
Rim Material Thickness 0.187
Valve Hole Diameter 5/8"
Bolt Hole Quantity 12
Bolt Circle Diameter 29.25
Bolt Hole Size 16MM(5/8") Stud
Actual Bolt Hole Size 0.688
Pilot Hole 27.5
Bolt Countersink Square
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
