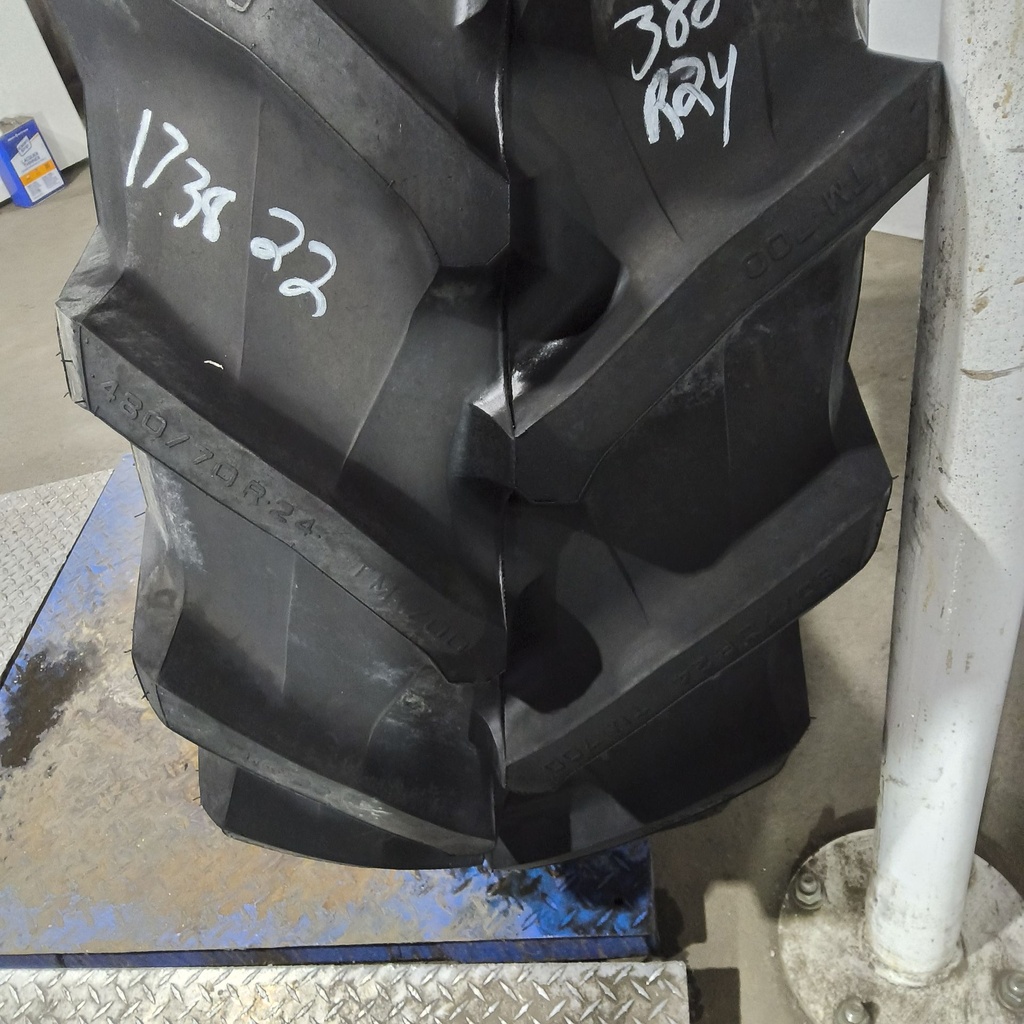

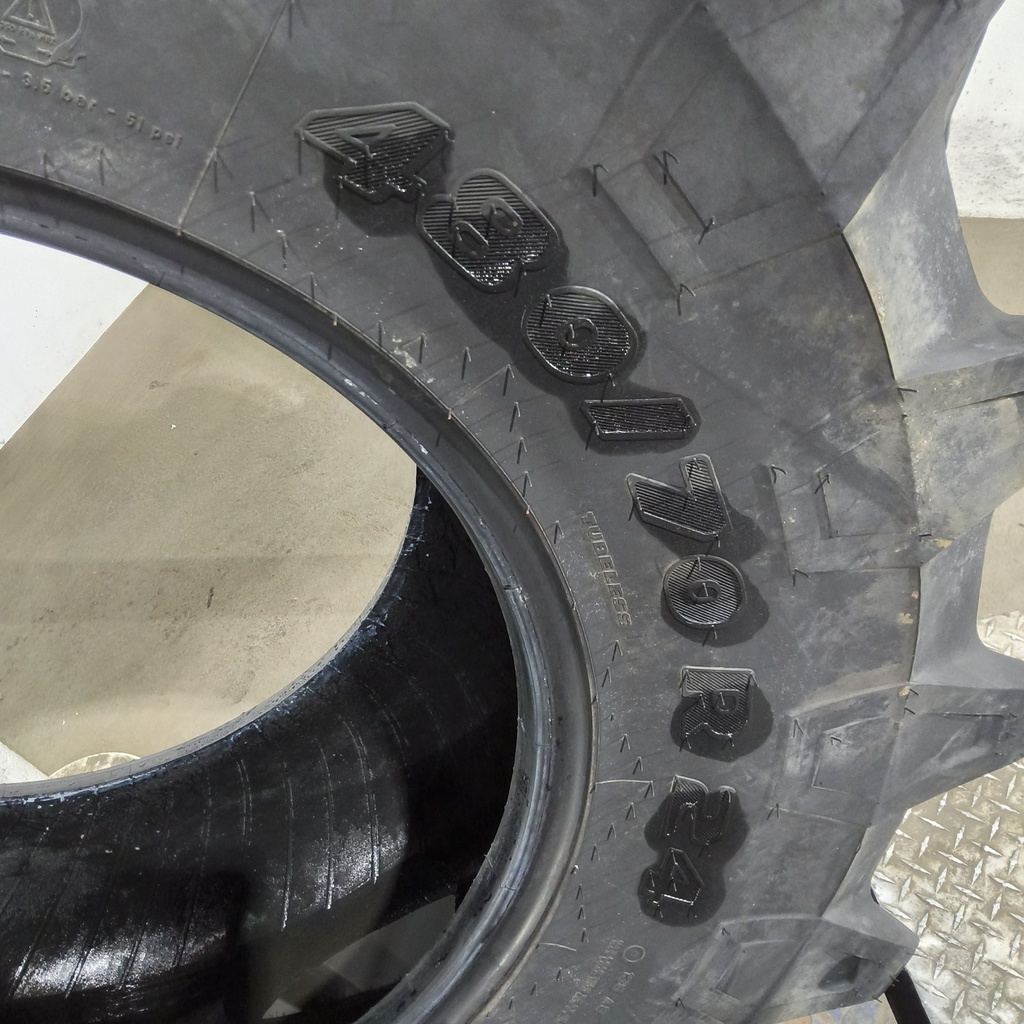

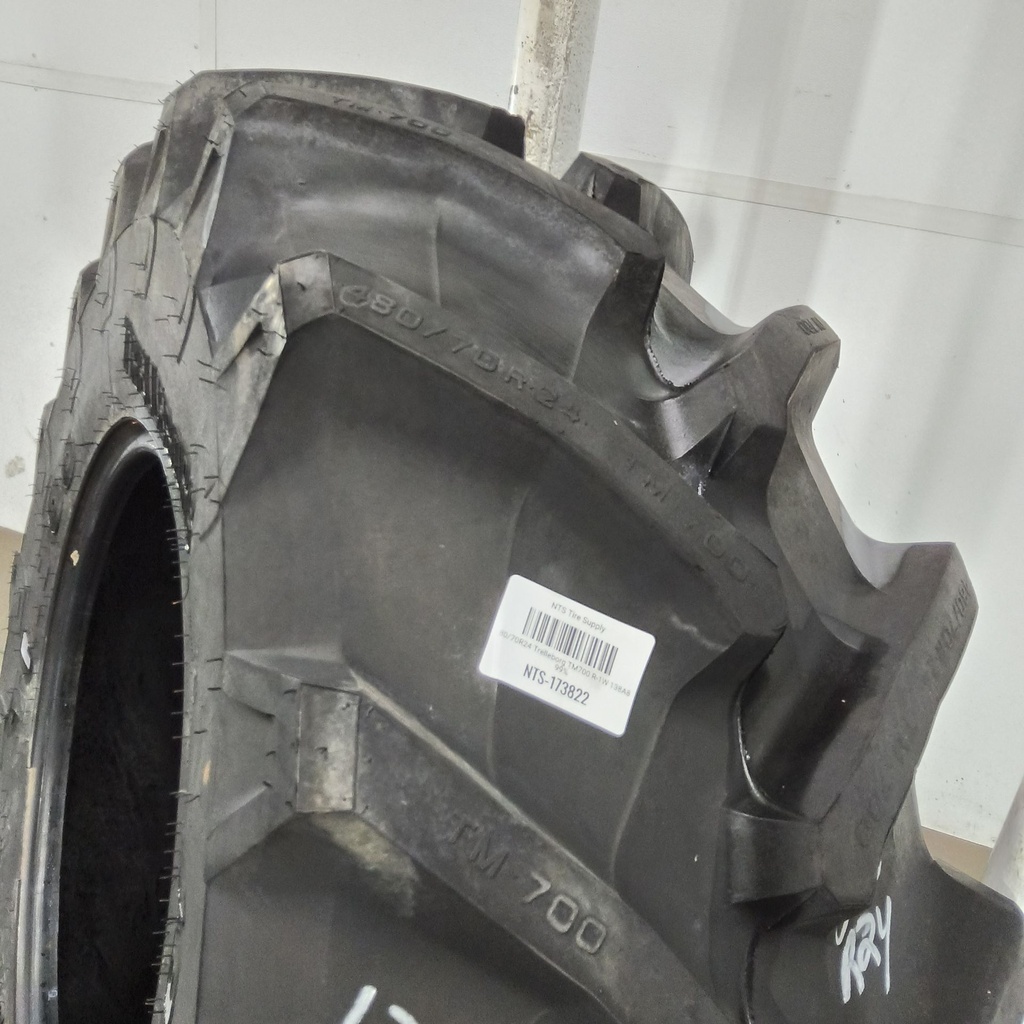

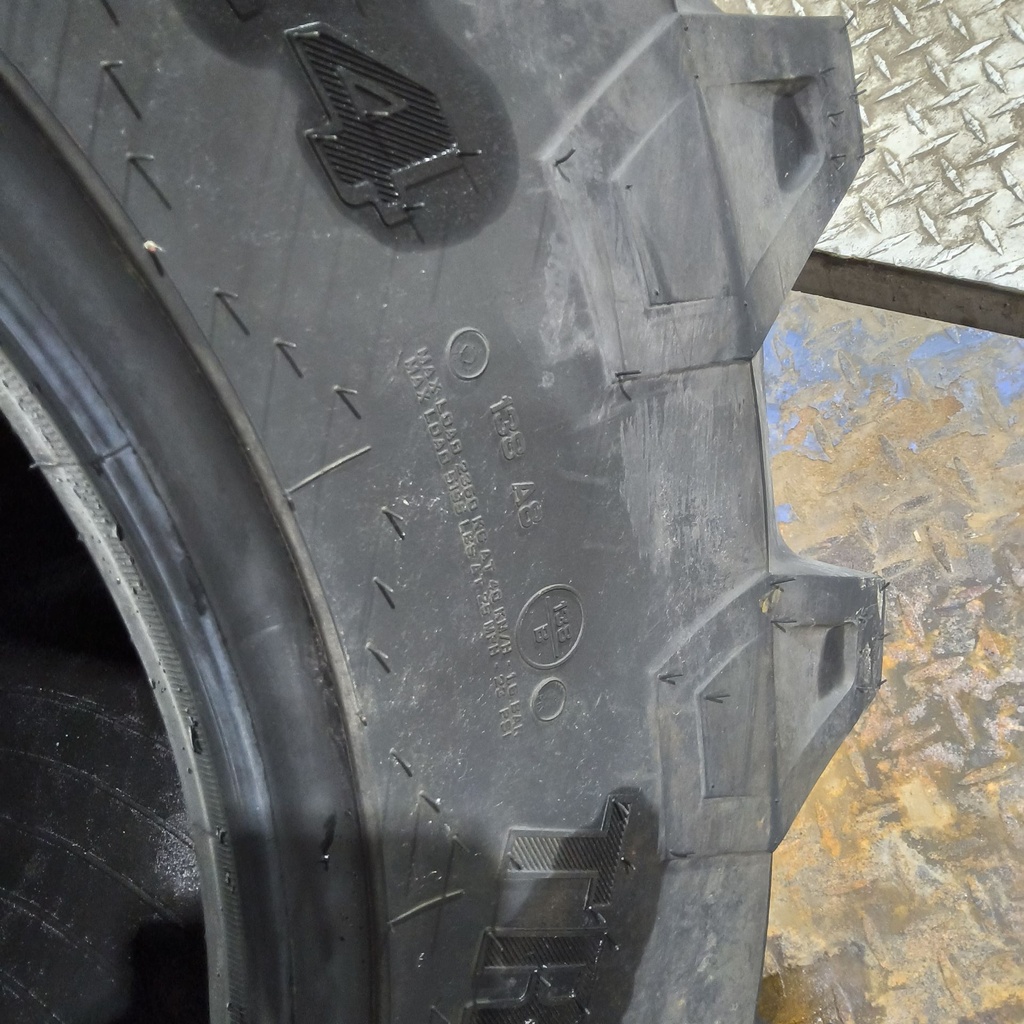

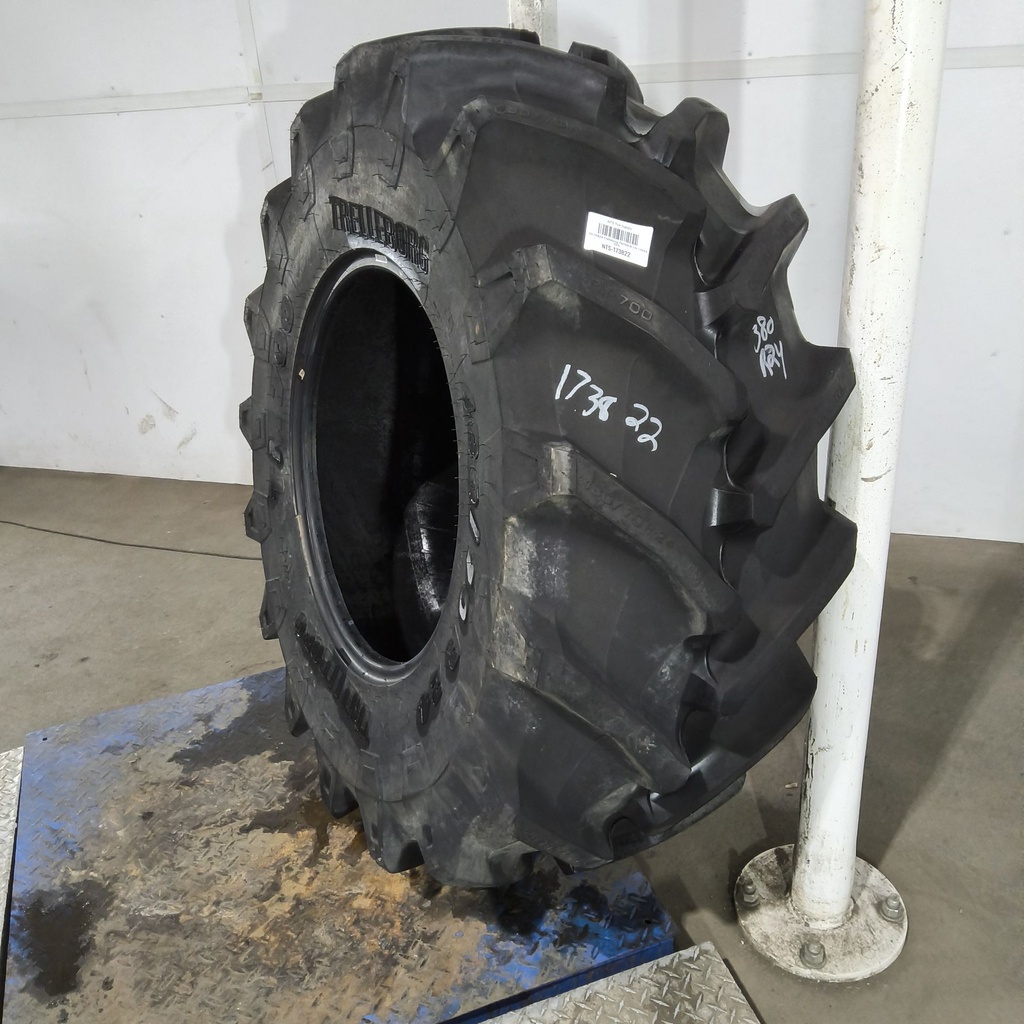

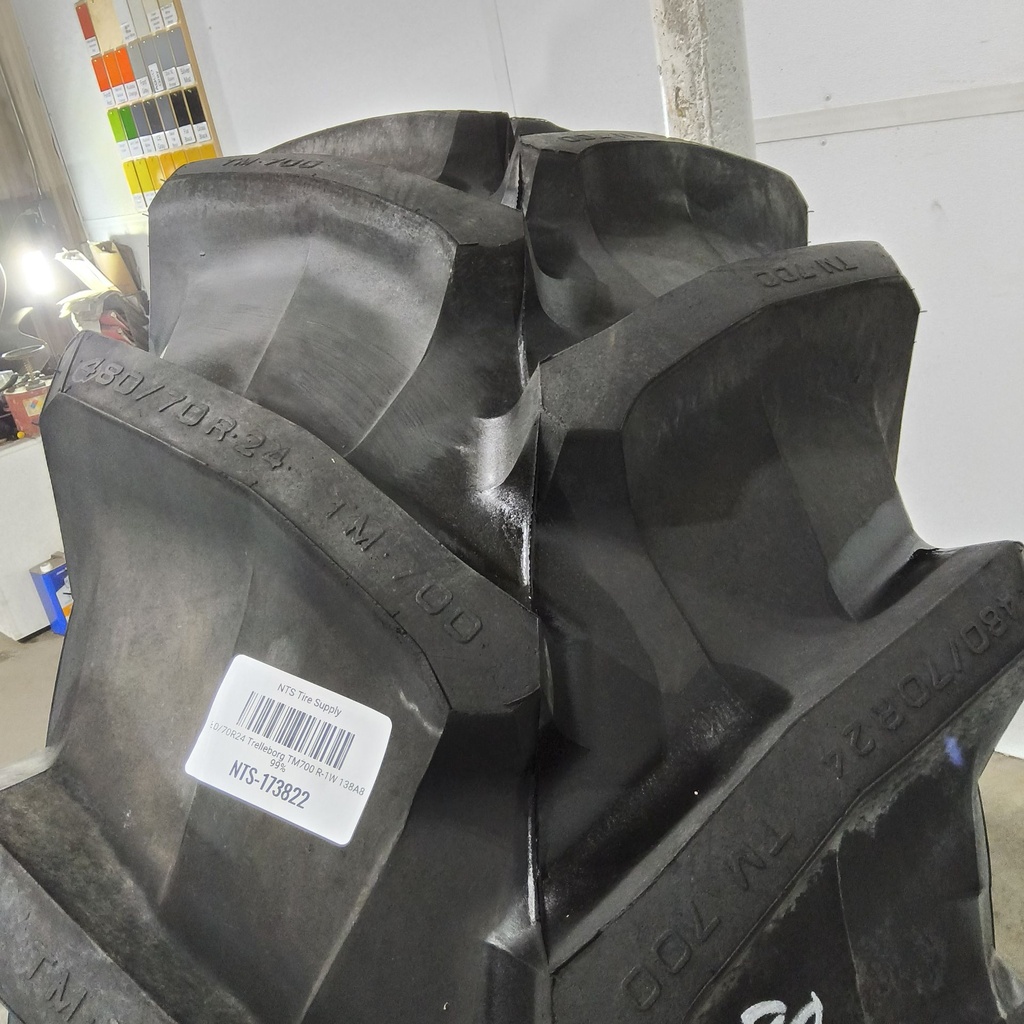

480/70R24 Trelleborg TM700 R-1W 138A8 99%


Stock Number: NTS-173822
USED TIRE

$ 640.00 $ 640.00

/ea
Availability
2 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Tread Depth Remaining 99%
Chips/Chunking/Cuts Light
Road Wear
Weathering/Dry Rot
Stubble
Bead Damage/Bent/Chipped
Blistering-SW/Liner or Face
Casing Cracks
Repairs Completed None
Warranty 2 Year Black Gold Warranty
Mfg Date Code 2022
Required Product None
Specifications

Line in/70 series, very well known for its performance and versatility, capable of optimizing the tractors efficiency during its whole life cycle.

  • Maximum self-cleaning
  • Excellent traction
  • High level of handling and comfort on the road
Stock No. NTS-173822
Brand Trelleborg
Model/Style TM700
Tread Style (R-1W) Agricultural Deep Tread/Wet Soil
Tire Size 480/70R24
Rim Width 14.25", 14.5", 14.63", 14", 15.5", 15", 16"
Preferred Rim
RCI Group 39 (49.66" - 52.30")
Casing Technology
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TL) Tubeless
Weight 192.0
Diameter 51.2
Width 18.4
Rolling Circumference 0.0
Static Load Radius 22.8
Flat Plate Area 0
Tread Width 0.0
Ply Rating
Load Index/Speed Rating 138A8
Load Limit Single 5200 lbs / 2358 kgs
Load Limit Dual 4576 lbs / 2075 kgs
Load Limit Triple 4264 lbs / 1934 kgs
Max PSI 23
