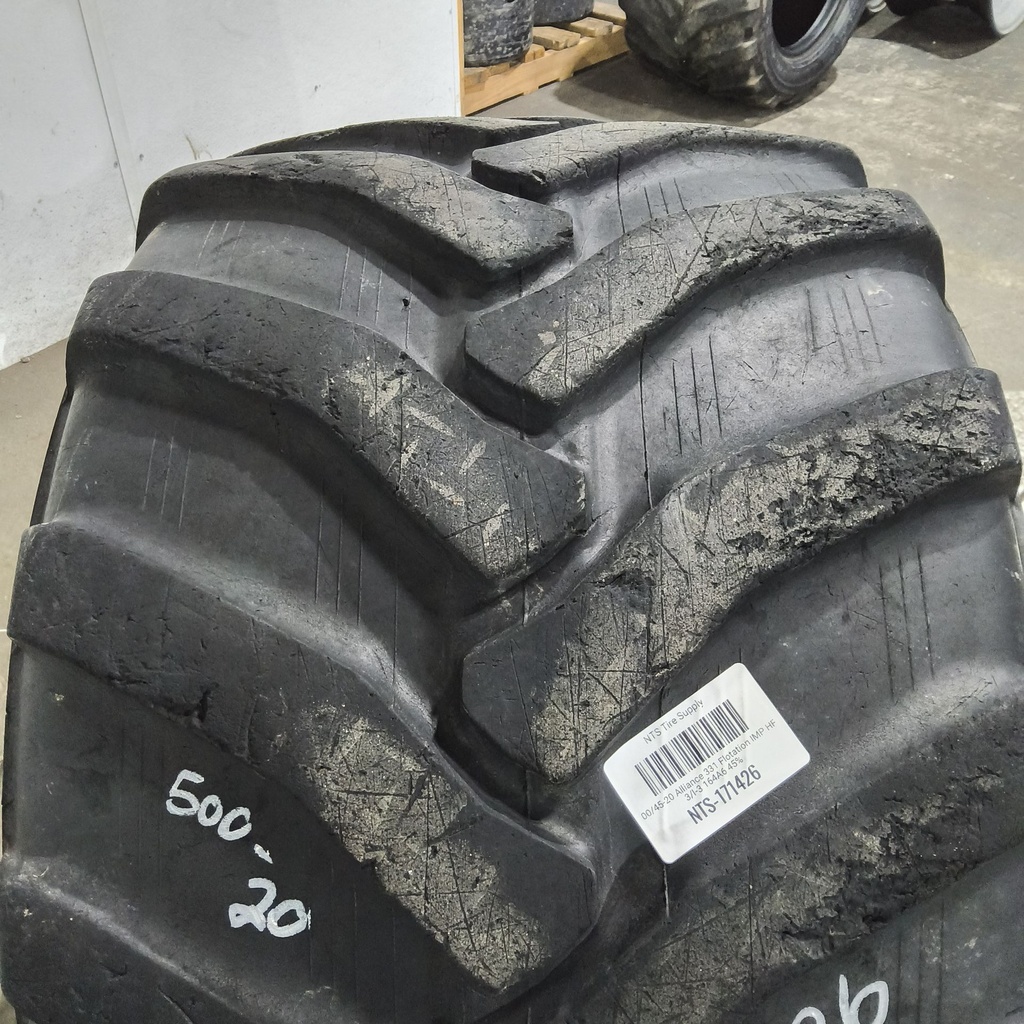

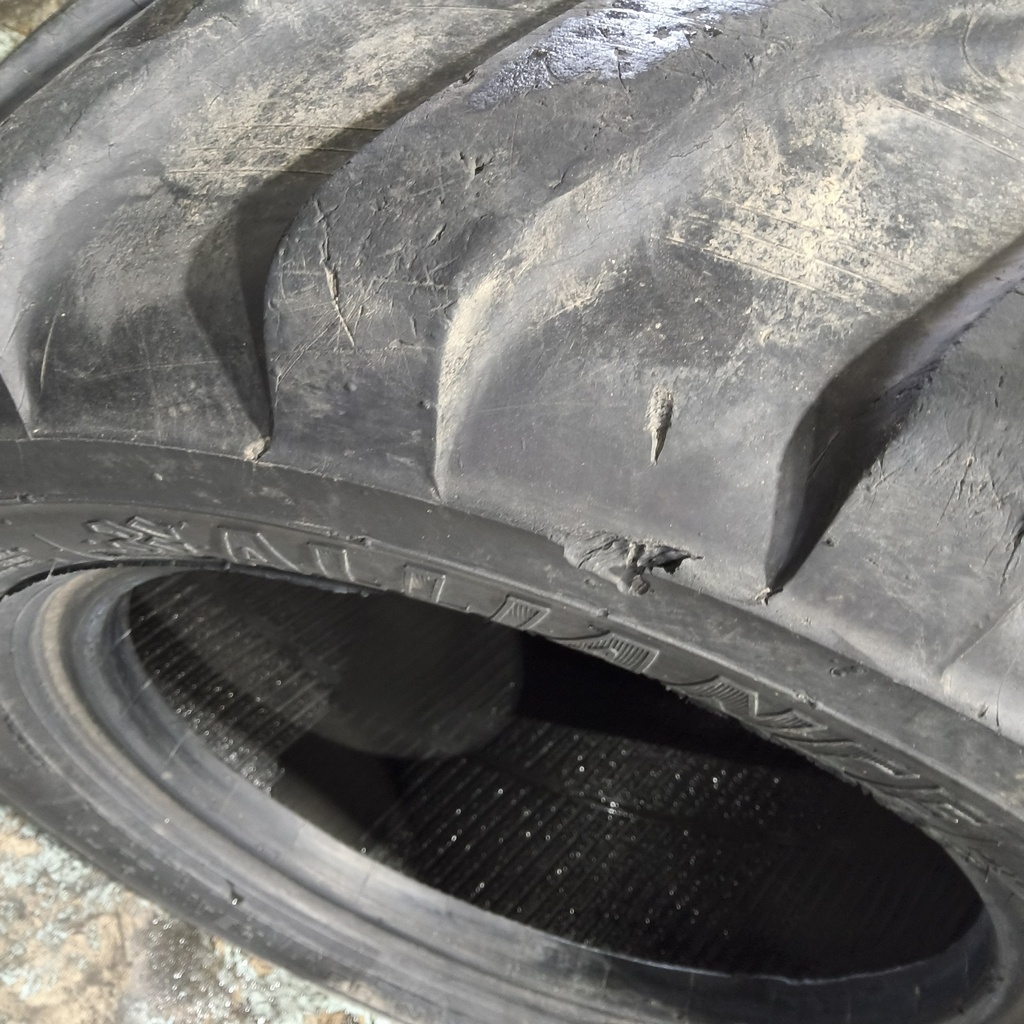

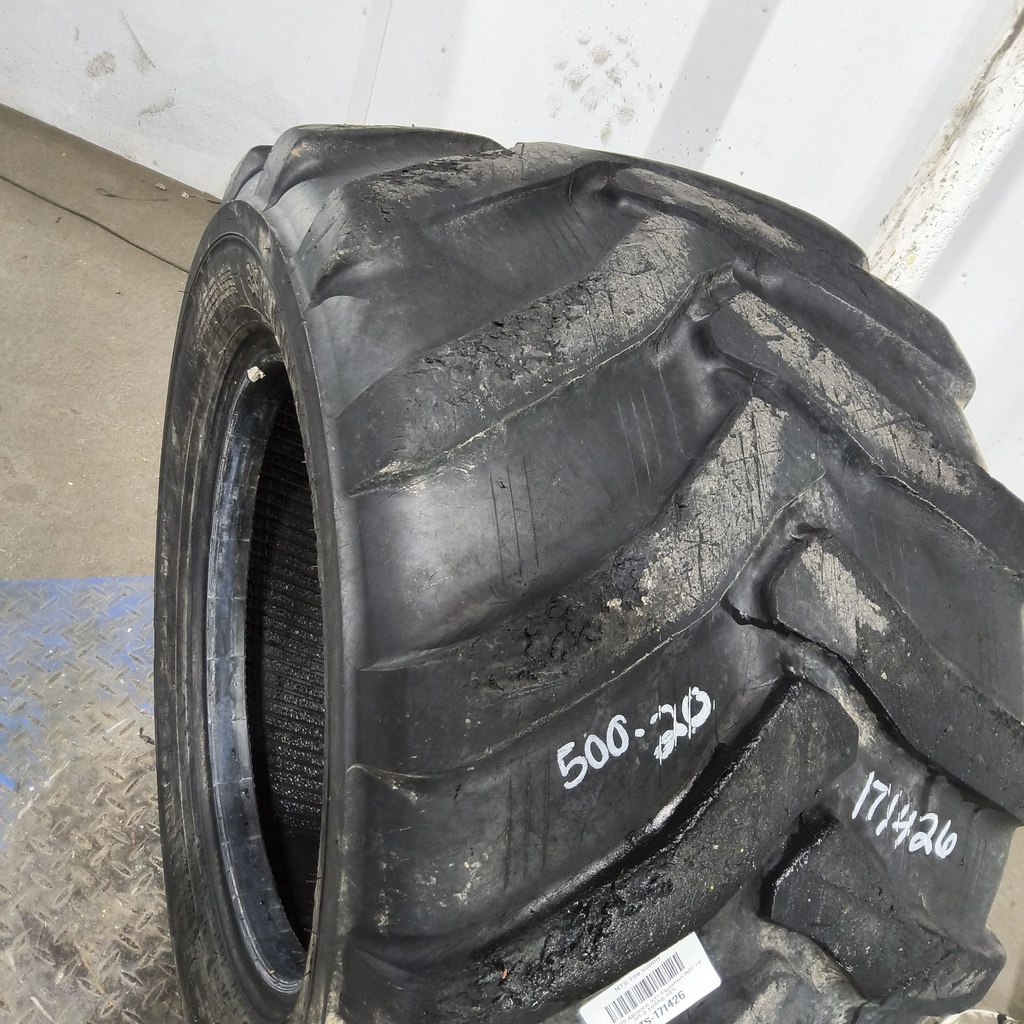

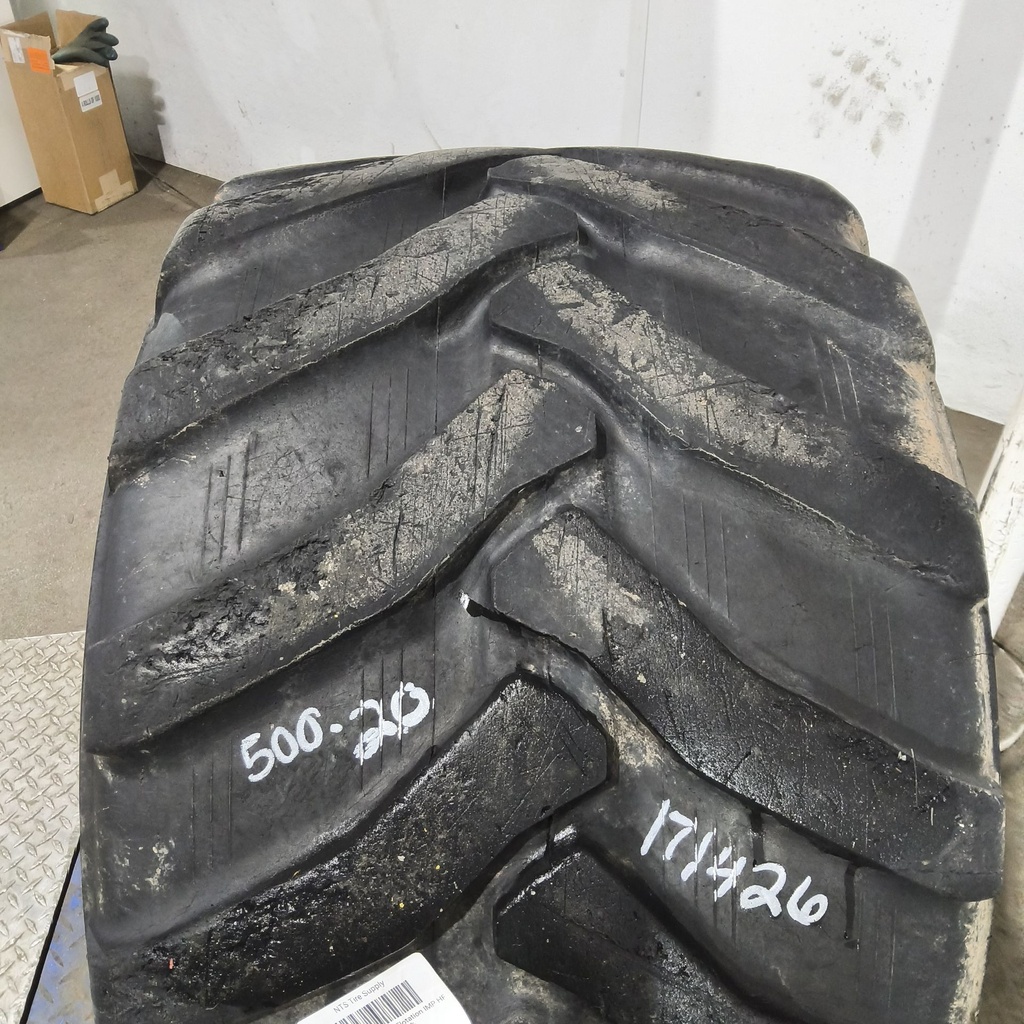

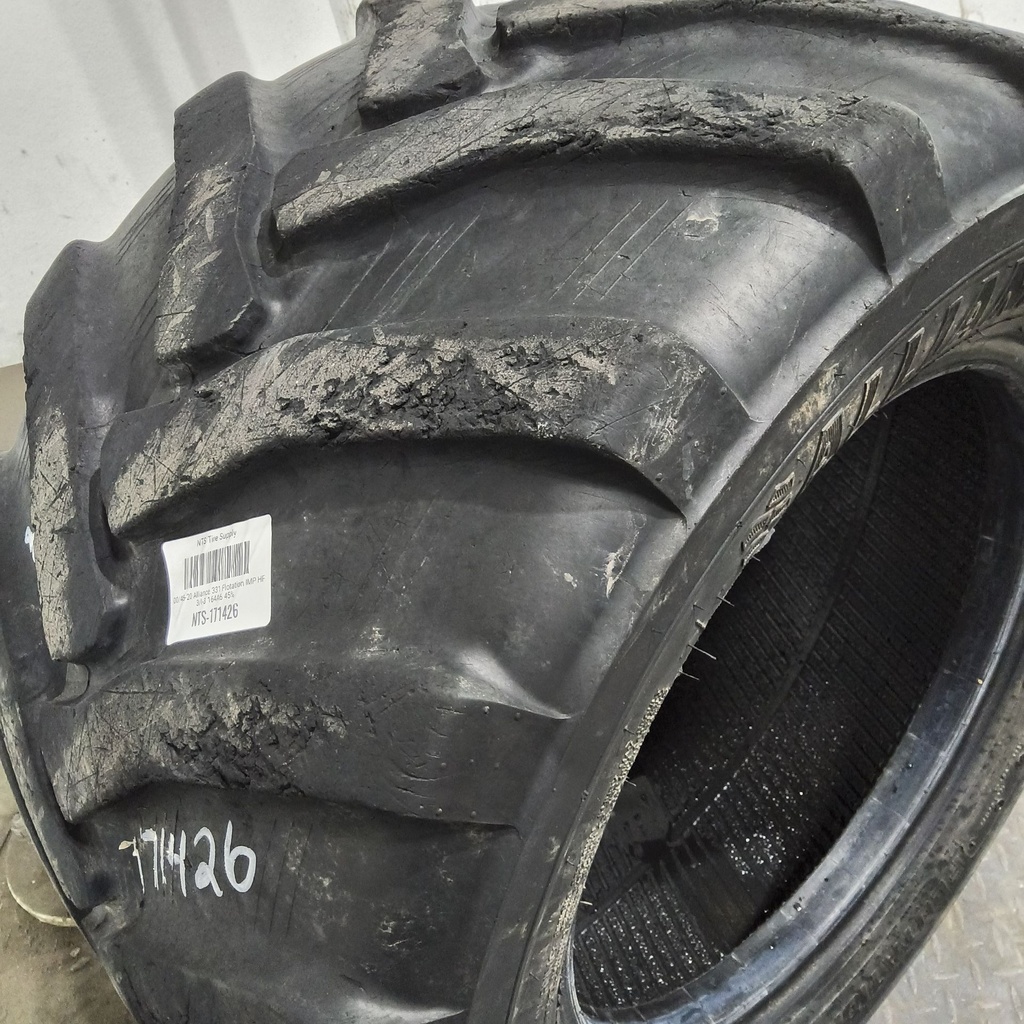

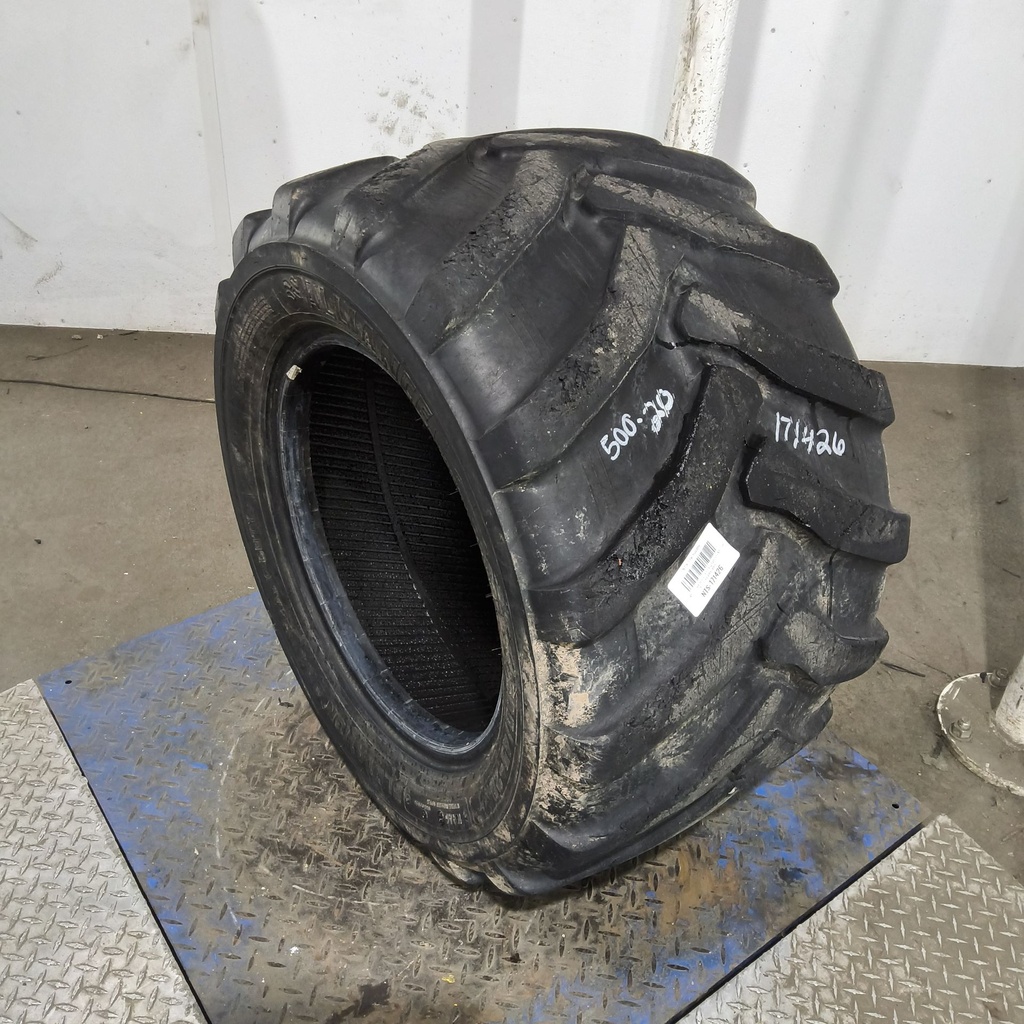

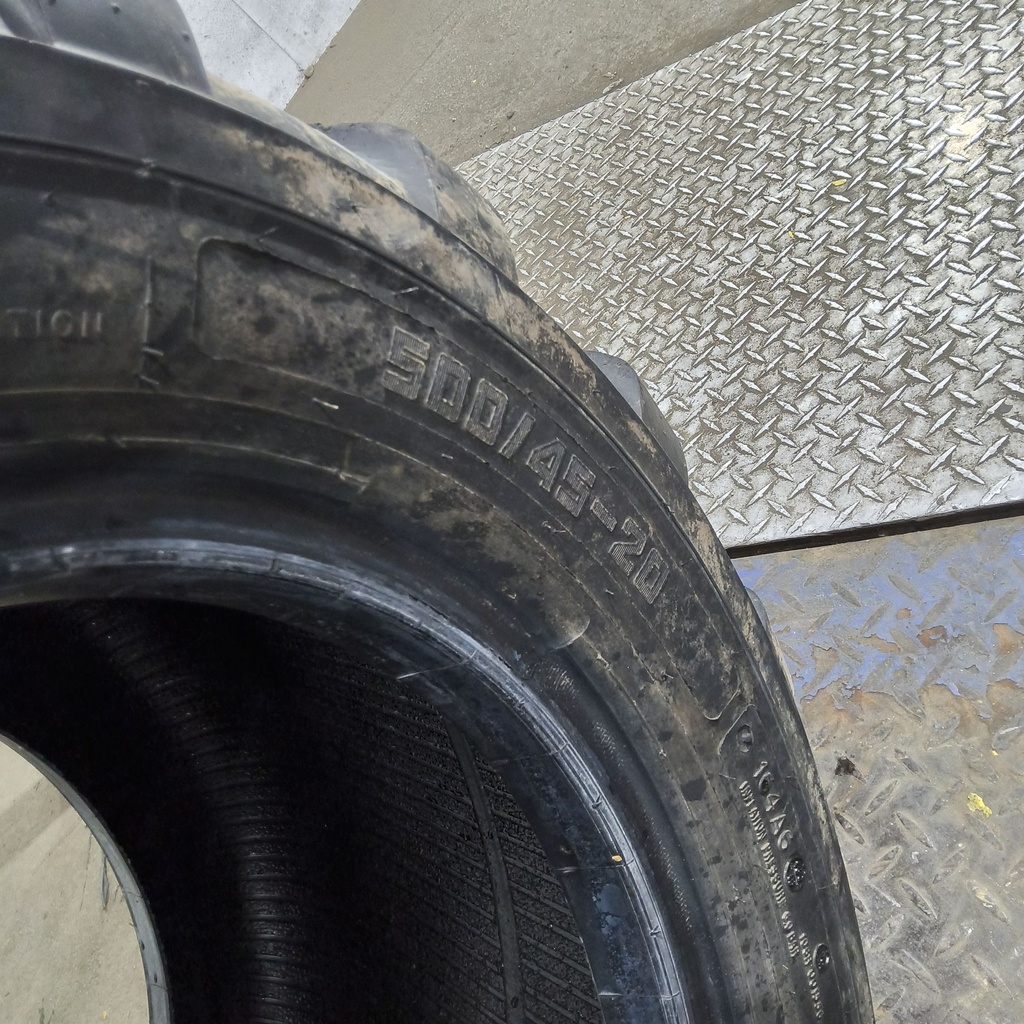

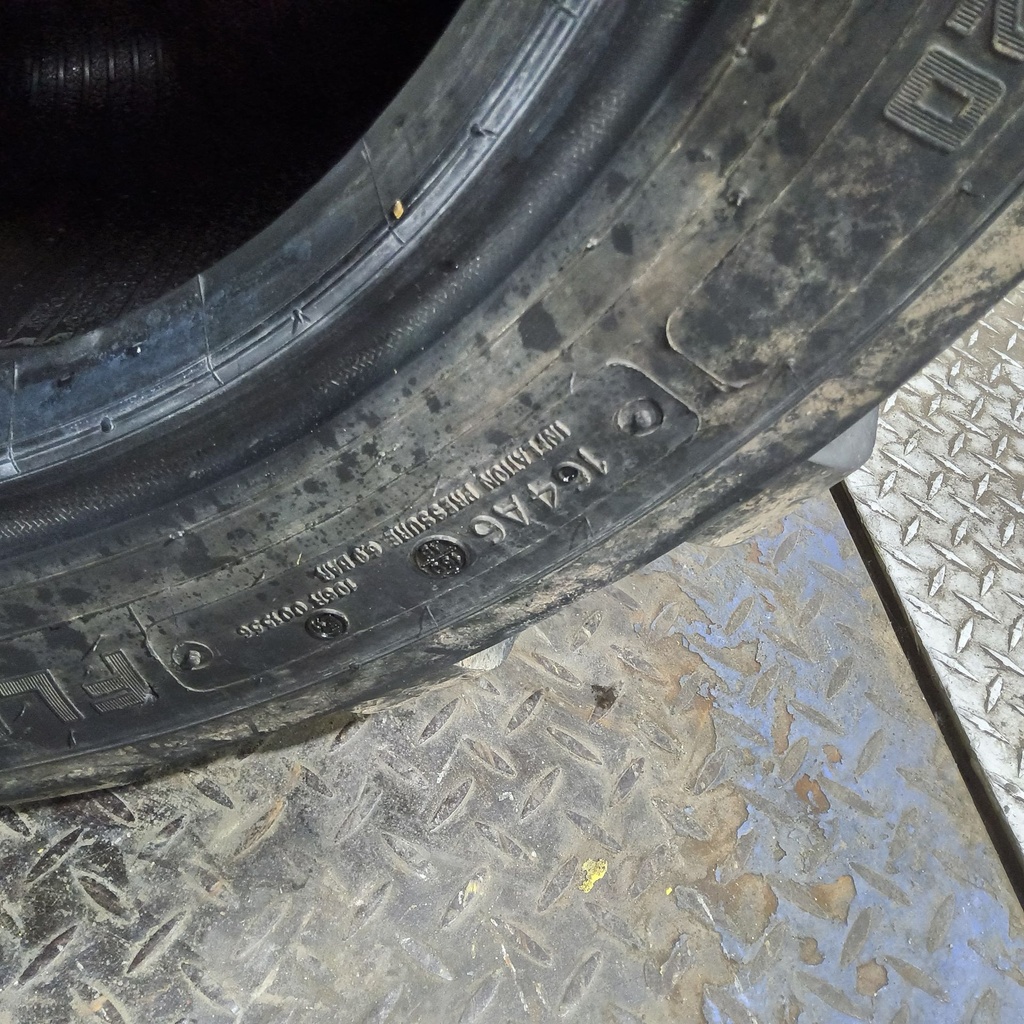

500/45-20 Alliance 331 Flotation IMP HF-3/I-3 164A6 45%

Stock Number: NTS-171426
USED TIRE

$ 200.00 $ 200.00

/ea
Add to cart
Contact Us
Availability
3 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade C

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Tread Depth Remaining 45%
Chips/Chunking/Cuts Moderate
Road Wear Moderate
Weathering/Dry Rot
Stubble Moderate
Bead Damage/Bent/Chipped
Blistering-SW/Liner or Face
Casing Cracks
Repairs Completed None
Warranty 2 Year Black Gold Warranty
Mfg Date Code 2021
Required Product None
Specifications

Flotation tire Suitable for On- and Off-Road, Agricultural Service on Tractors, Cross Country Vehicles, Trailers and Agricultural Implements. Can Replace Conventional Tractor tires or Dual Tire System. Can also be used as a Drive Wheel.

  • Strong nylon construction and compounds
  • Traction profile with good self-cleaning properties
  • Long life
  • Good traction, high load capacity, low soil damage and low motion resistance
Stock No. NTS-171426
Brand Alliance
Model/Style 331 Flotation IMP
Tread Style (HF-3) High Flotation Deep Tread, (I-3) Agricultural Implement Traction Tread
Tire Size 500/45-20
Rim Width 16"
Preferred Rim
RCI Group 34 (38.21" - 40.20")
Casing Technology
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TL) Tubeless
Weight 127.0
Diameter 38.6
Width 19.3
Rolling Circumference 114.6
Static Load Radius 17.6
Flat Plate Area 0
Tread Width 0.0
Ply Rating
Load Index/Speed Rating 164A6
Load Limit Single 11000 lbs / 4989 kgs
Load Limit Dual 9680 lbs / 4390 kgs
Load Limit Triple 9020 lbs / 4091 kgs
Max PSI 87
