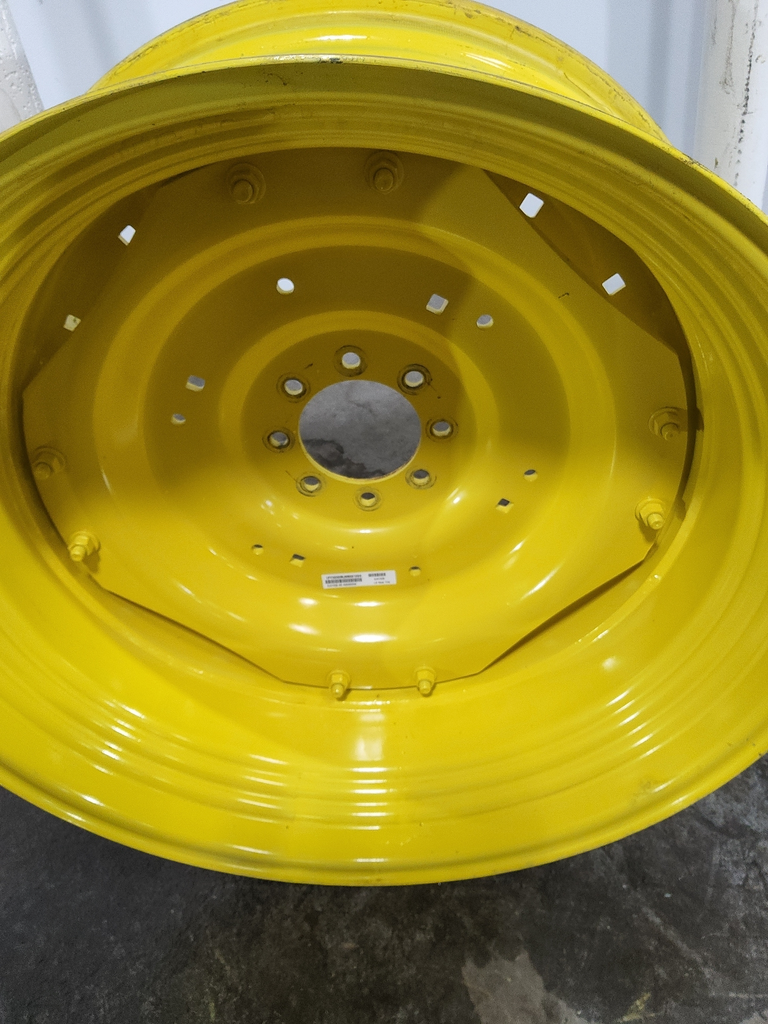

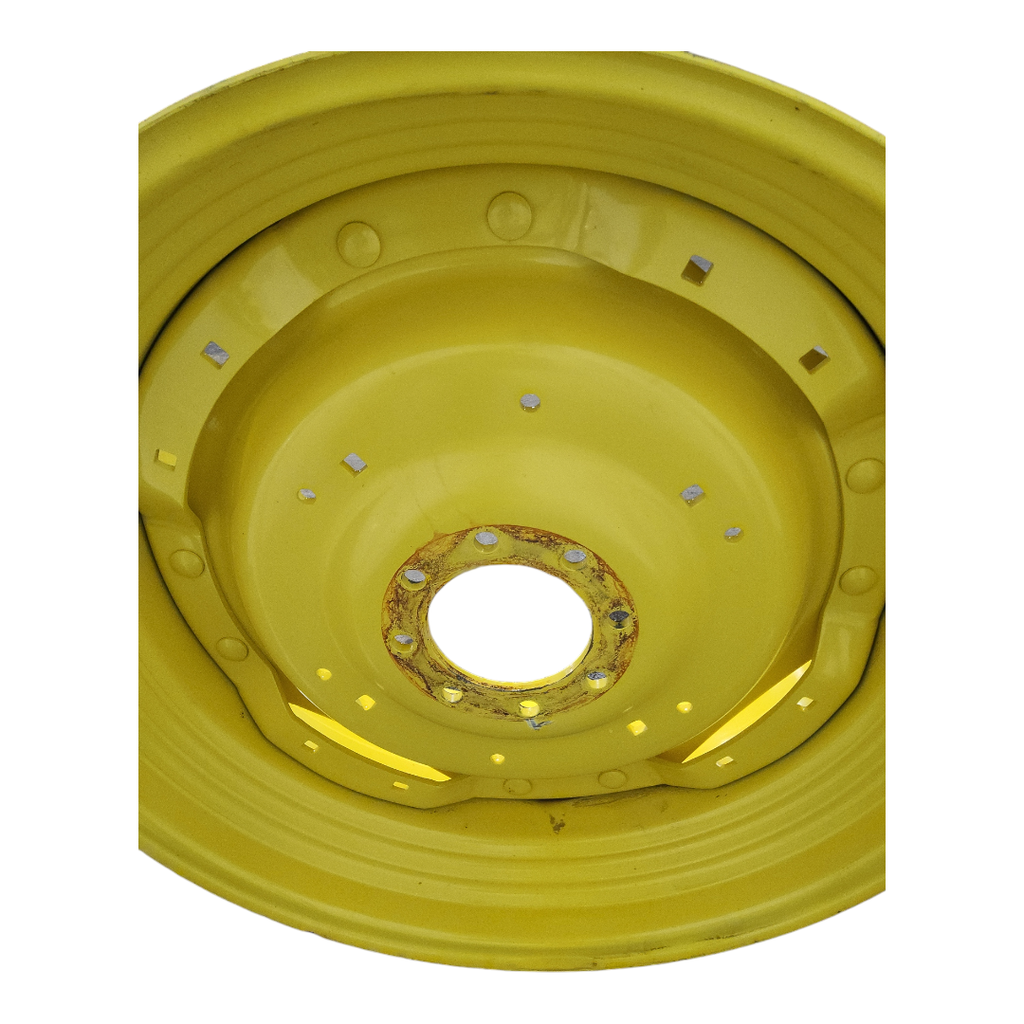

8-Hole Waffle Wheel (Groups of 2 bolts) Center for 34" Rim, John Deere Yellow
Availability
2
Available for pickup
now at
Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition | B |
Specifications
| Stock No. | T014822CTR |
| Brand | |
| Model/Style | Waffle Wheel (Groups of 2 bolts) |
| Rim Diameter | 34" |
| Paint Color | John Deere Yellow |
| Weight Holes | No |
| Grab Hole | No |
| Weight | 97.5 |
| Diameter | 31.5 |
| Disc Thickness | 0.5 |
| Disc Offset | 0.0 |
| Flat Area Diameter | 0.0 |
| Bolt Hole Quantity | 8 |
| Bolt Circle Diameter | 8.0 |
| Bolt Hole Size | 18MM-20MM Bolt |
| Actual Bolt Hole Size | 0.813 |
| Pilot Hole | 6.0 |
| Bolt Countersink | |
| Outside Bolt Hole Quantity | 8 |
| Outside Bolt Circle Diameter | 26.75 |
| Outside Bolt Hole Size | 16MM(5/8") Stud |
| Outside Actual Bolt Hole Size | 0.688 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Bar Axle | No |
