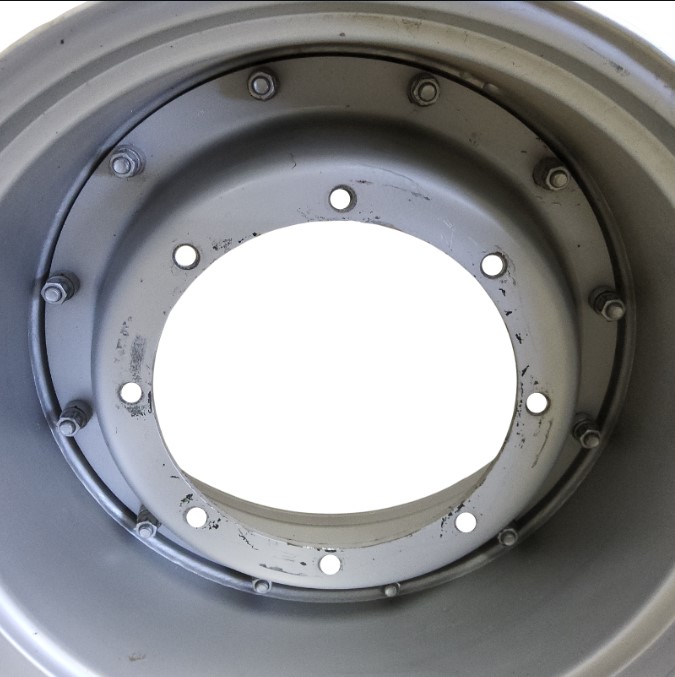

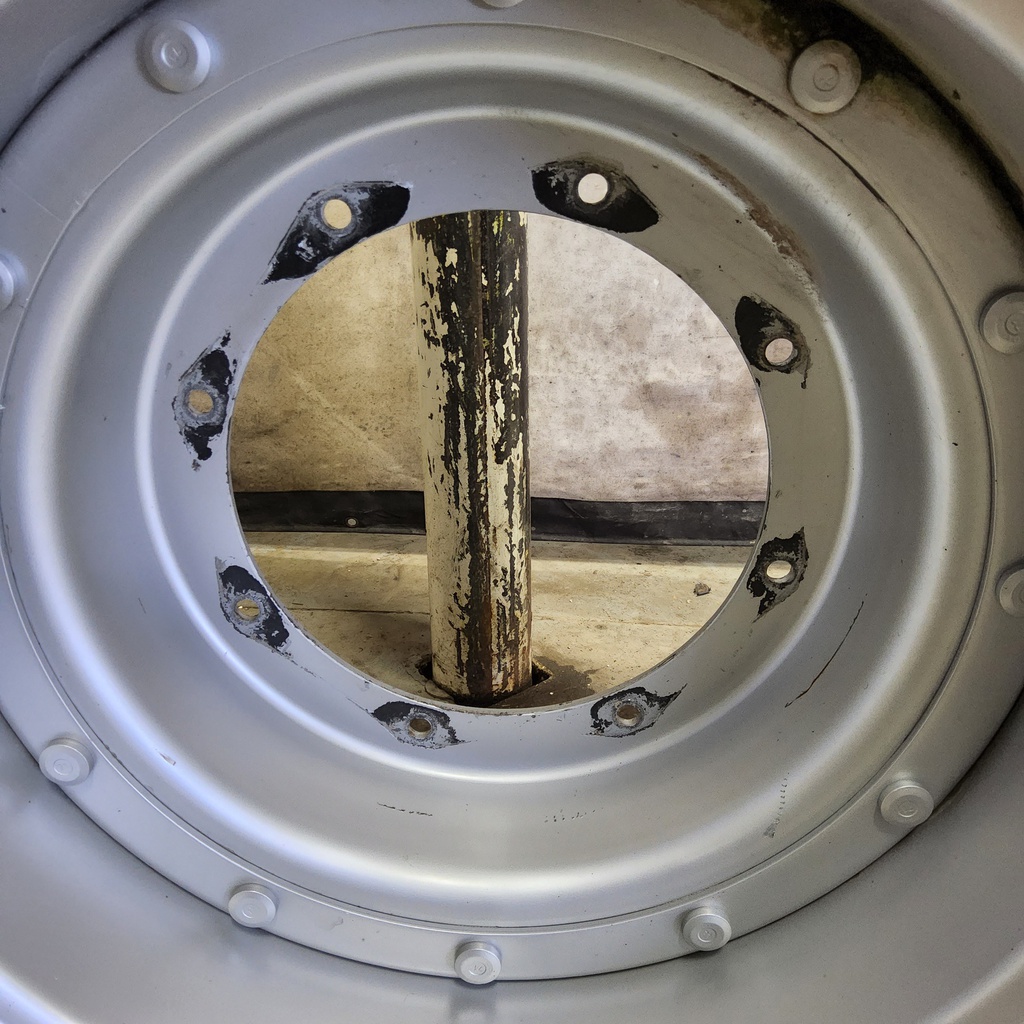

8-Hole Stub Disc Center for 28"-34" Rim, Case IH Silver Mist
Stock Number:
T013404CTR
USED
WHEEL CENTER
Availability
2
Available for pickup
now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition |
Grade
B
GRADE ATires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.NOTE: Tread remaining does not affect the product’s Condition grade. Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.
GRADE BTire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.
GRADE CTire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs. |
Specifications
| Stock No. | T013404CTR |
| Brand | |
| Model/Style | Stub Disc |
| Rim Diameter | 28", 34" |
| Paint Color | Case IH Silver Mist |
| Weight Holes | No |
| Grab Hole | No |
| Weight | 50.0 |
| Diameter | 30.5 |
| Disc Thickness | 0.375 |
| Disc Offset | 0.0 |
| Flat Area Diameter | 0.0 |
| Bolt Hole Quantity | 8 |
| Bolt Circle Diameter | 15.944 |
| Bolt Hole Size | 16MM(5/8") Stud |
| Actual Bolt Hole Size | 0.688 |
| Pilot Hole | 14.271 |
| Bolt Countersink | |
| Outside Bolt Hole Quantity | 12 |
| Outside Bolt Circle Diameter | 23.819 |
| Outside Bolt Hole Size | 18MM-20MM Bolt |
| Outside Actual Bolt Hole Size | 0.813 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Bar Axle | No |
