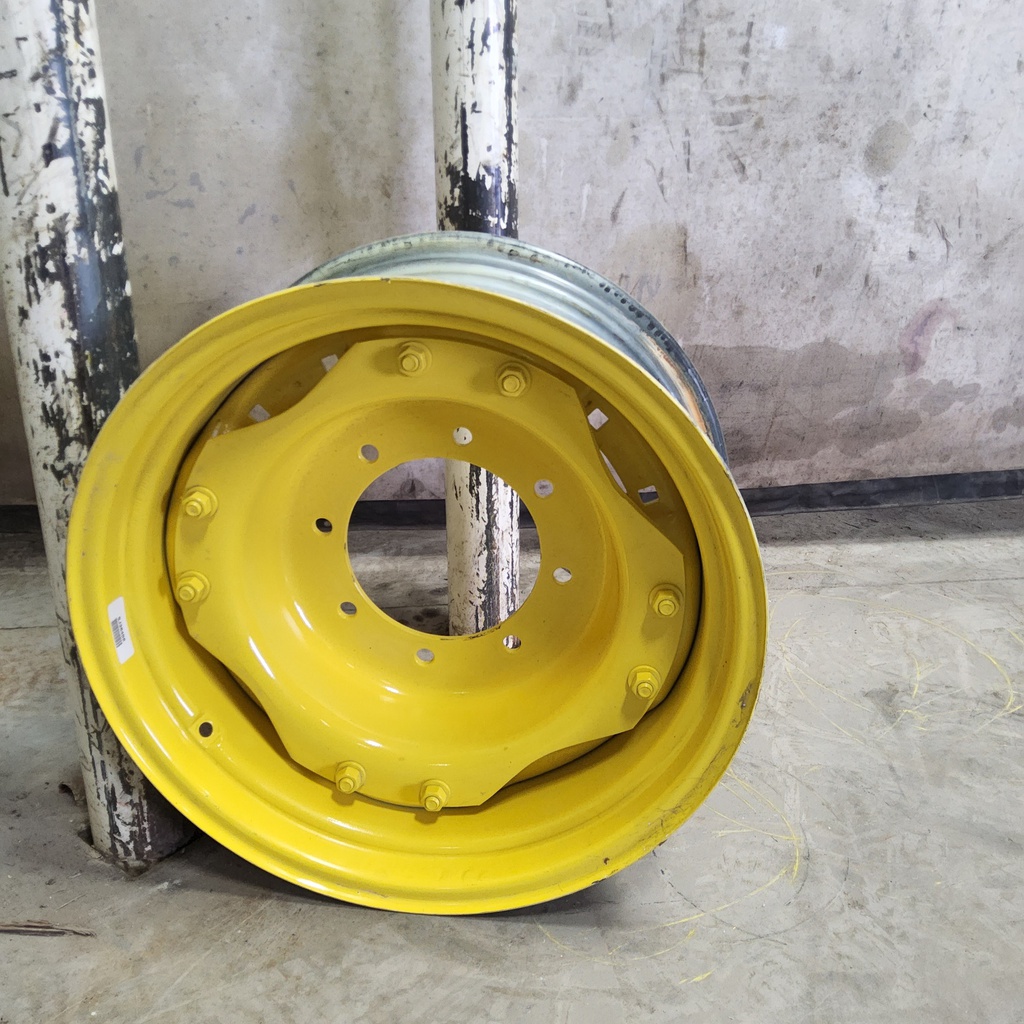

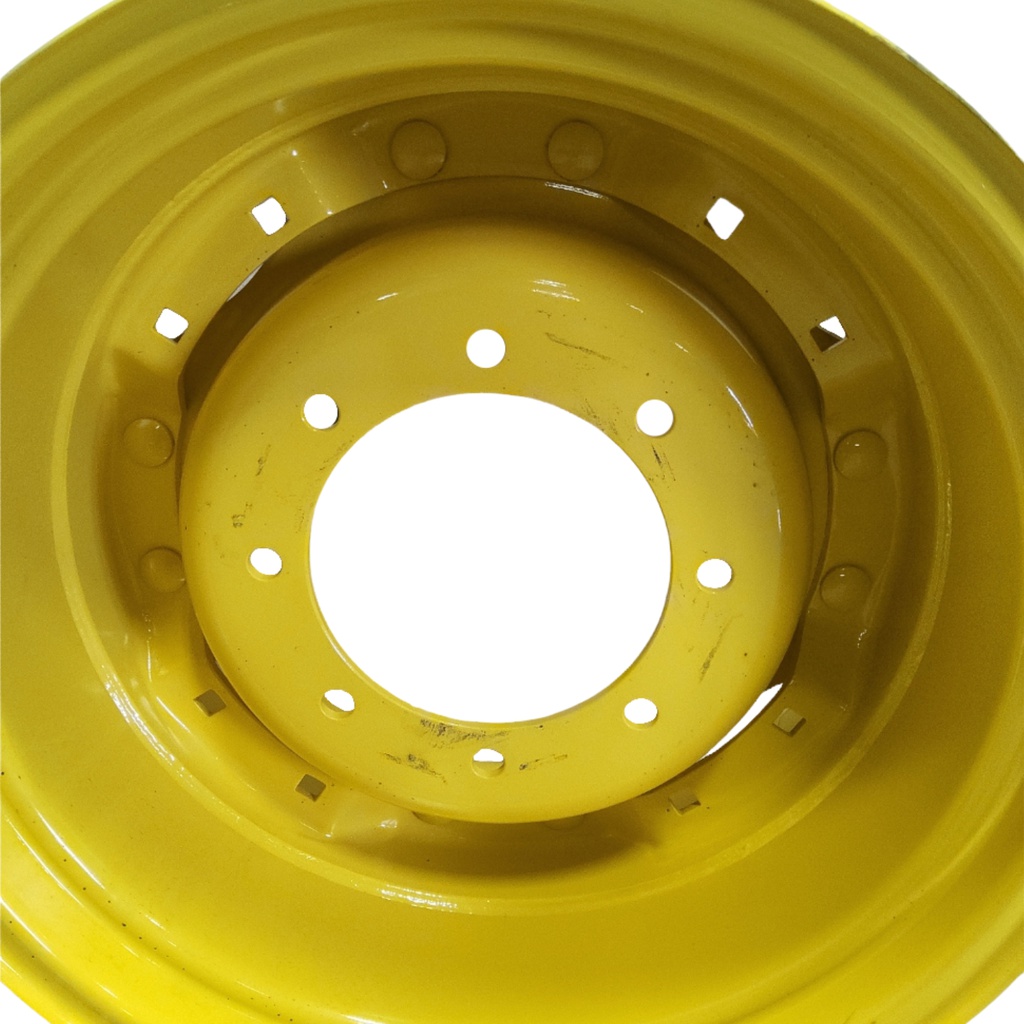

8-Hole Waffle Wheel (Groups of 2 bolts) Center for 24" Rim, John Deere Yellow
Stock Number:
T013014CTR
NEW_TAKEOFF
WHEEL CENTER
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition |
Grade
A
GRADE ATires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.NOTE: Tread remaining does not affect the product’s Condition grade. Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.
GRADE BTire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.
GRADE CTire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs. |
Specifications
| Stock No. | T013014CTR |
| Brand | |
| Model/Style | Waffle Wheel (Groups of 2 bolts) |
| Rim Diameter | 24" |
| Paint Color | John Deere Yellow |
| Weight Holes | No |
| Grab Hole | No |
| Weight | 51.0 |
| Diameter | 20.63 |
| Disc Thickness | 0.375 |
| Disc Offset | 0.0 |
| Flat Area Diameter | 0.0 |
| Bolt Hole Quantity | 8 |
| Bolt Circle Diameter | 10.83 |
| Bolt Hole Size | 18MM-20MM Bolt |
| Actual Bolt Hole Size | 0.813 |
| Pilot Hole | 8.75 |
| Bolt Countersink | |
| Outside Bolt Hole Quantity | 8 |
| Outside Bolt Circle Diameter | 19.25 |
| Outside Bolt Hole Size | 16MM(5/8") Stud |
| Outside Actual Bolt Hole Size | 0.688 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Bar Axle | No |
