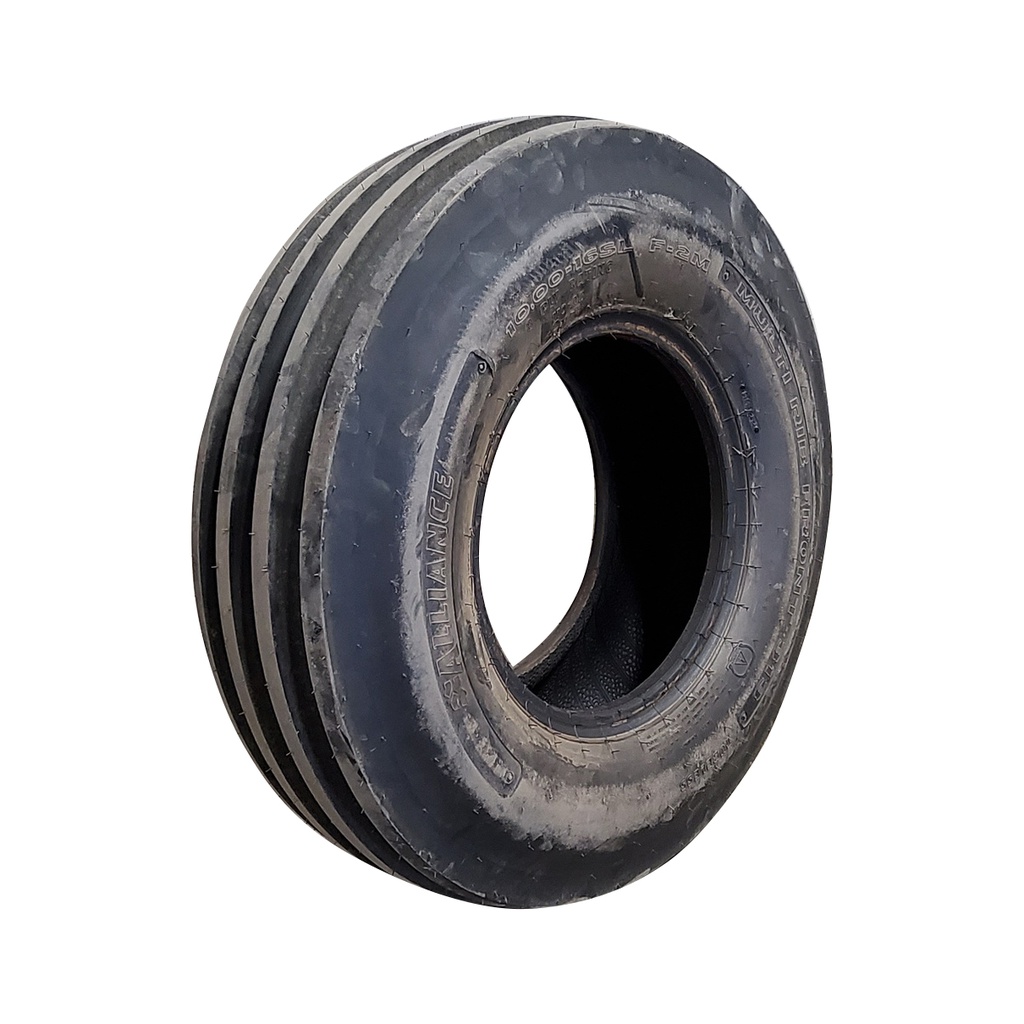

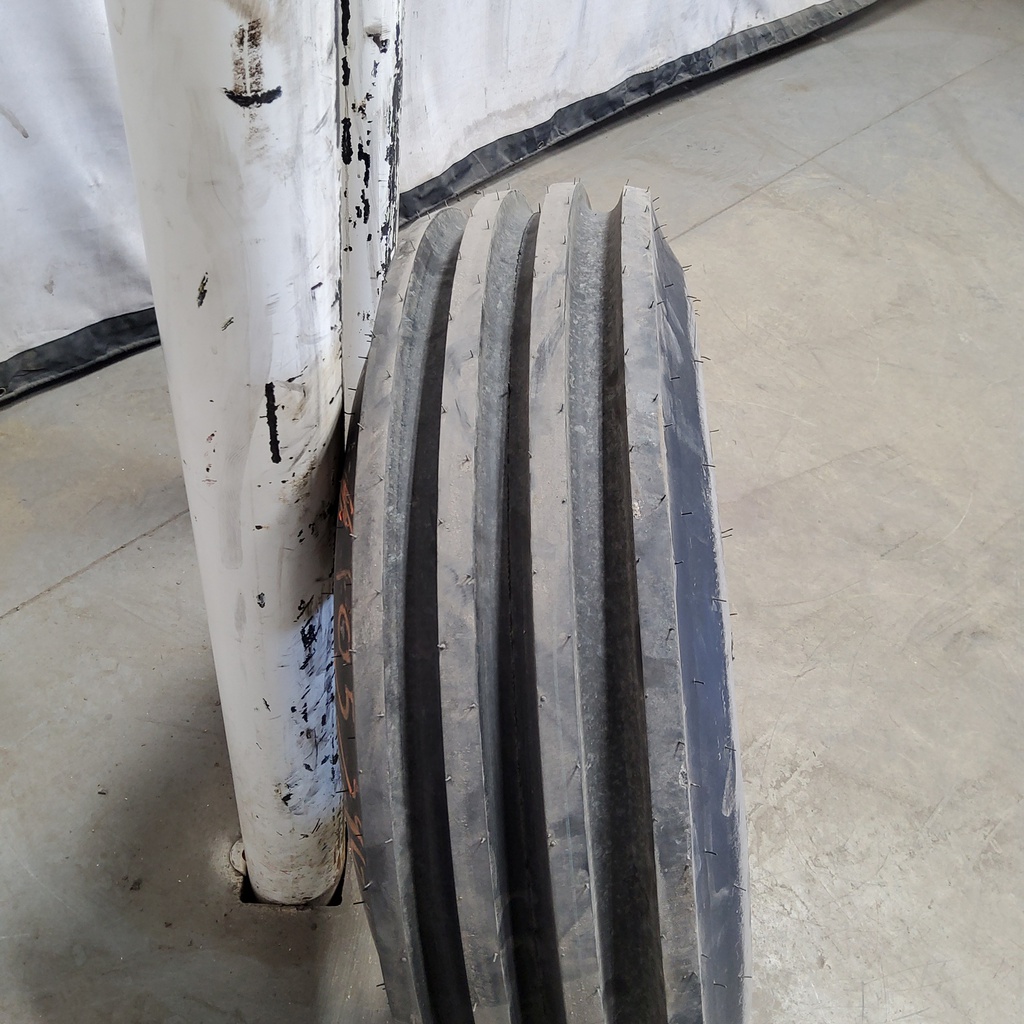

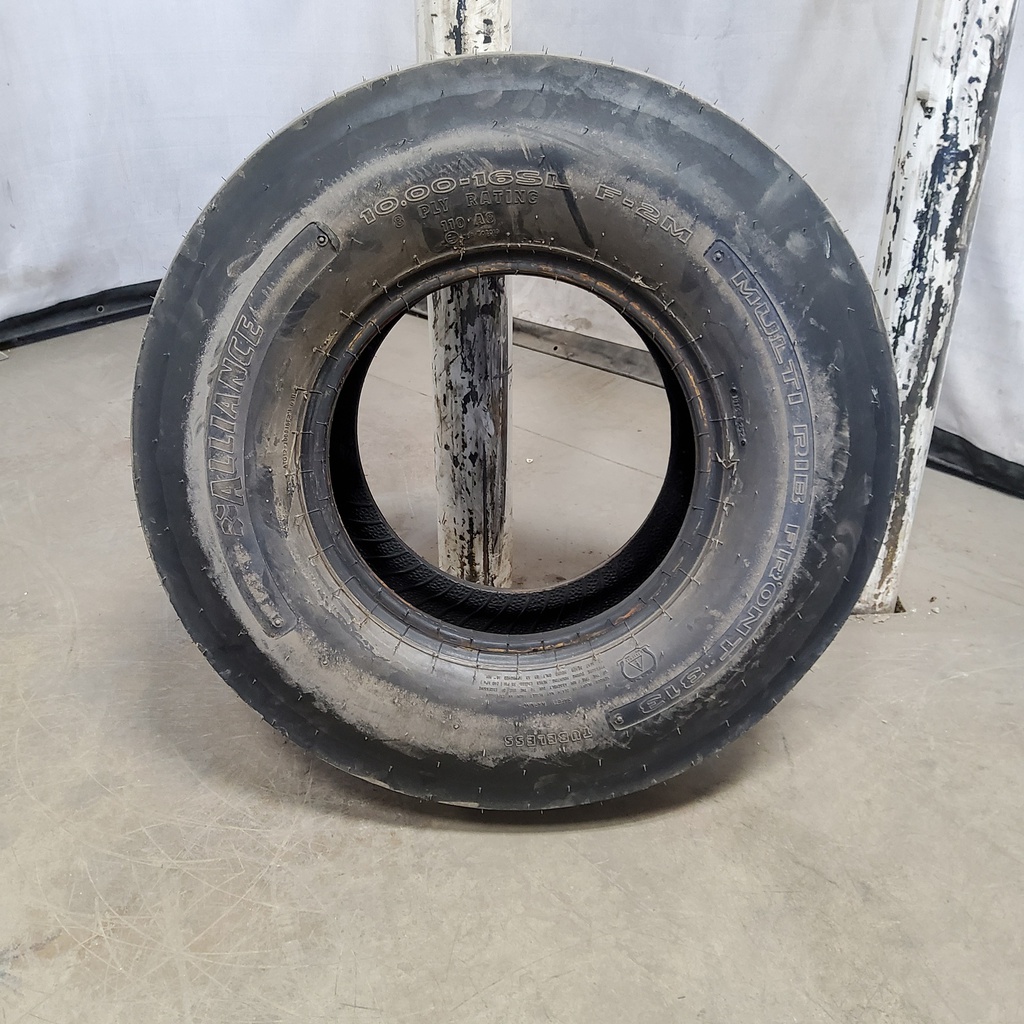

10.00-16 Alliance 313 4-Rib F-2M D (8 Ply), 99%
Stock Number:
RT010217
NEW_TAKEOFF
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition |
Grade
A
GRADE ATires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.NOTE: Tread remaining does not affect the product’s Condition grade. Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.
GRADE BTire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.
GRADE CTire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs. |
| Tread Depth Remaining | 99% |
| Chips/Chunking/Cuts | None |
| Road Wear | None |
| Weathering/Dry Rot | None |
| Stubble | None |
| Bead Damage/Bent/Chipped | None |
| Blistering-SW/Liner or Face | None |
| Casing Cracks | None |
| Repairs Completed | None |
| Warranty | 2 Year Black Gold Warranty |
| Mfg Date Code | 1016 |
| Required Product | None |
Specifications
Agricultural Multi-Rib Multipurpose, Low-Section Steering Wheel tire for Heavy Duty Tractors.
- Strong nylon construction and high grade compounds
- Guarantees long life
- Excellent flotation in the field and high mileage on the road and in industrial applications
| Stock No. | RT010217 |
| Brand | Alliance |
| Model/Style | 313 4-Rib |
| Tread Style | (F-2M) Agricultural Four Rib |
| Tire Size | 10.00-16 |
| Rim Width | 8" |
| Preferred Rim | |
| RCI Group | 32 (34.36" - 36.20") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 59.0 |
| Diameter | 35.1 |
| Width | 11.1 |
| Rolling Circumference | 105.0 |
| Static Load Radius | 15.9 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | D (8 Ply) |
| Load Index/Speed Rating | |
| Load Limit Single | 0 lbs / 0 kgs |
| Load Limit Dual | 0 lbs / 0 kgs |
| Load Limit Triple | 0 lbs / 0 kgs |
| Max PSI | 44 |
