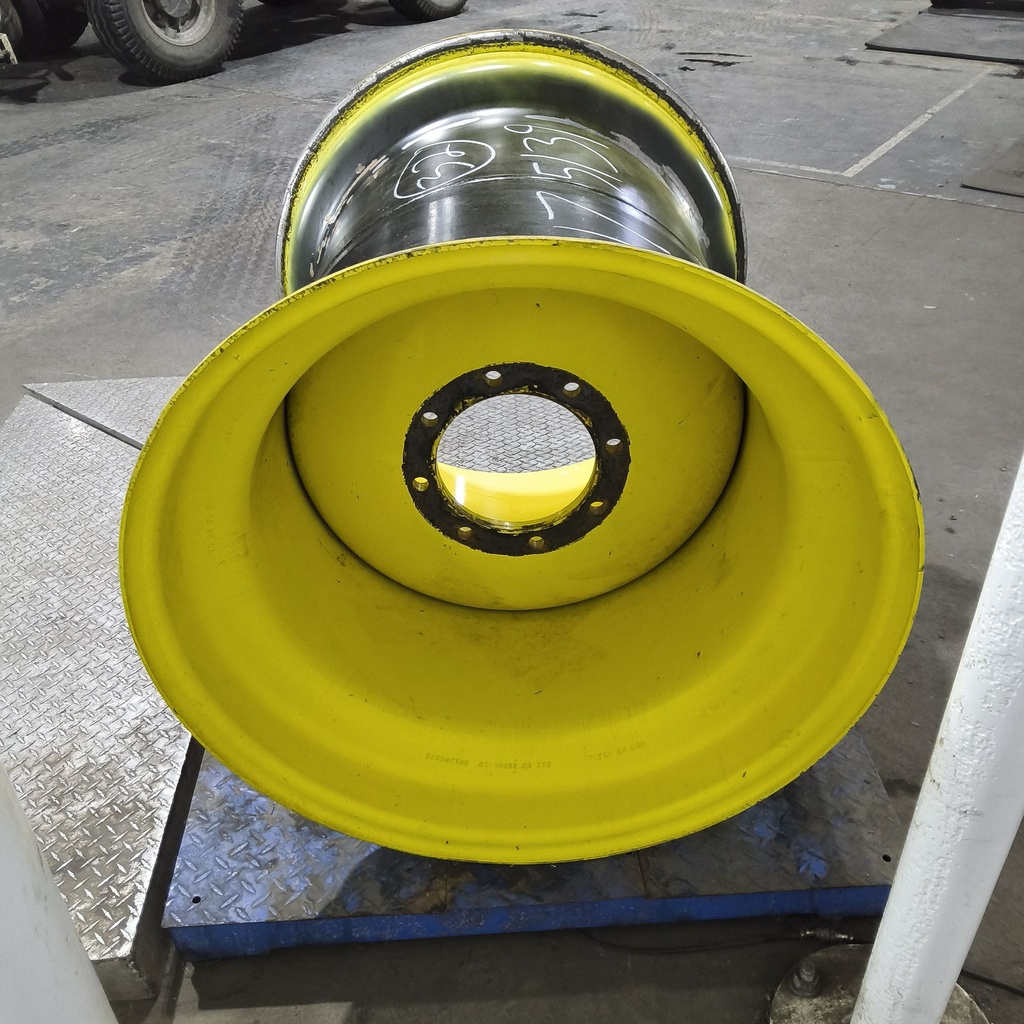

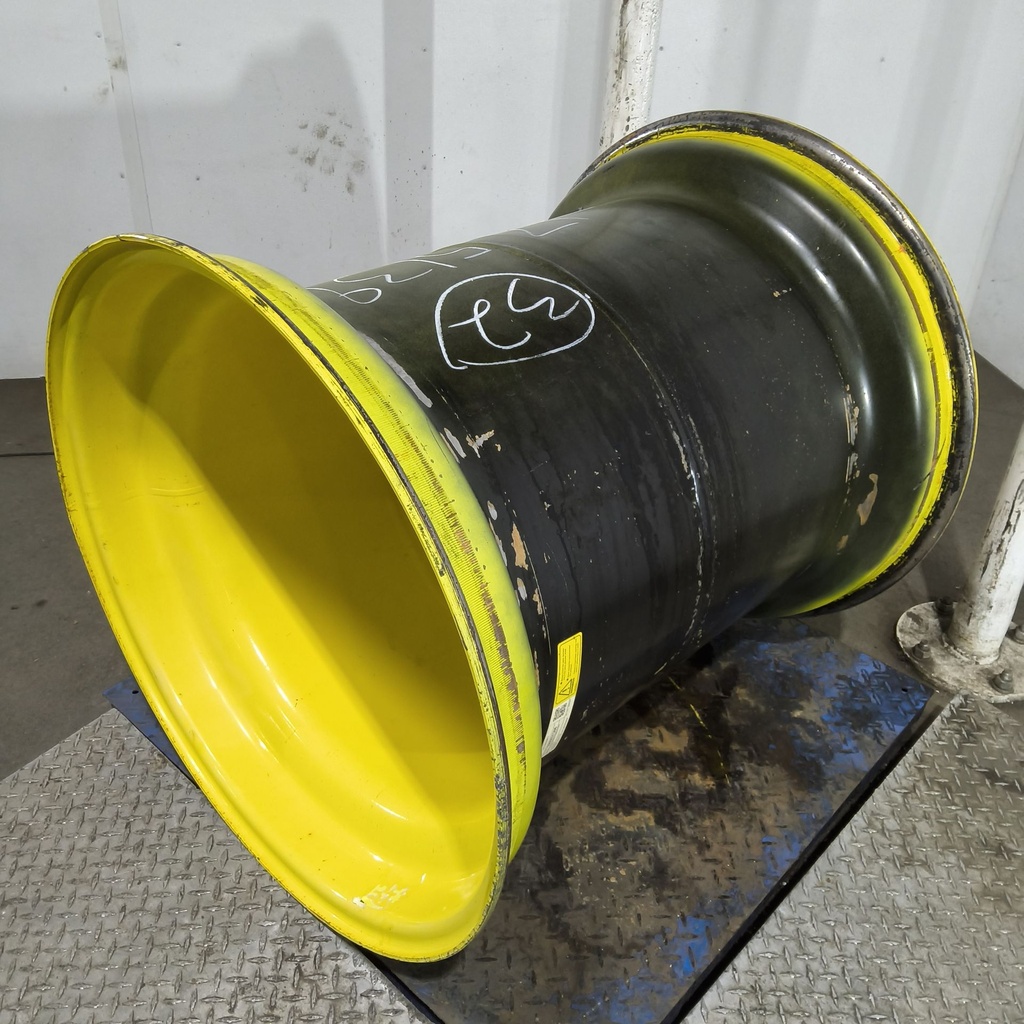

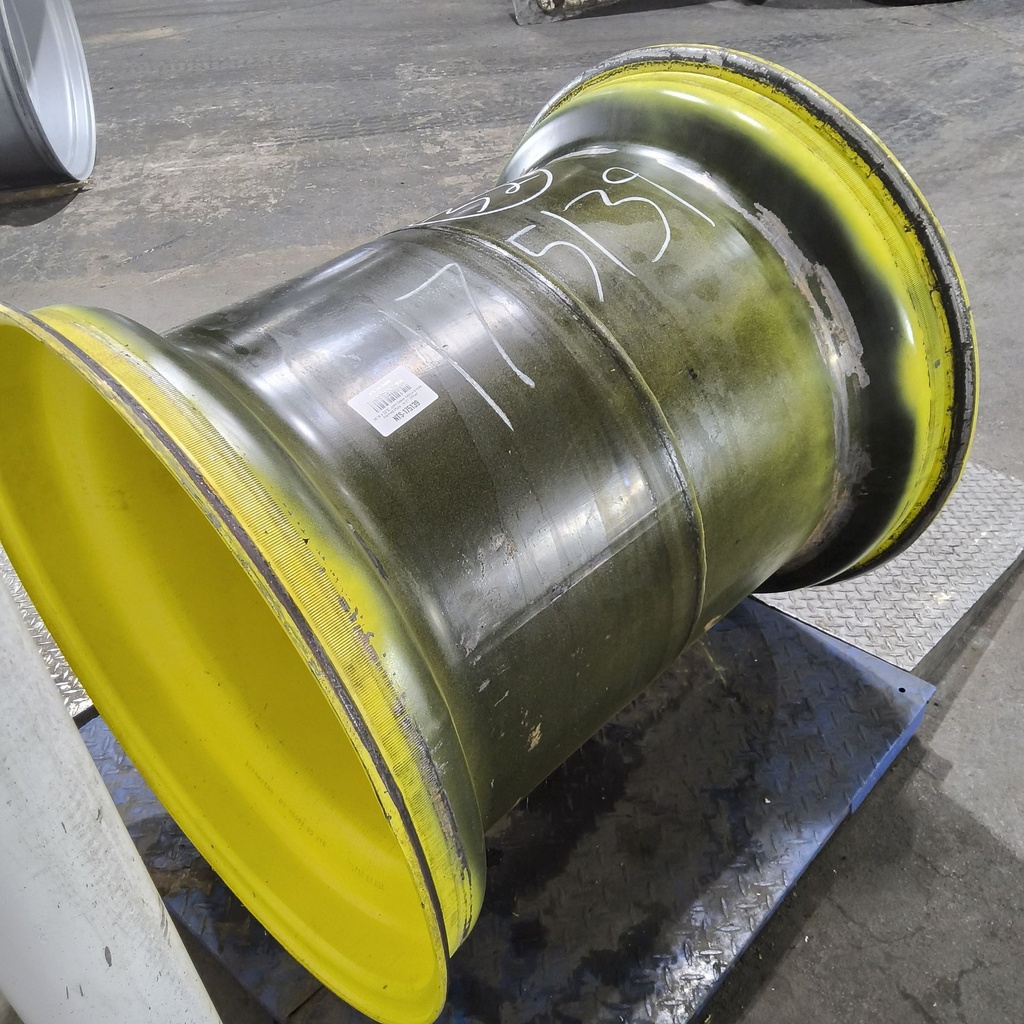

36"W x 32"D, John Deere Yellow 8-Hole Formed Plate , -6.31" Offset

Stock Number: NTS-175139
USED WHEEL

$ 1,200.00 $ 1,200.00

/ea
Add to cart
Contact Us
Availability
2 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade B

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-175139
Brand Wold Wheel
Model/Style Formed Plate
Rim Design
Rim Diameter 32"
Rim Width 36"
Paint Color John Deere Yellow
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location
Weight 520.0
Diameter 34.5
Width 37.875
Disc Thickness 1.0
Wheel Offset -6.313
Rim Backside 12.625
Rim Frontside 24.25
Rim Inside Diameter 0.0
Drop Center Width
Casting Diameter 0.0
Rim Material Thickness 0.312
Valve Hole Diameter
Bolt Hole Quantity 8
Bolt Circle Diameter 10.826
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.938
Pilot Hole 8.72
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
