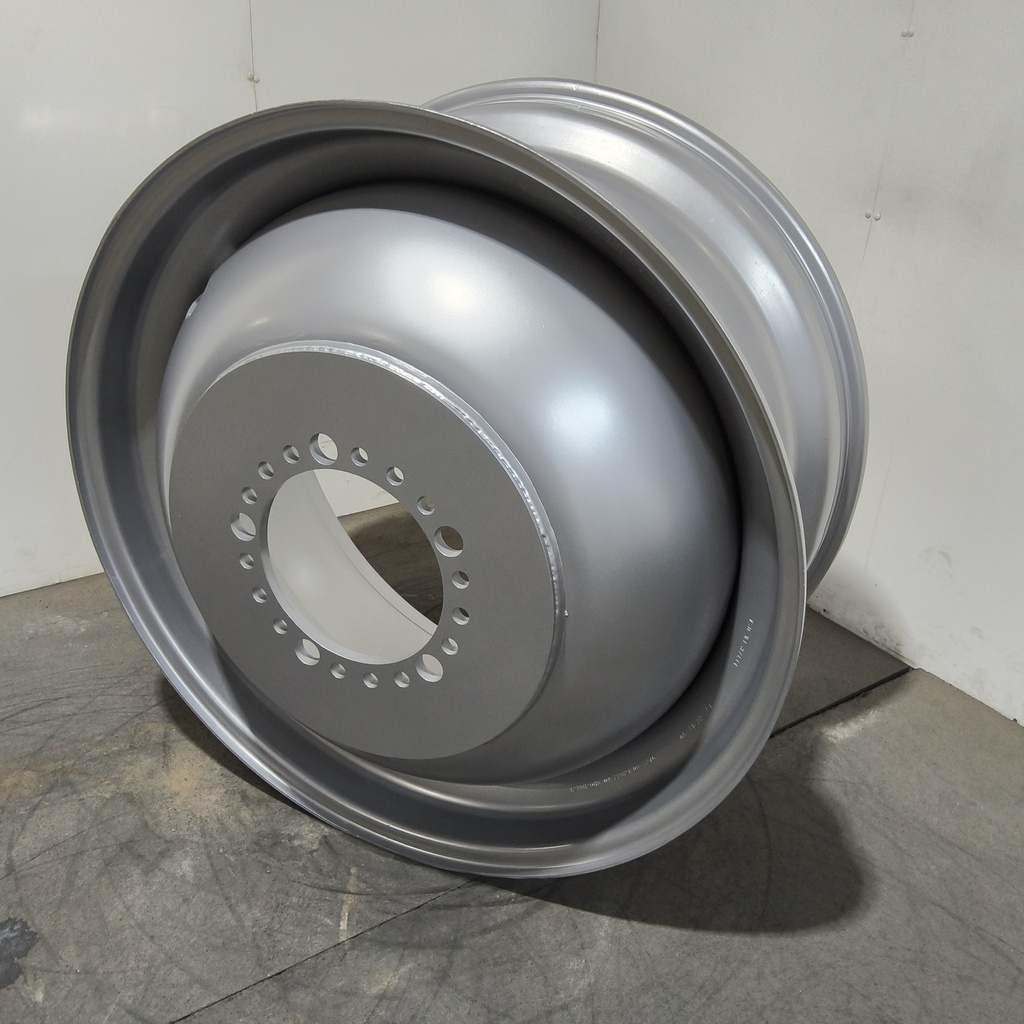

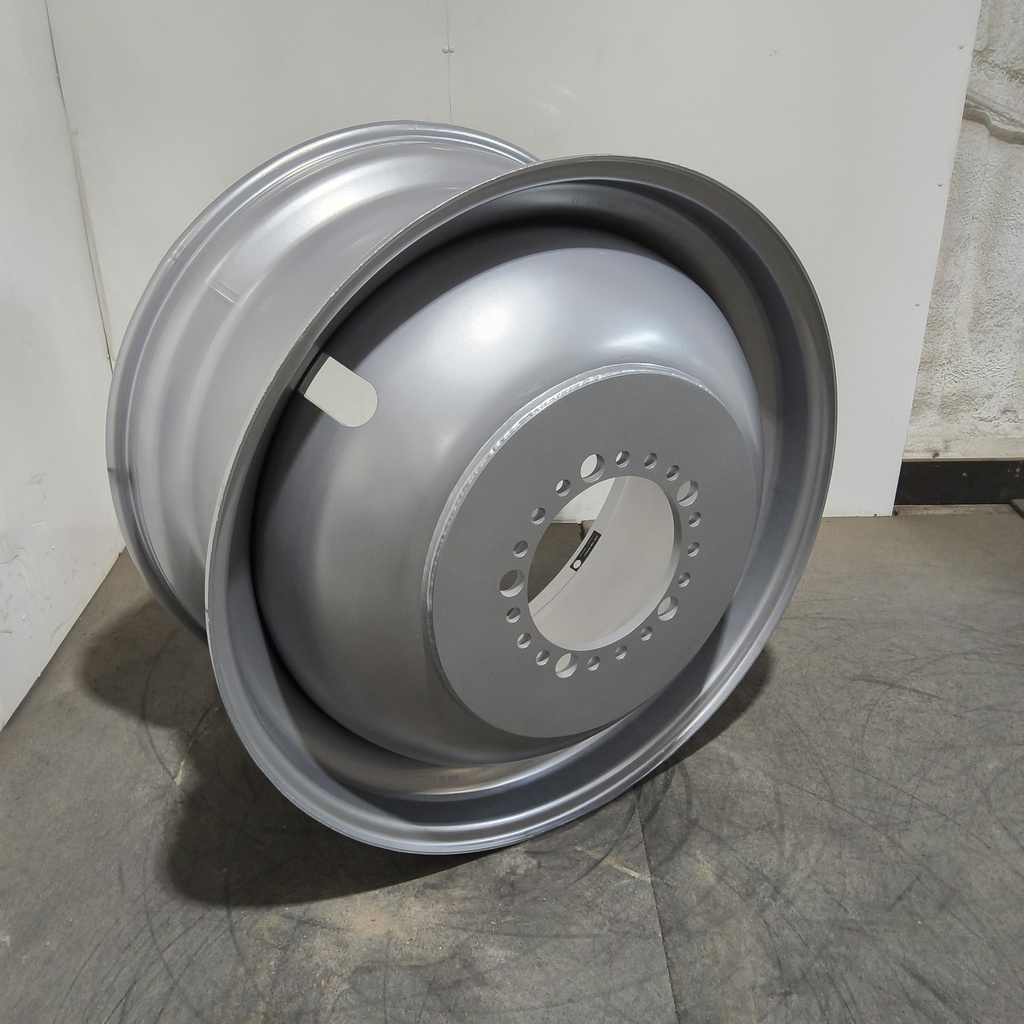

20"W x 42"D, Case IH Silver Mist 20-Hole Dolly Dual , -15" Offset

Stock Number: NTS-173786
REMANUFACTURED WHEEL

Replaced Center with 3/4" Flat Plate
Use Core part # 4218DDCORE
$150 core credit for good cores.
15.00" Offset

$ 2,600.00 $ 2,600.00

/ea
Add to cart
Contact Us
Availability
1 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-173786
Brand NTS Tire Supply
Model/Style Dolly Dual
Rim Design Flat-Base Deep-Drop
Rim Diameter 42"
Rim Width 20"
Paint Color Case IH Silver Mist
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location C - Corner/Angle
Weight 520.0
Diameter 44.5
Width 21.937
Disc Thickness 0.75
Wheel Offset -15.0
Rim Backside -4.031
Rim Frontside 25.218
Rim Inside Diameter 36.0
Drop Center Width 9.75
Casting Diameter 0.0
Rim Material Thickness 0.276
Valve Hole Diameter 5/8"
Bolt Hole Quantity 20
Bolt Circle Diameter 13.187
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.938
Pilot Hole 11.07
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
