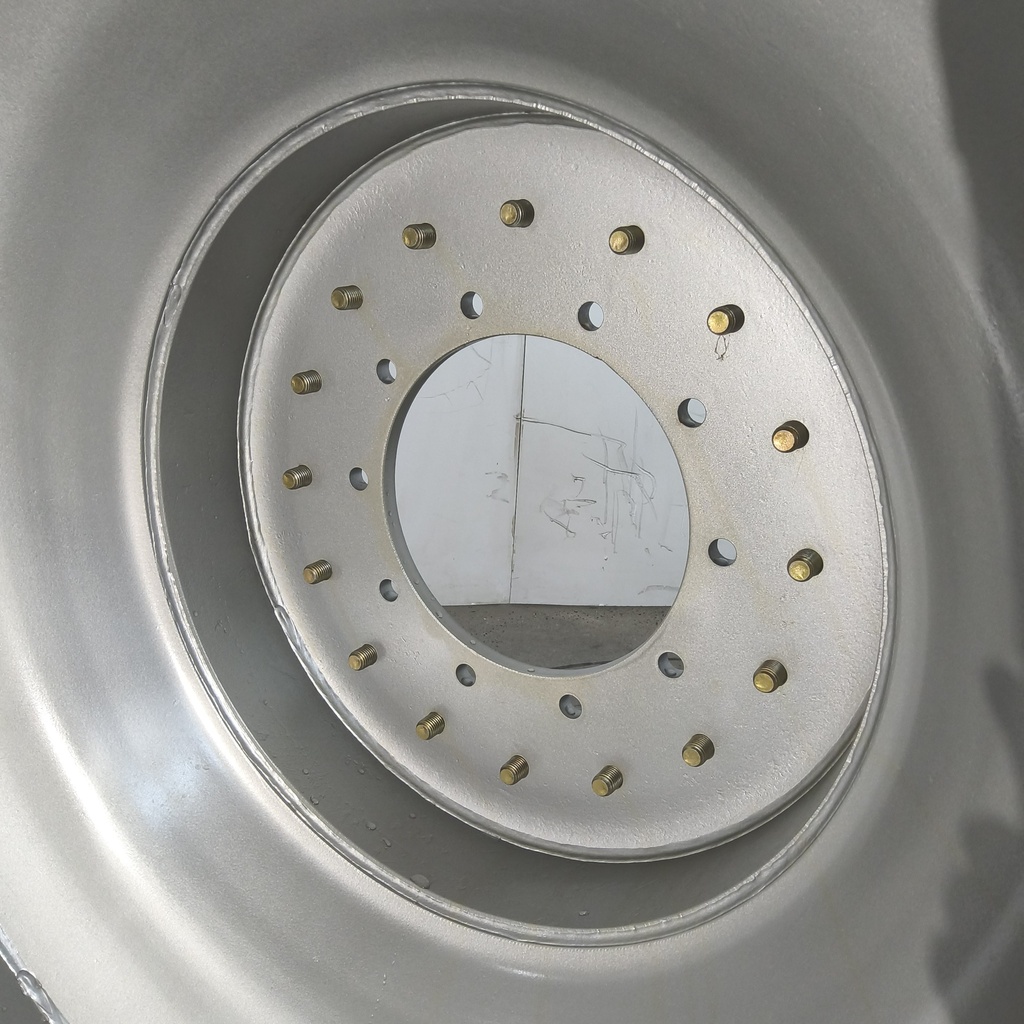

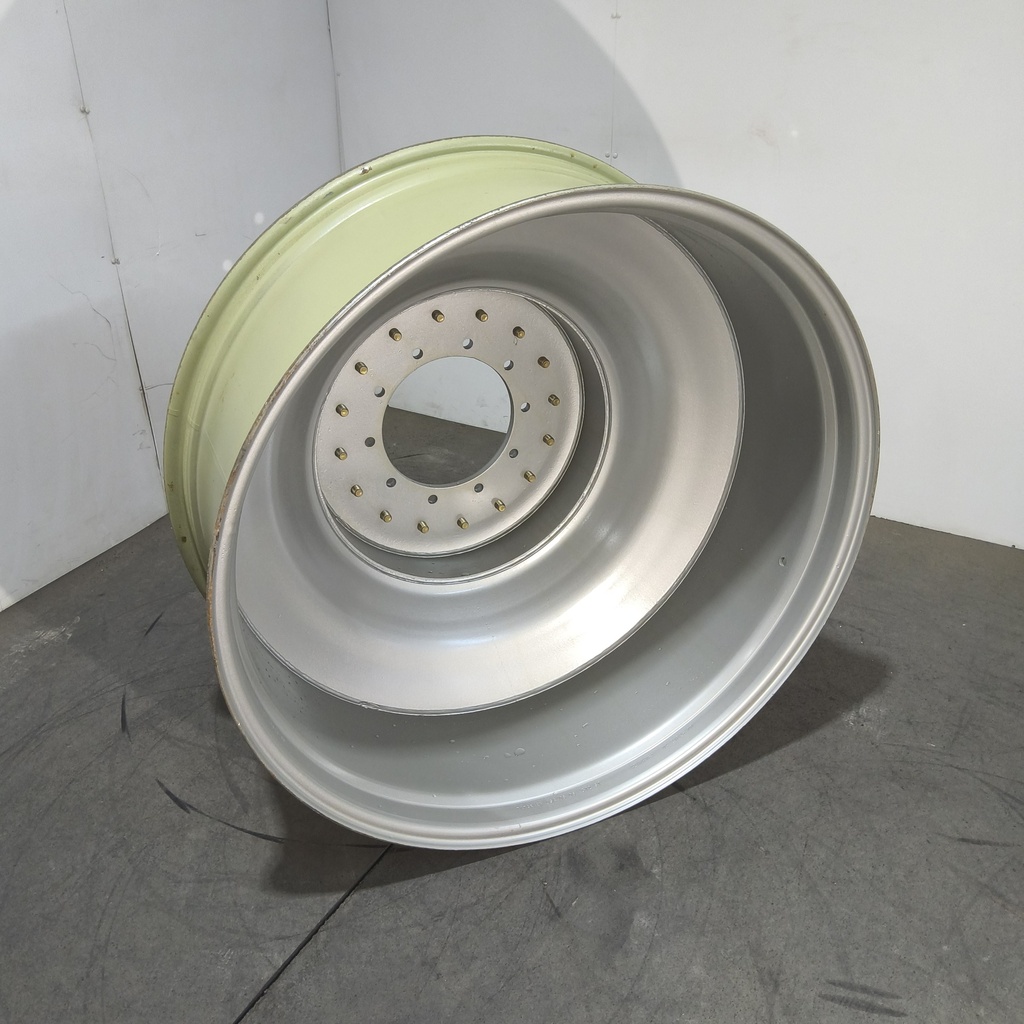

16"W x 42"D, Case IH Silver Mist 10-Hole Straddle Dual - Inside Main , 14.25" Offset

Stock Number: NTS-172790
MANUFACTURED WHEEL

16 x 42 Straddle Dual-Main, 10H, 13.19" BC, .812" BH inside, 16H, 18" BC outside pattern, 3/4" NC, +14.25" offset, Silver mist.

$ 1,500.00 $ 1,500.00

/ea
Add to cart
Contact Us
Availability
2 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade
Specifications
Stock No. NTS-172790
Brand NTS Tire Supply
Model/Style Straddle Dual - Inside Main
Rim Design Flat-Base
Rim Diameter 42"
Rim Width 16"
Paint Color Case IH Silver Mist
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location V - Vertical
Weight 500.0
Diameter 44.5
Width 17.75
Disc Thickness 0.75
Wheel Offset 14.25
Rim Backside 23.125
Rim Frontside -6.125
Rim Inside Diameter 40.0
Drop Center Width 10.500
Casting Diameter 0.0
Rim Material Thickness 0.312
Valve Hole Diameter 5/8"
Bolt Hole Quantity 10
Bolt Circle Diameter 13.187
Bolt Hole Size 18MM-20MM Bolt
Actual Bolt Hole Size 0.813
Pilot Hole 11.07
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 16
Outside Bolt Circle Diameter 18.0
Outside Bolt Hole Size 18MM-20MM Bolt
Outside Actual Bolt Hole Size 0.812
Outside Bolt Countersink Straight Round
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
