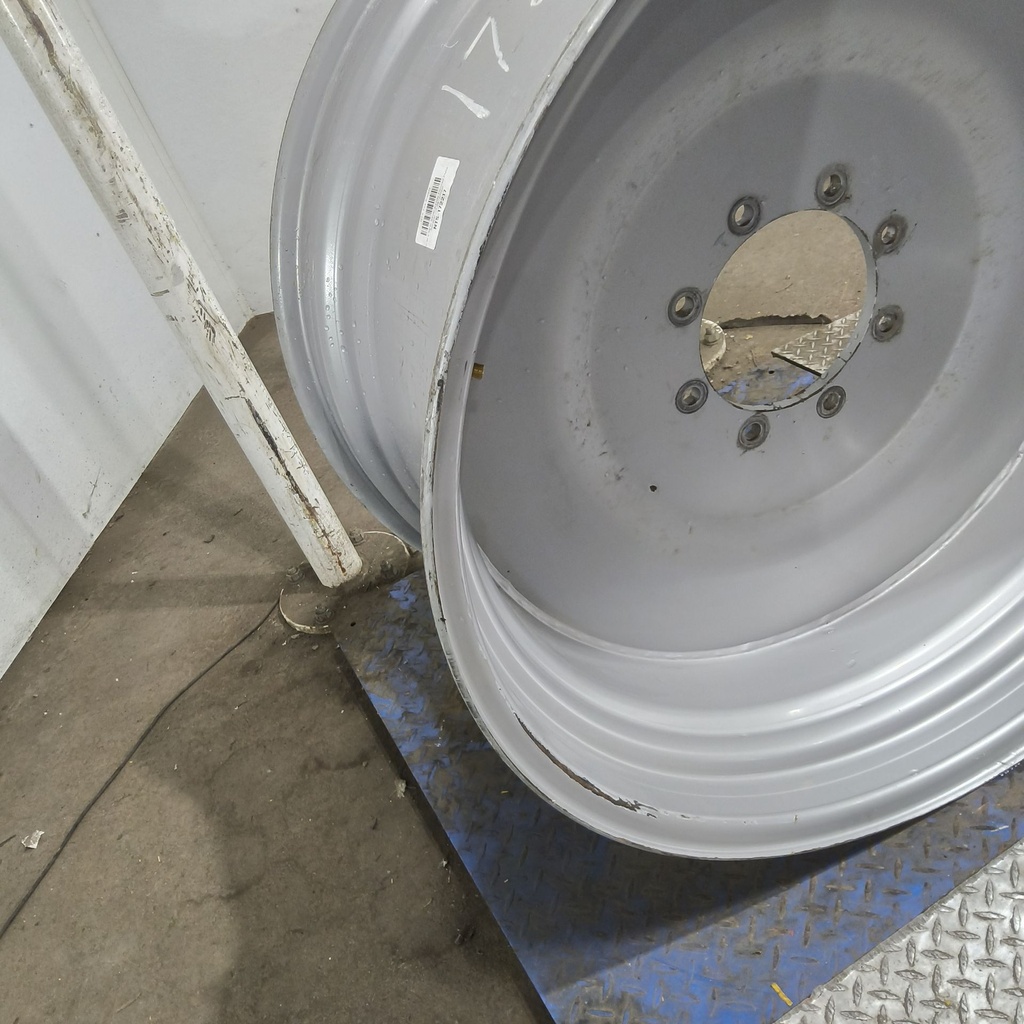

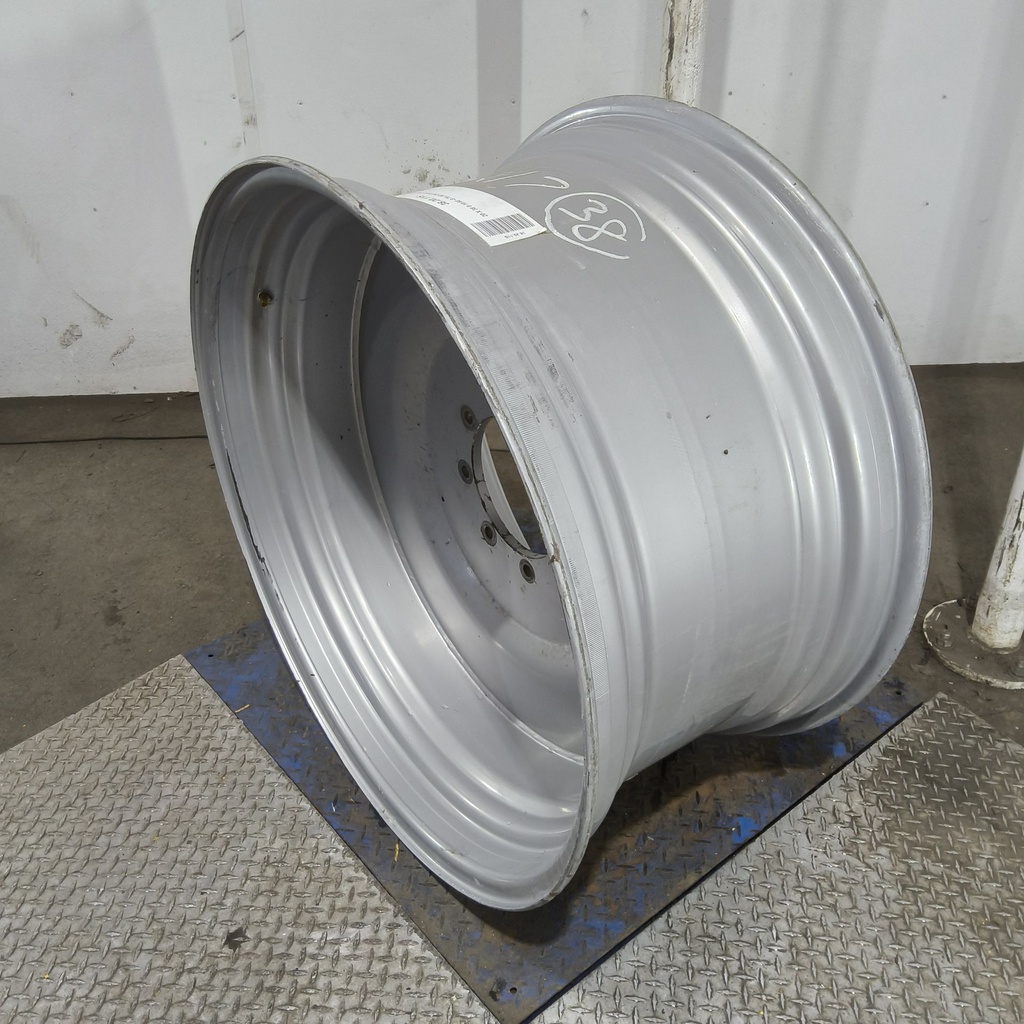

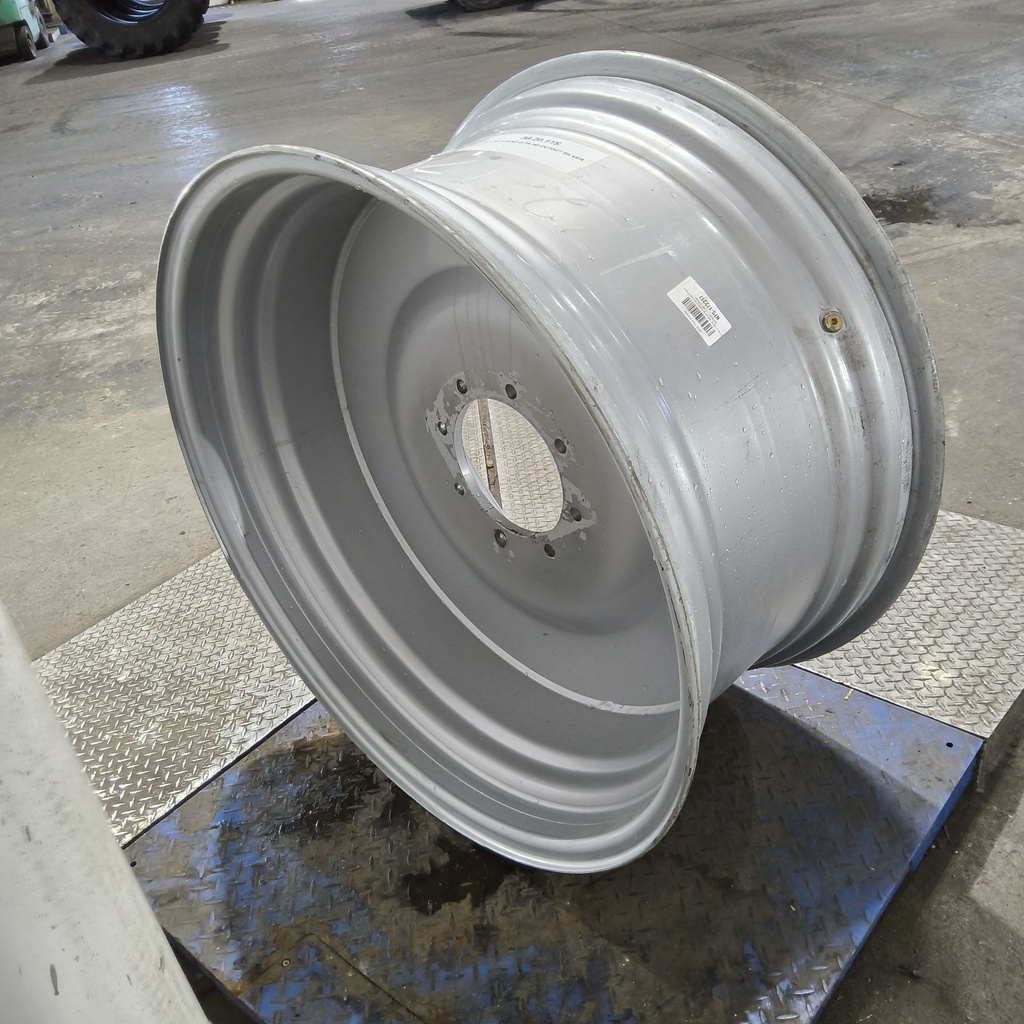

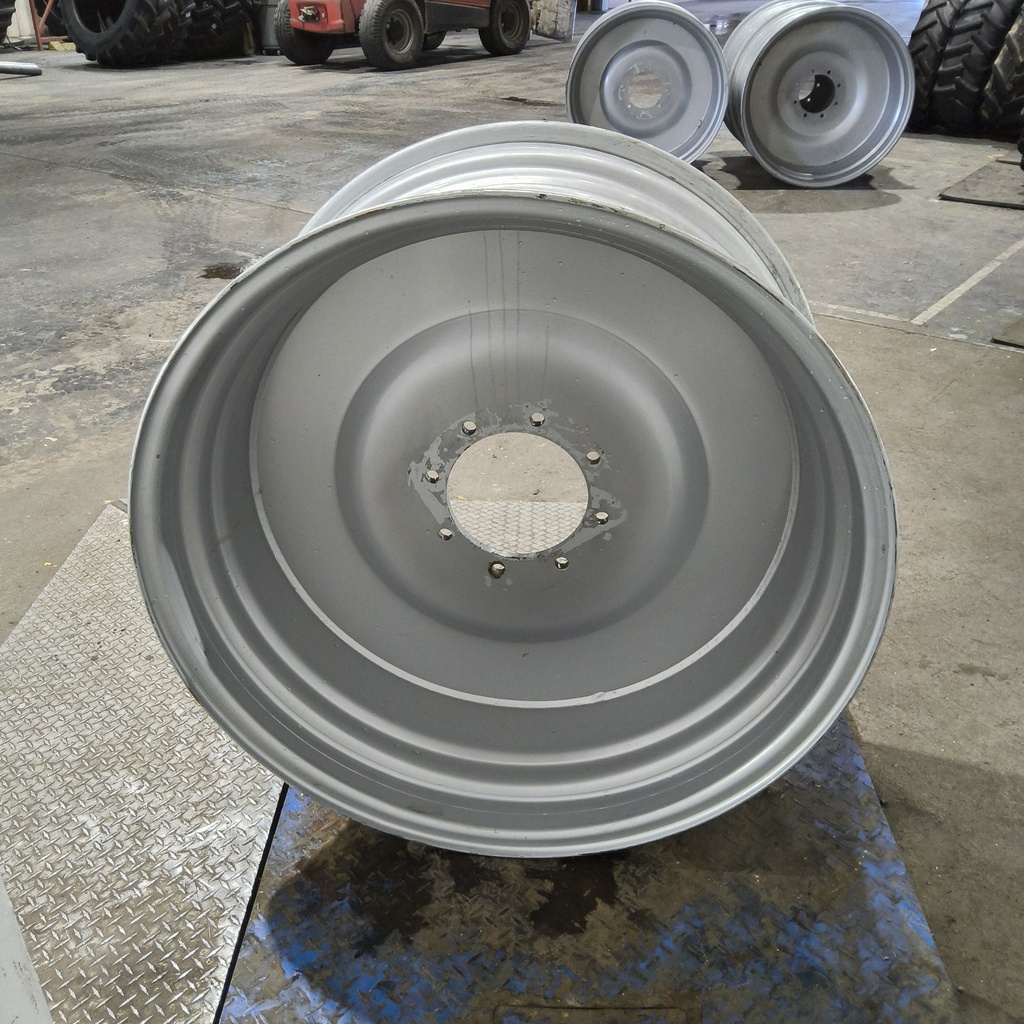

20"W x 38"D, Silver 8-Hole Formed Plate Sprayer , -1.06" Offset

Stock Number: NTS-172217
USED WHEEL

Fits To:
Miller Nitro & New Holland 8 Hole Sprayers

$ 1,175.00 $ 1,175.00

/ea
Add to cart
Contact Us
Availability
4 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade B

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Specifications
Stock No. NTS-172217
Brand Pronar Wheel
Model/Style Formed Plate Sprayer
Rim Design
Rim Diameter 38"
Rim Width 20"
Paint Color Silver
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location C - Corner/Angle
Weight 305.0
Diameter 40.5
Width 21.625
Disc Thickness 0.75
Wheel Offset -1.063
Rim Backside 9.75
Rim Frontside 11.125
Rim Inside Diameter 34.0
Drop Center Width 9.50
Casting Diameter 0.0
Rim Material Thickness 0.275
Valve Hole Diameter 5/8"
Bolt Hole Quantity 8
Bolt Circle Diameter 10.83
Bolt Hole Size 20MM Bolt
Actual Bolt Hole Size 0.86
Pilot Hole 8.75
Bolt Countersink Straight Round
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
