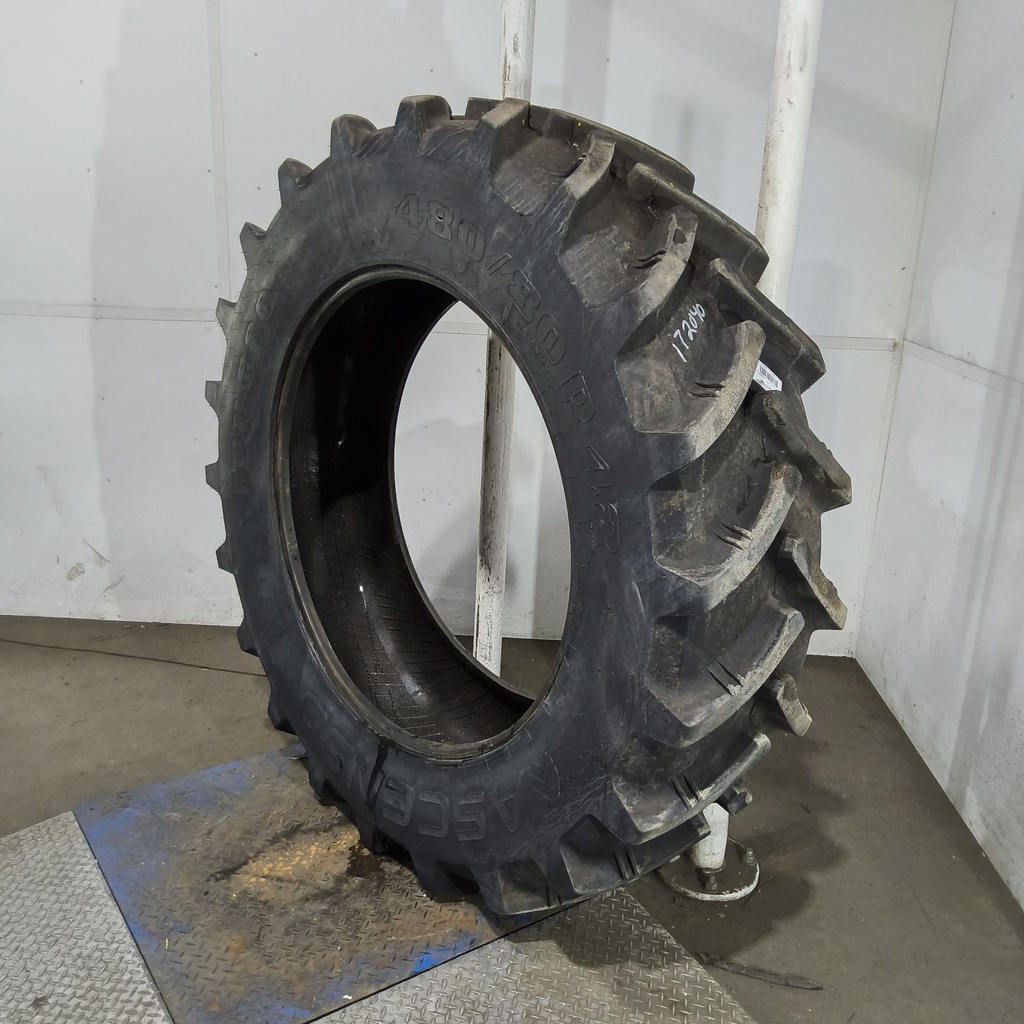

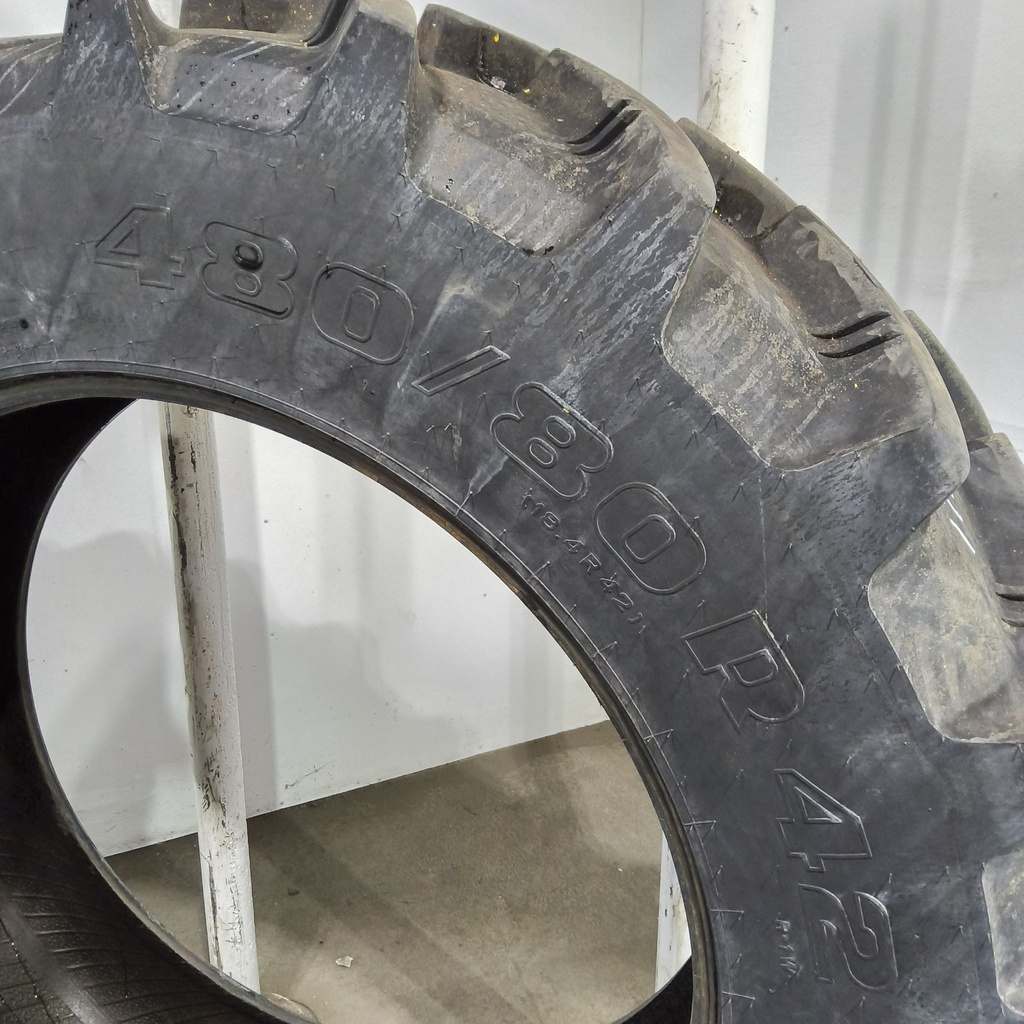

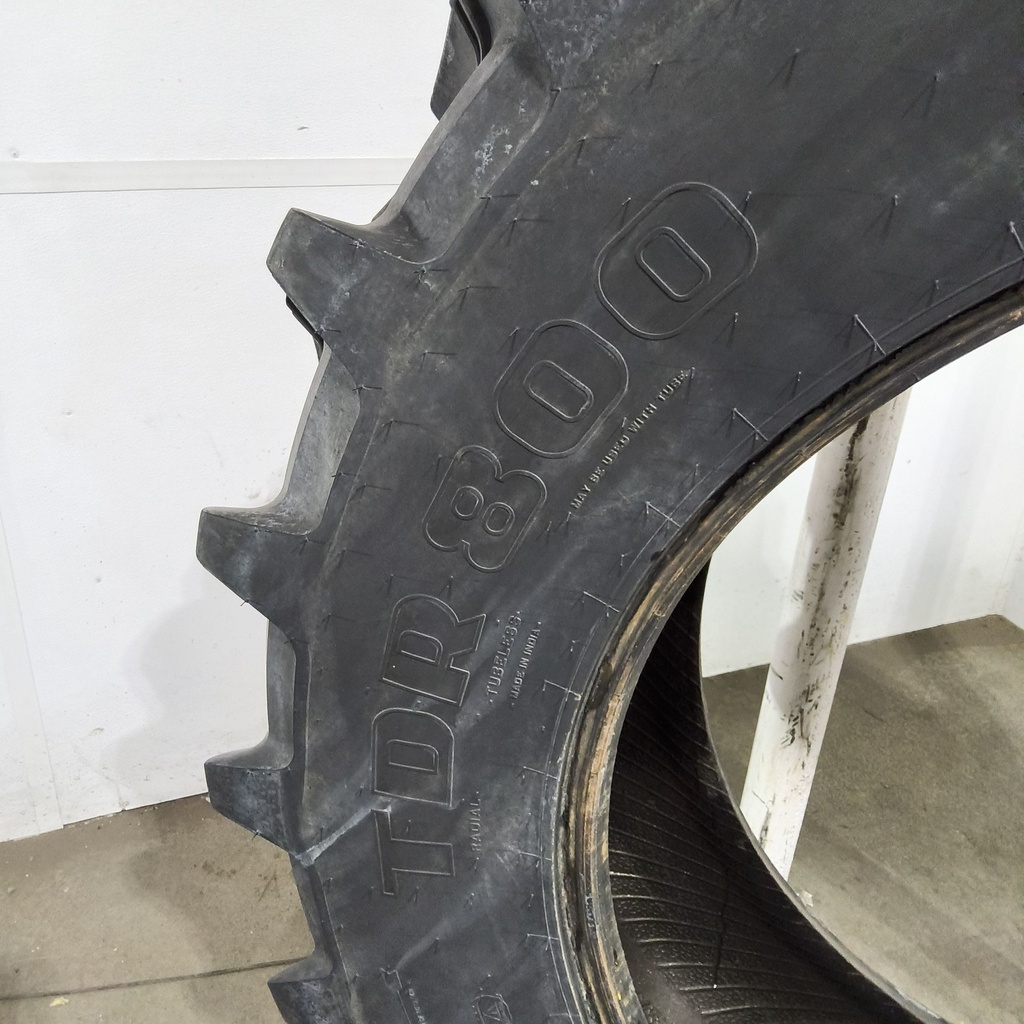

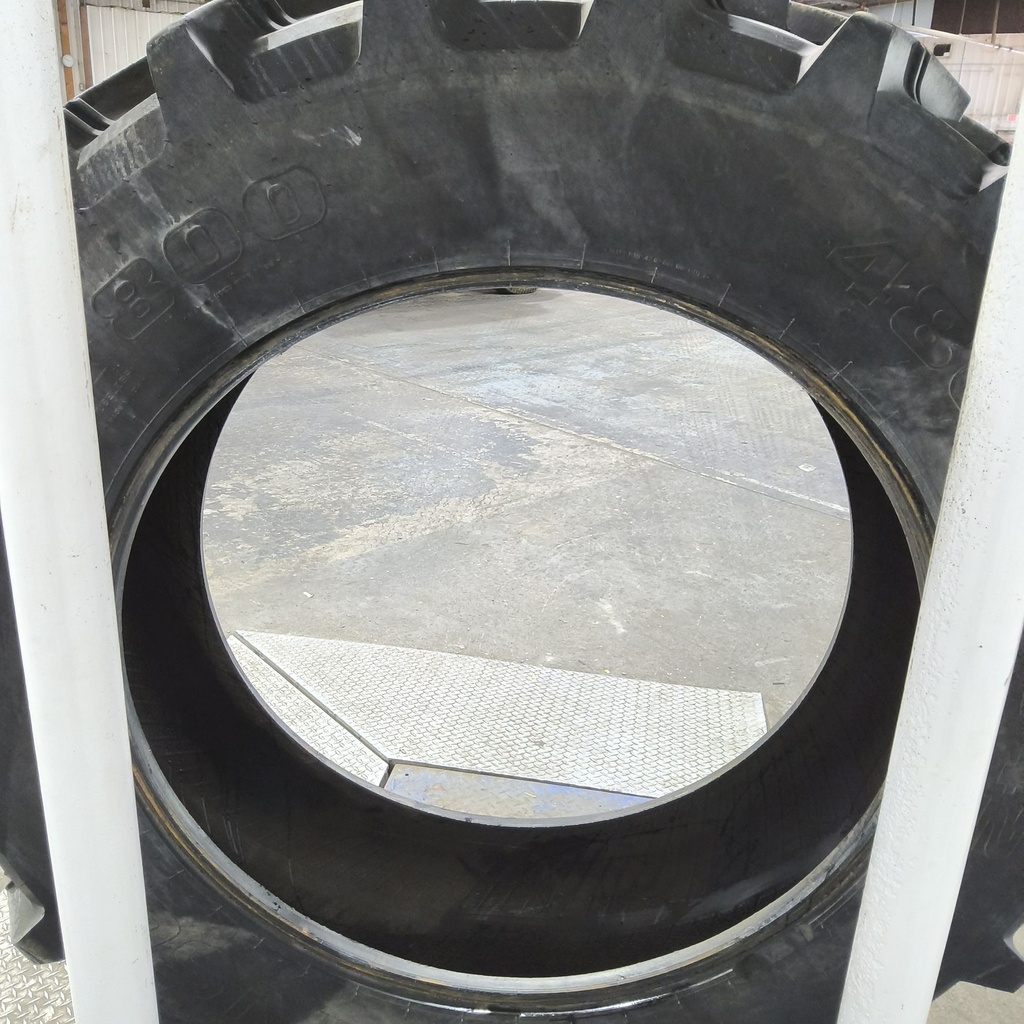

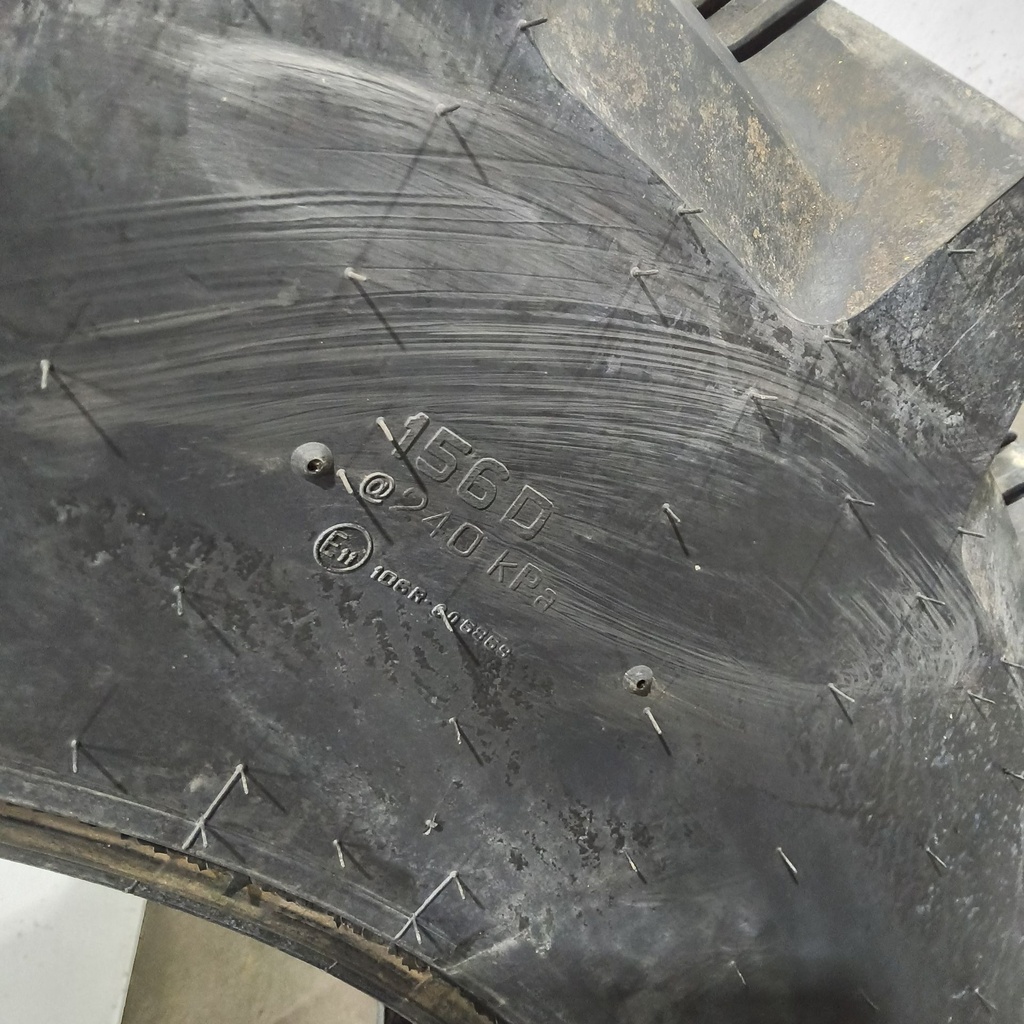

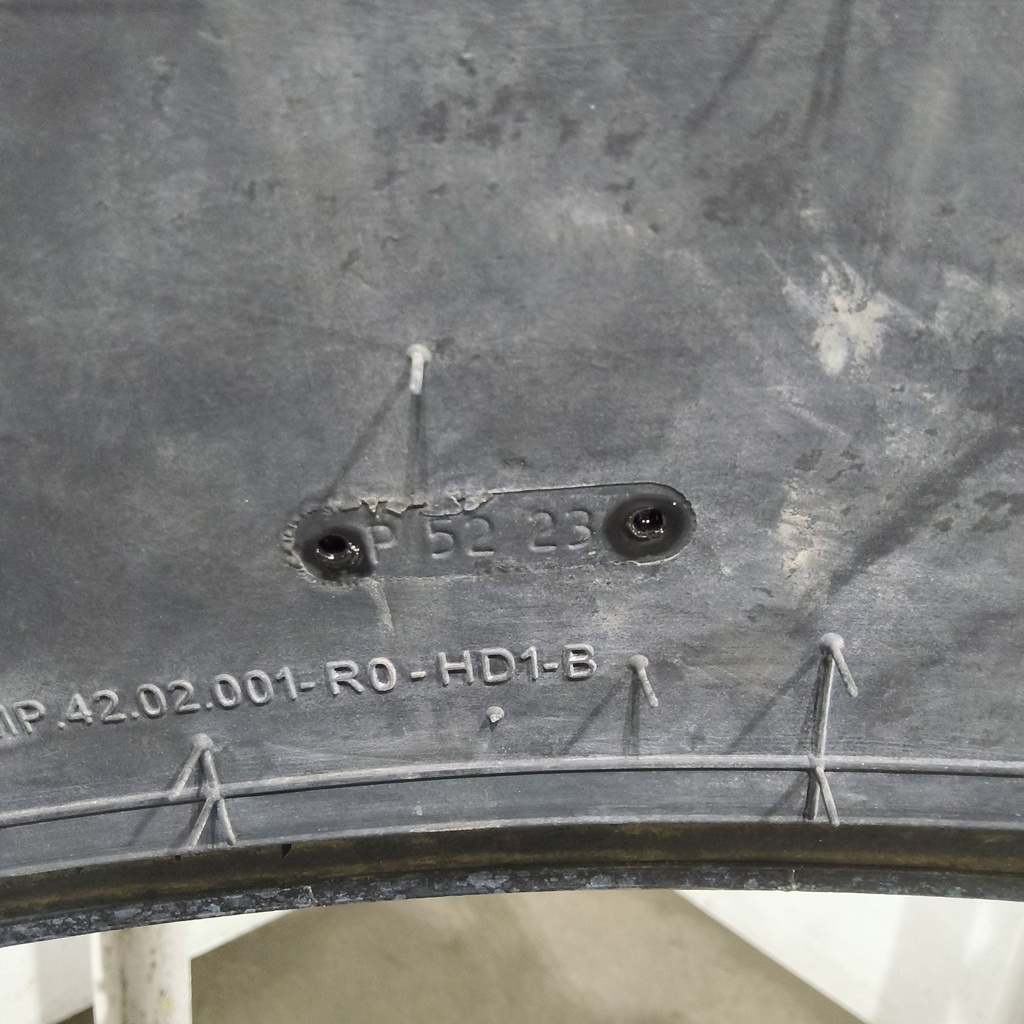

480/80R42 Ascenso TDR 800 R-1W 156D 85%

Stock Number: NTS-172040
USED TIRE

$ 905.00 $ 905.00

/ea
Add to cart
Contact Us
Availability
1 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade A

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Tread Depth Remaining 85%
Chips/Chunking/Cuts Light
Road Wear
Weathering/Dry Rot
Stubble
Bead Damage/Bent/Chipped
Blistering-SW/Liner or Face
Casing Cracks
Repairs Completed None
Warranty 2 Year Black Gold Warranty
Mfg Date Code 2023
Required Product None
Specifications

The Ascenso TDR800 is an agricultural tire that's designed for use on tractors. With an R1 tread pattern and radial construction, the TDR800 provides traction and durability in the toughest field conditions. In addition, the TDR800 is built with mud breakers to assist with low soil compaction.

  • Designed for use on tractors
  • Tubeless construction
  • Optimized design generates less rolling resistance, lower fuel consumption, more grip, and a comfortable ride
  • Mud breakers reduce soil compaction for consistent traction and to prevent the tire from getting stuck
  • R1 tread pattern offers traction in the most challenging field conditions
Stock No. NTS-172040
Brand Ascenso
Model/Style TDR 800
Tread Style (R-1W) Agricultural Deep Tread/Wet Soil
Tire Size 480/80R42
Rim Width 16"
Preferred Rim
RCI Group 46 (71.41" - 75.25")
Casing Technology
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TL) Tubeless
Weight 376.0
Diameter 73.0
Width 19.0
Rolling Circumference 217.0
Static Load Radius 34.0
Flat Plate Area 0
Tread Width 0.0
Ply Rating
Load Index/Speed Rating 156D
Load Limit Single 8800 lbs / 3991 kgs
Load Limit Dual 7744 lbs / 3512 kgs
Load Limit Triple 7216 lbs / 3273 kgs
Max PSI 23
