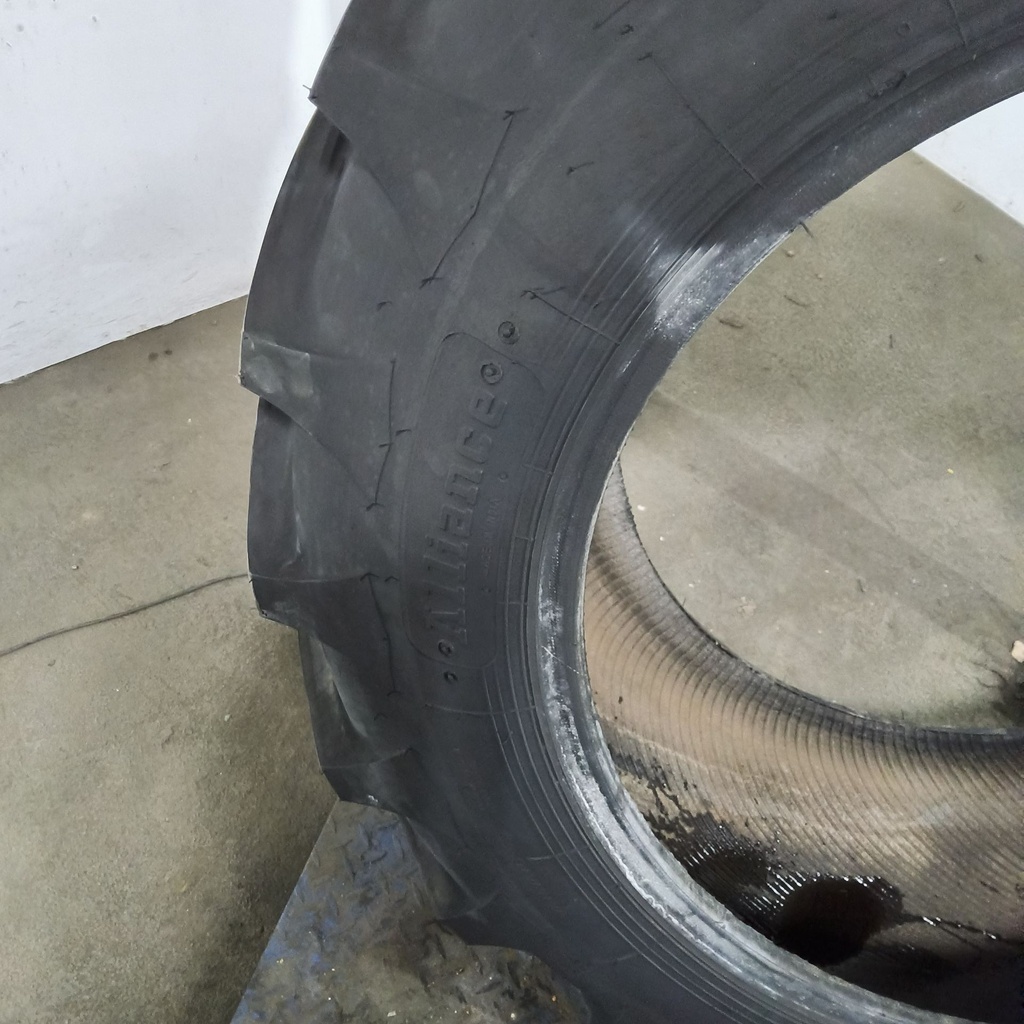

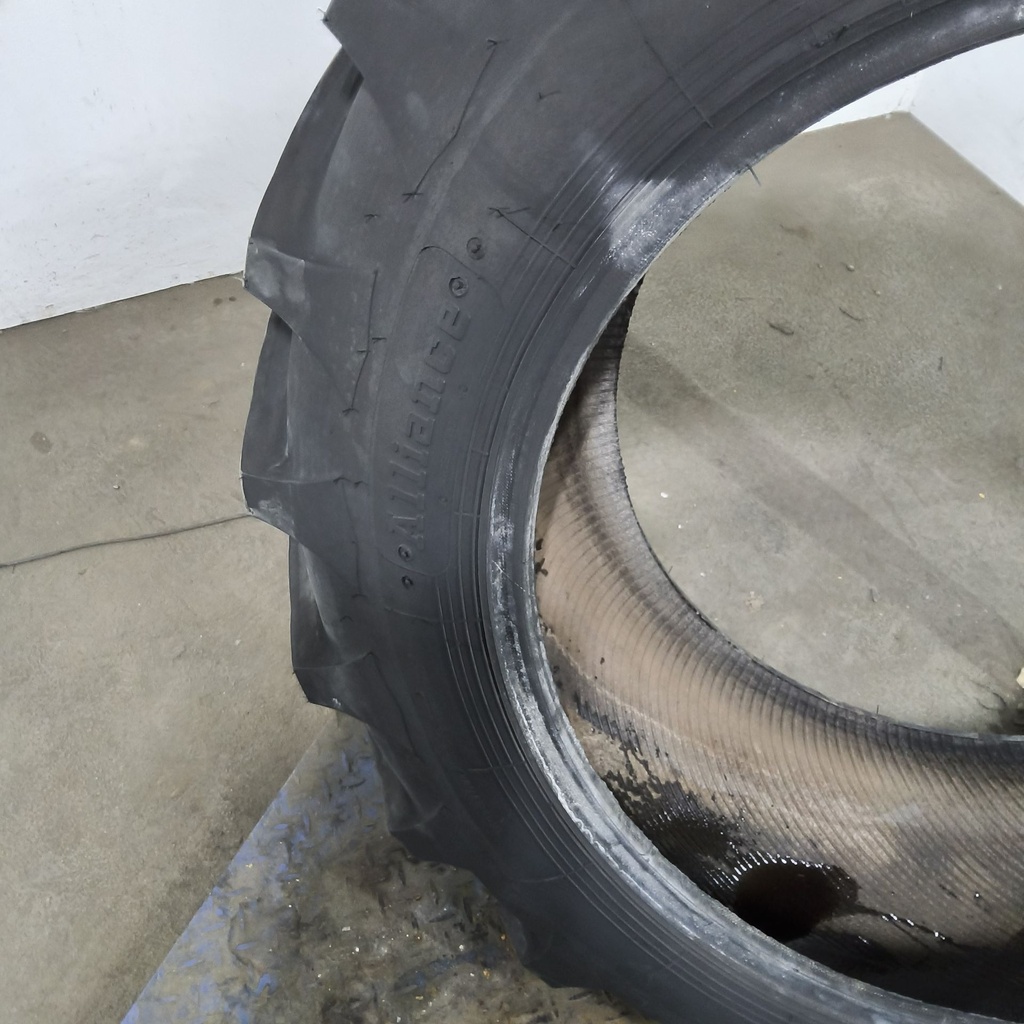

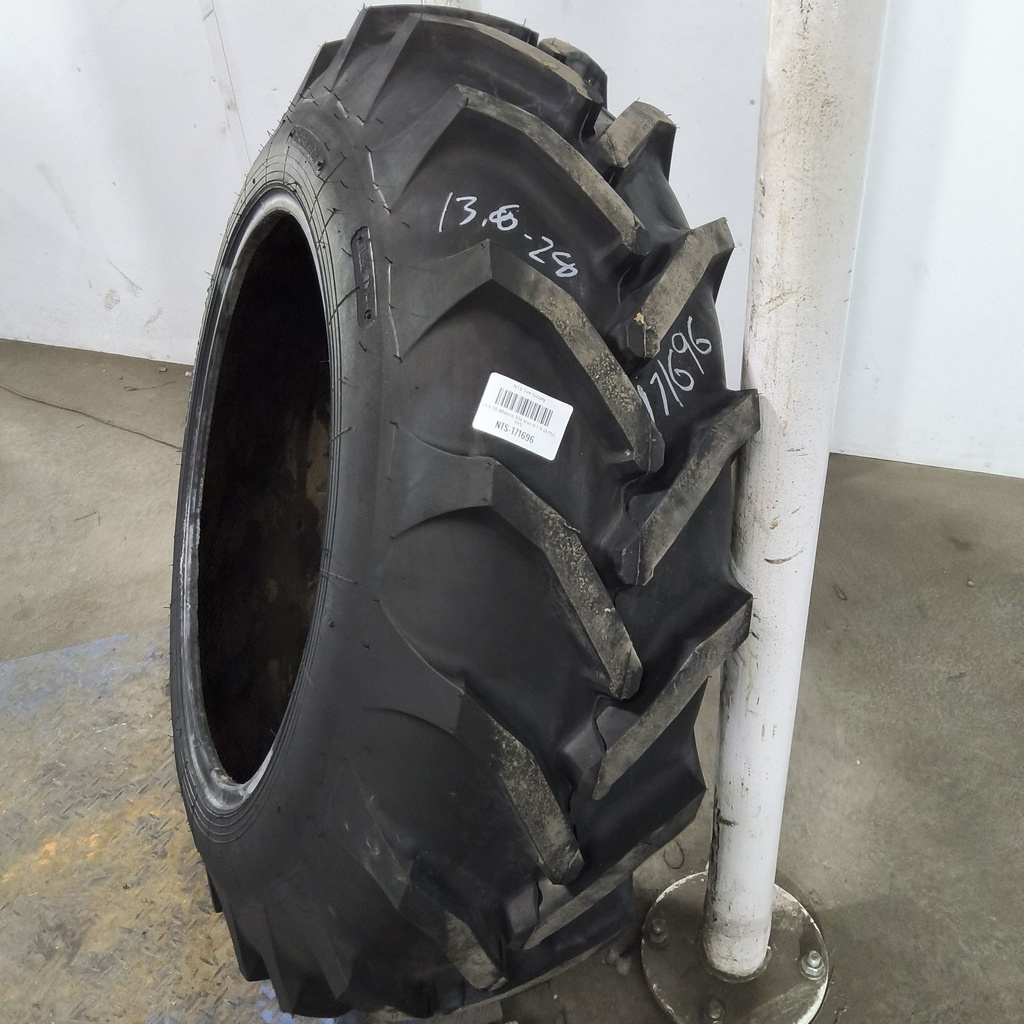

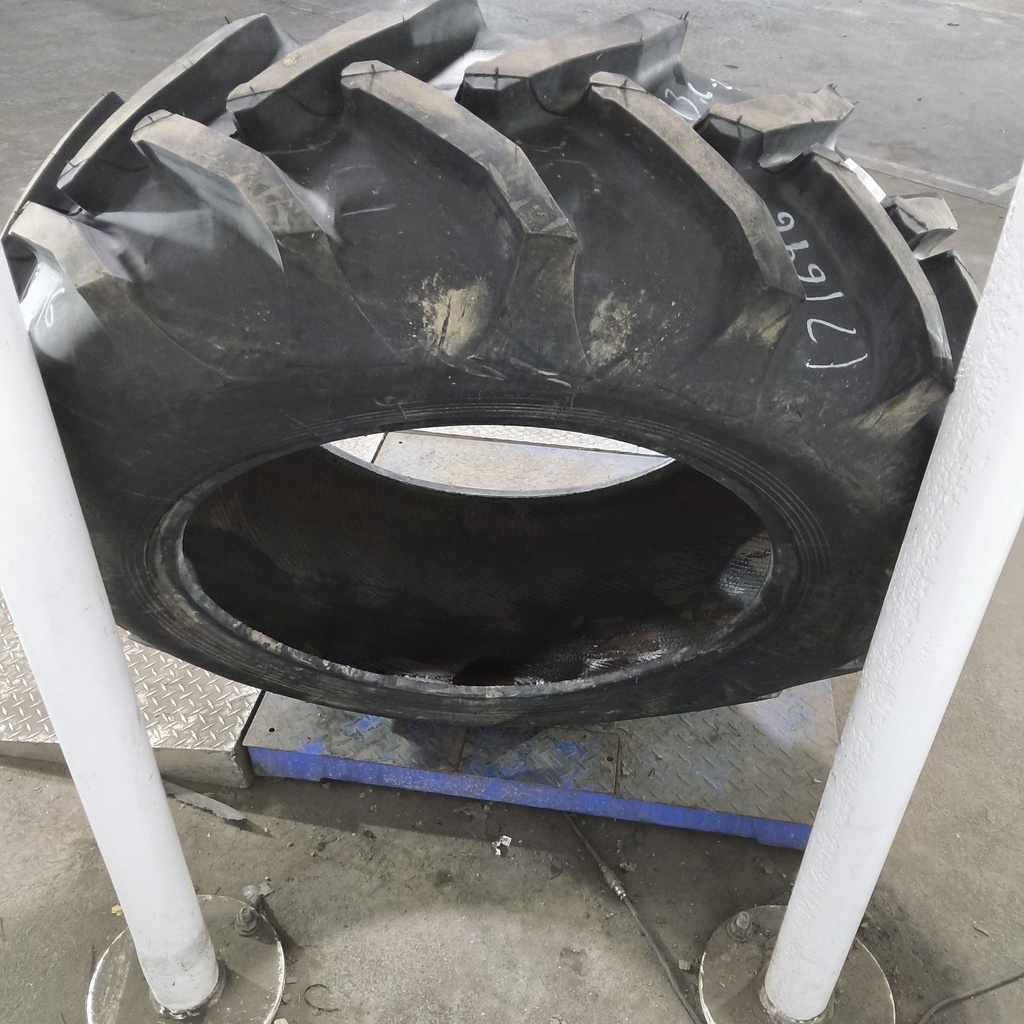

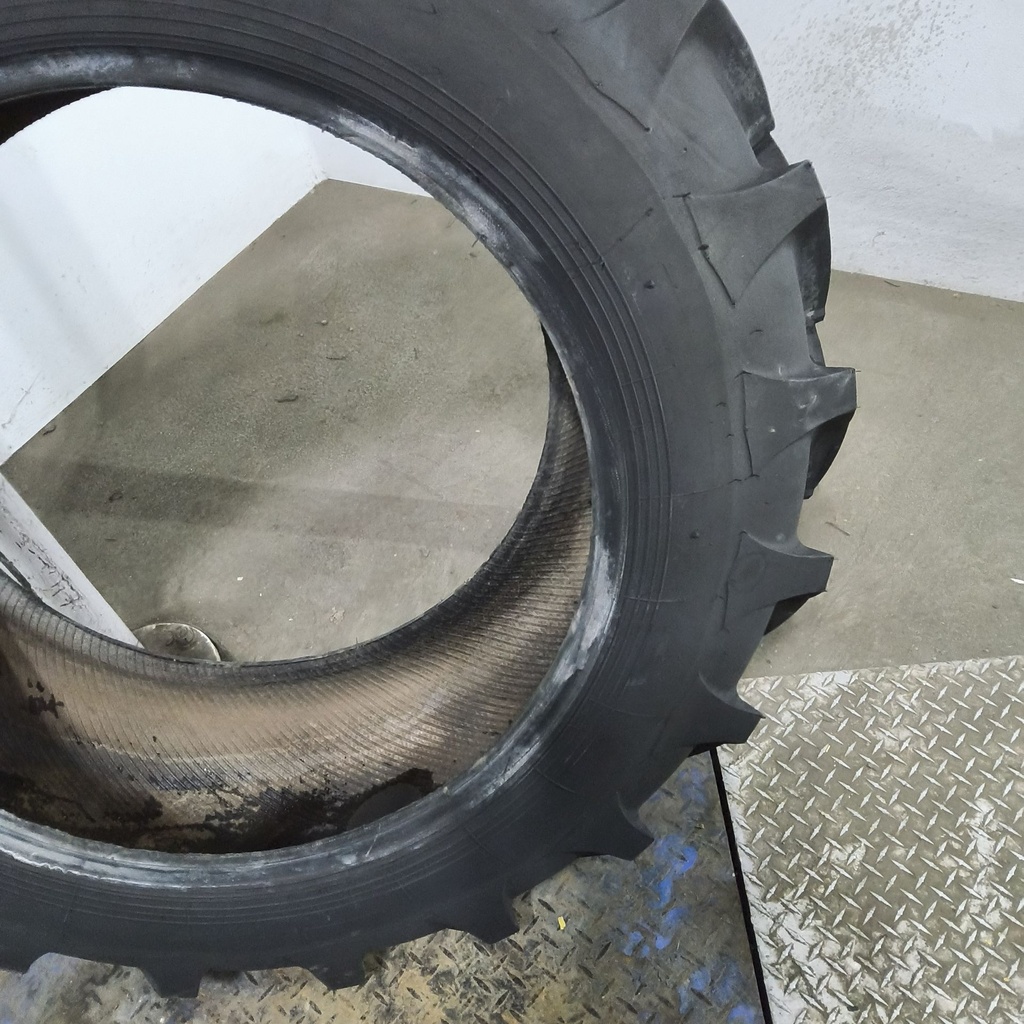

13.6-28 Alliance 304 Bias R-1 D (8 Ply), 99%

Stock Number: NTS-171696
USED TIRE

$ 375.00 $ 375.00

/ea
Add to cart
Contact Us
Availability
1 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade B

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Tread Depth Remaining 99%
Chips/Chunking/Cuts Light
Road Wear None
Weathering/Dry Rot None
Stubble None
Bead Damage/Bent/Chipped None
Blistering-SW/Liner or Face None
Casing Cracks None
Repairs Completed None
Warranty 2 Year Black Gold Warranty

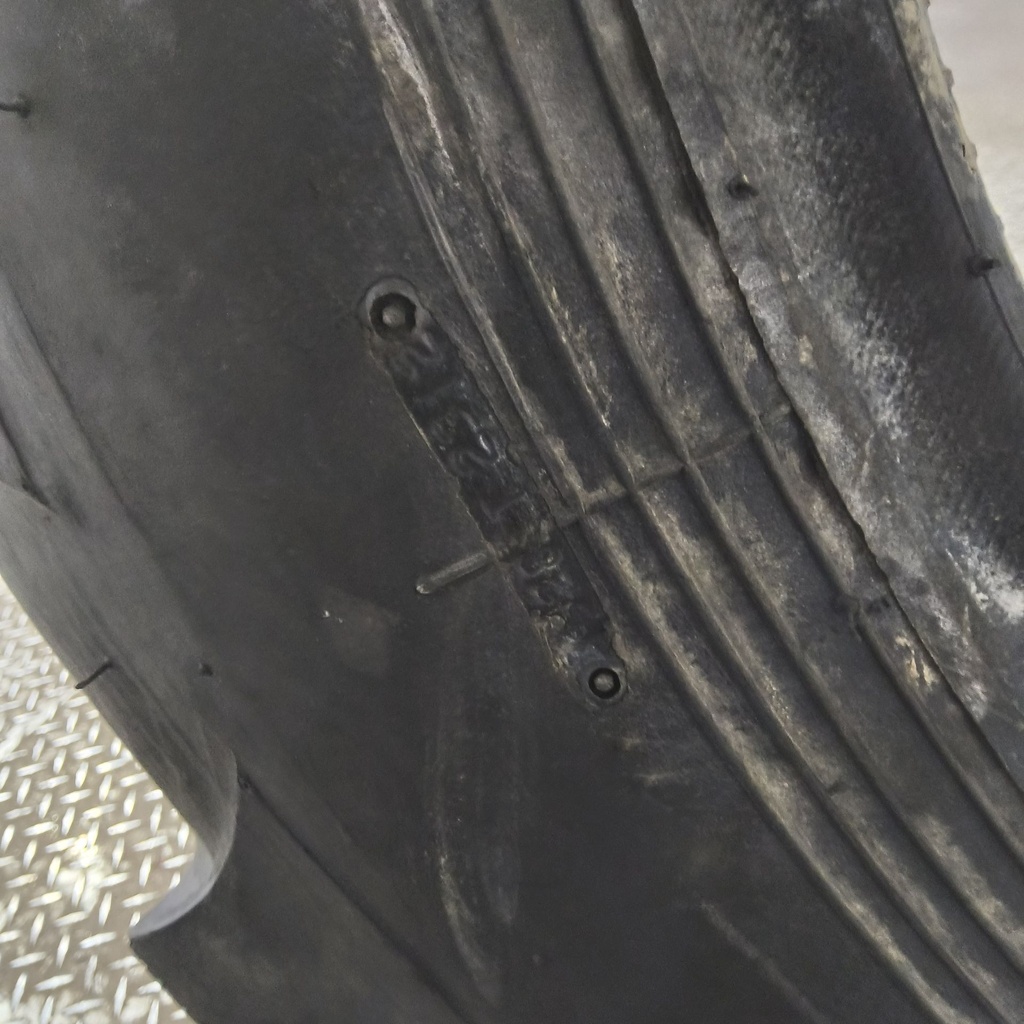

Mfg Date Code 2012
Required Product Tube
Specifications

Agricultural R-1 Drive Wheel tire for Rear Tractor Applications. Recommended for Hillside Operations and for Occasional Short Drives On-the-Road.

  • Knife like lugs
  • Double angle design with wide space between lugs
  • 45° angle bar with center studs
  • Strong nylon carcass
  • Designed for deeper penetration of the ground
  • Ensures efficient self cleaning properties in any kind of soil
  • Provides better resistance to side slip and continuous rolling
  • Guards against mechanical failures and moisture deterioration
Stock No. NTS-171696
Brand Alliance
Model/Style 304 Bias
Tread Style (R-1) Agricultural Regular Tread
Tire Size 13.6-28
Rim Width 12"
Preferred Rim
RCI Group 39 (49.66" - 52.30")
Casing Technology
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TT) Tubetype
Weight 103.73
Diameter 51.6
Width 13.6
Rolling Circumference 0.0
Static Load Radius 23.5
Flat Plate Area 0
Tread Width 0.0

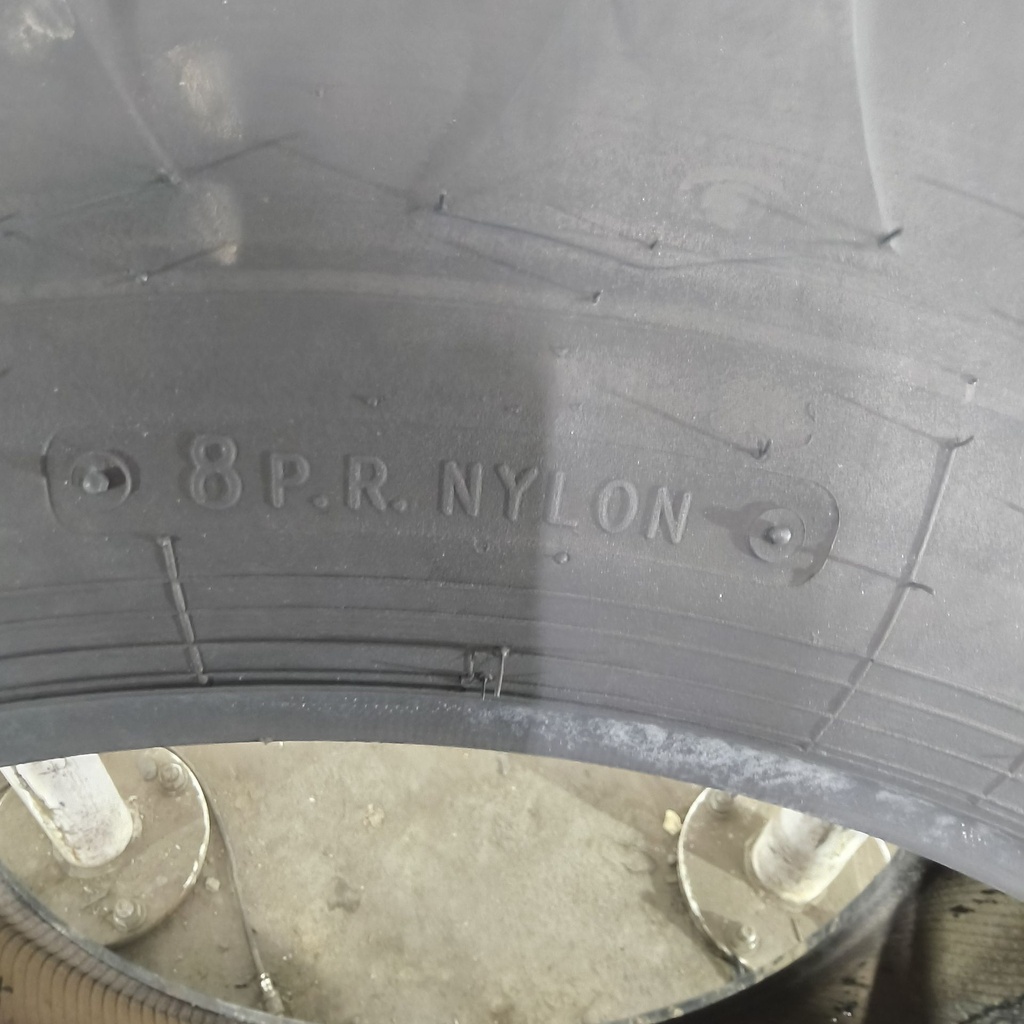

Ply Rating D (8 Ply)
Load Index/Speed Rating
Load Limit Single 0 lbs / 0 kgs
Load Limit Dual 0 lbs / 0 kgs
Load Limit Triple 0 lbs / 0 kgs
Max PSI 29
