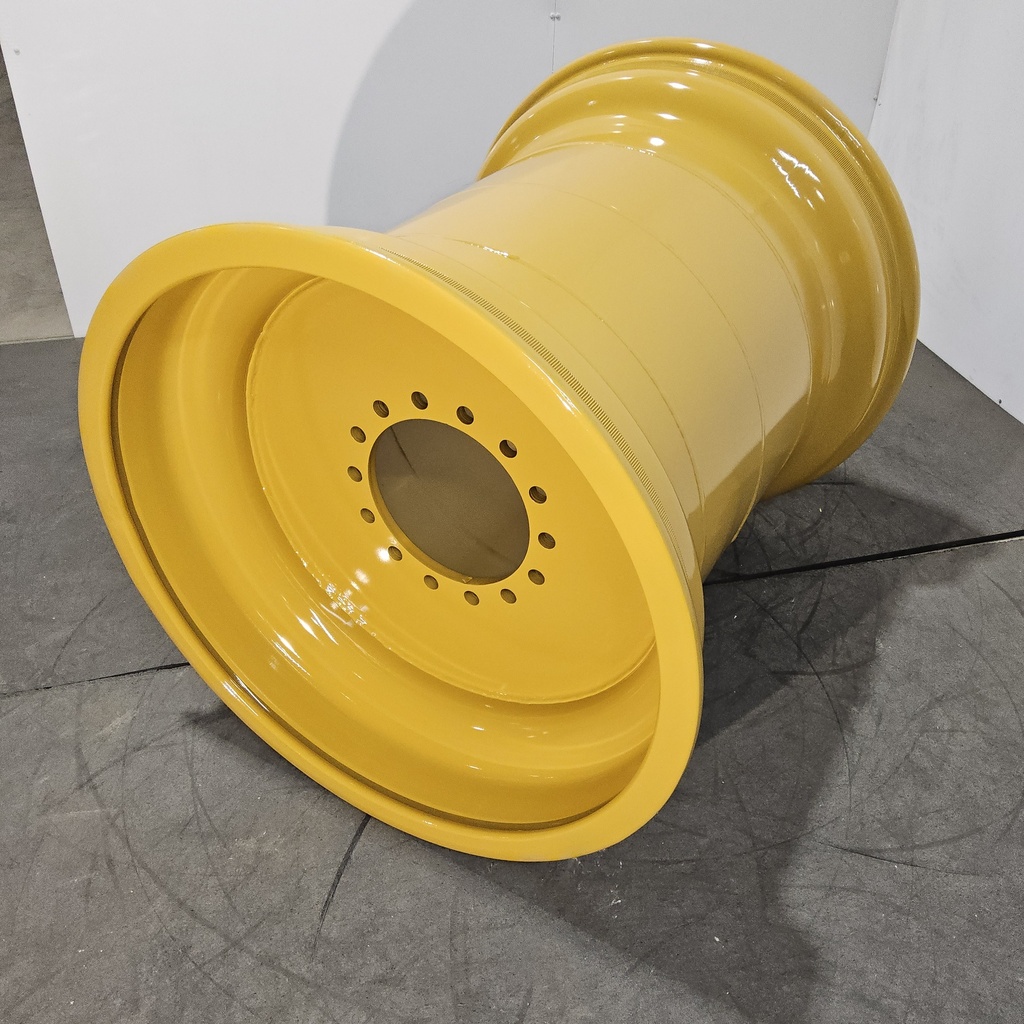

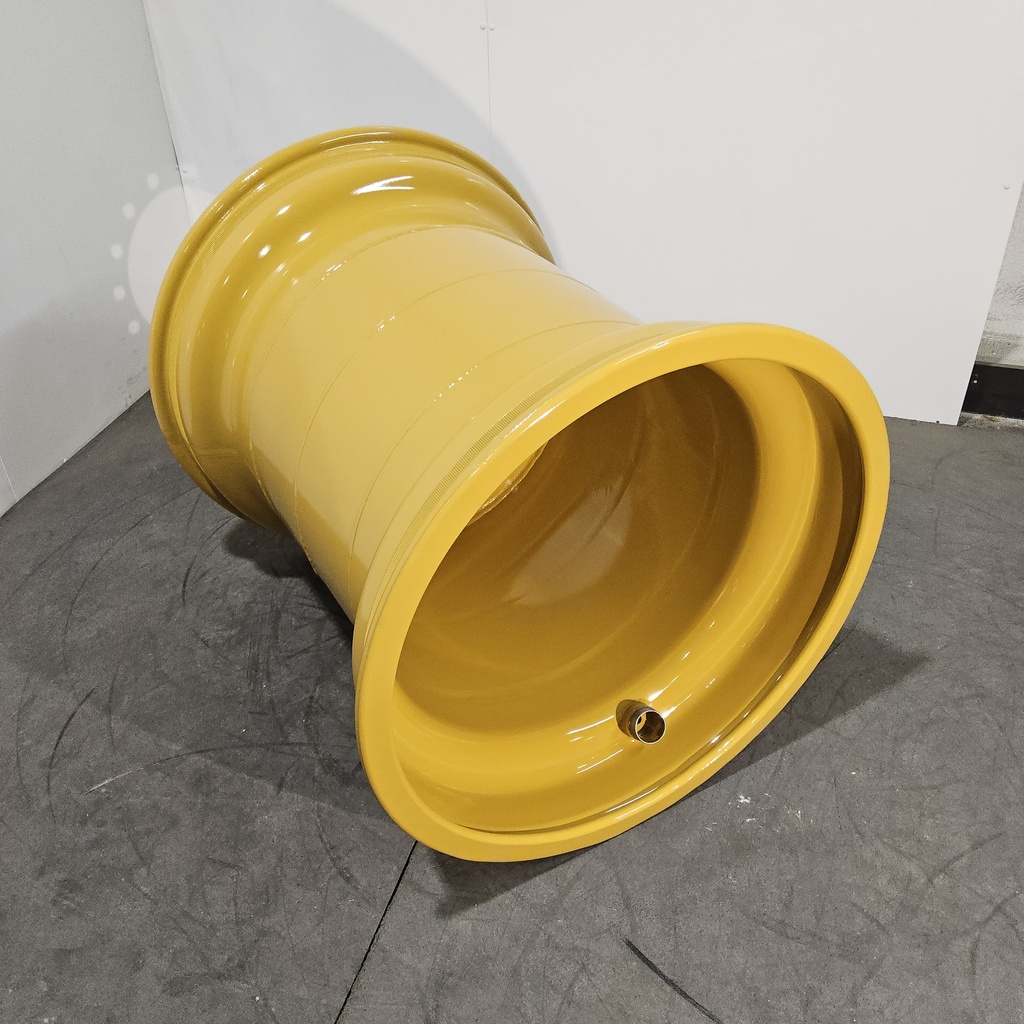

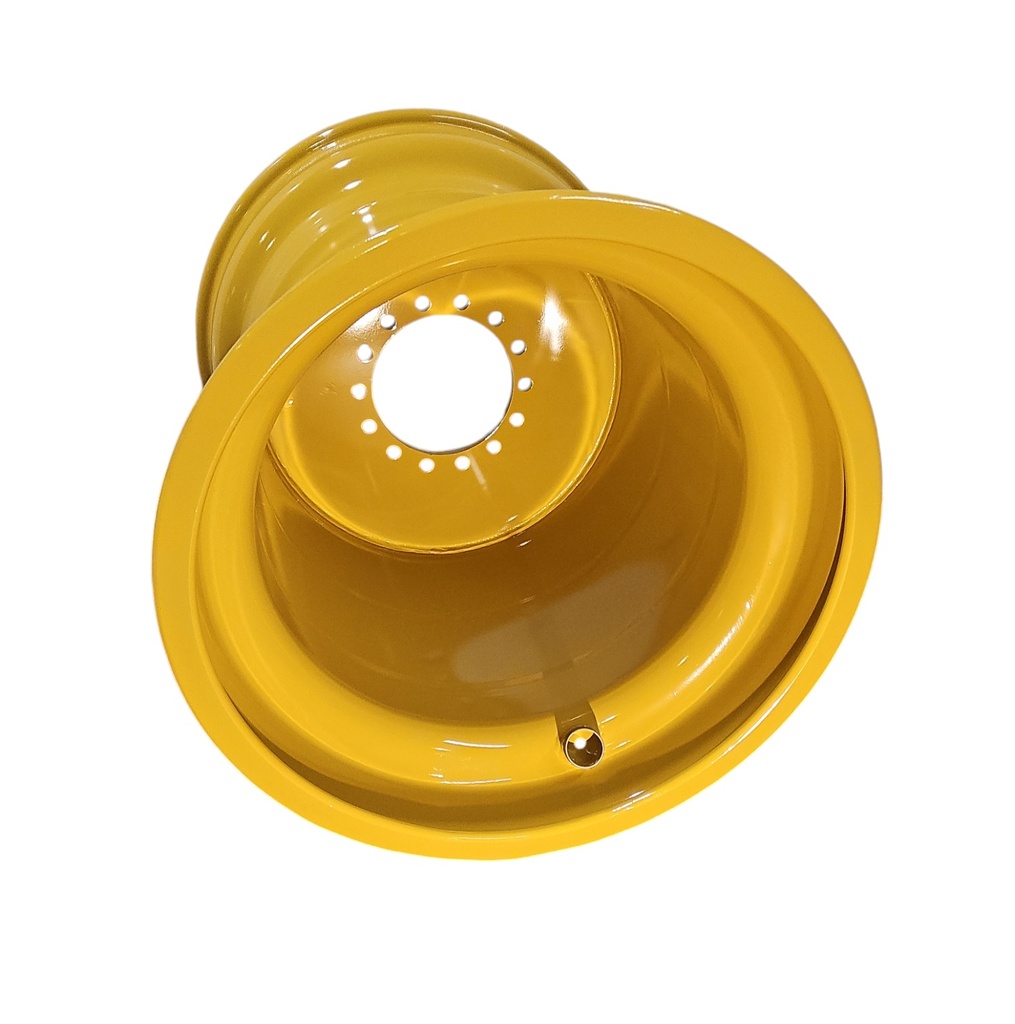

36"W x 32"D, John Deere Construction Yellow 14-Hole Flat Plate , -11.12" Offset
Stock Number:
NTS-133191
MANUFACTURED
WHEEL
DD36 x 32 single piece deep drop rim, 12" BC, 8" in from backside.
Availability
2
Available for pickup
now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition |
Grade
A
GRADE ATires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.NOTE: Tread remaining does not affect the product’s Condition grade. Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.
GRADE BTire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.
GRADE CTire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs. |
Specifications
| Stock No. | NTS-133191 |
| Brand | NTS Tire Supply |
| Model/Style | Flat Plate |
| Rim Design | Flat-Base Deep-Drop |
| Rim Diameter | 32" |
| Rim Width | 36" |
| Paint Color | John Deere Construction Yellow |
| Weight Holes | No |
| Flange Reinforcement | Yes |

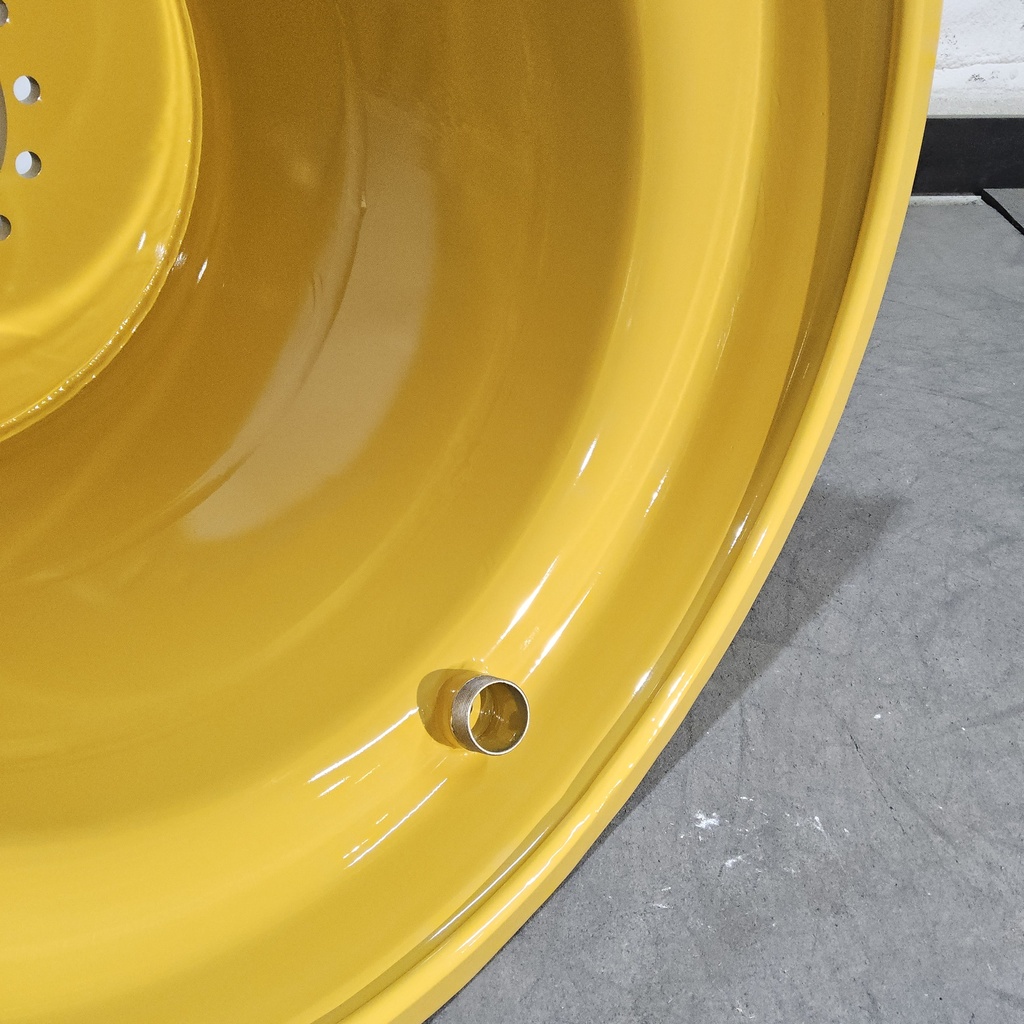

| Valve Guard | Yes |
| Valve Hole Location | C - Corner/Angle |
| Weight | 500.0 |
| Diameter | 34.5 |
| Width | 38.25 |
| Disc Thickness | 0.75 |
| Wheel Offset | -11.125 |
| Rim Backside | 8.0 |
| Rim Frontside | 29.5 |
| Rim Inside Diameter | 26.0 |
| Drop Center Width | 24.5 |
| Casting Diameter | 0.0 |
| Rim Material Thickness | 0.315 |
| Valve Hole Diameter | 5/8" |
| Bolt Hole Quantity | 14 |
| Bolt Circle Diameter | 12.0 |
| Bolt Hole Size | 24MM Bolt |
| Actual Bolt Hole Size | 1.0 |
| Pilot Hole | 10.0 |
| Bolt Countersink | Straight Round |
| BtB Measurement | 0.0 |
| Lugs/Rails Quantity | |
| Outside Bolt Hole Quantity | 0 |
| Outside Bolt Circle Diameter | 0.0 |
| Outside Bolt Hole Size | |
| Outside Actual Bolt Hole Size | 0.0 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Max Weight | 0.0 |
| Rim Rating |
