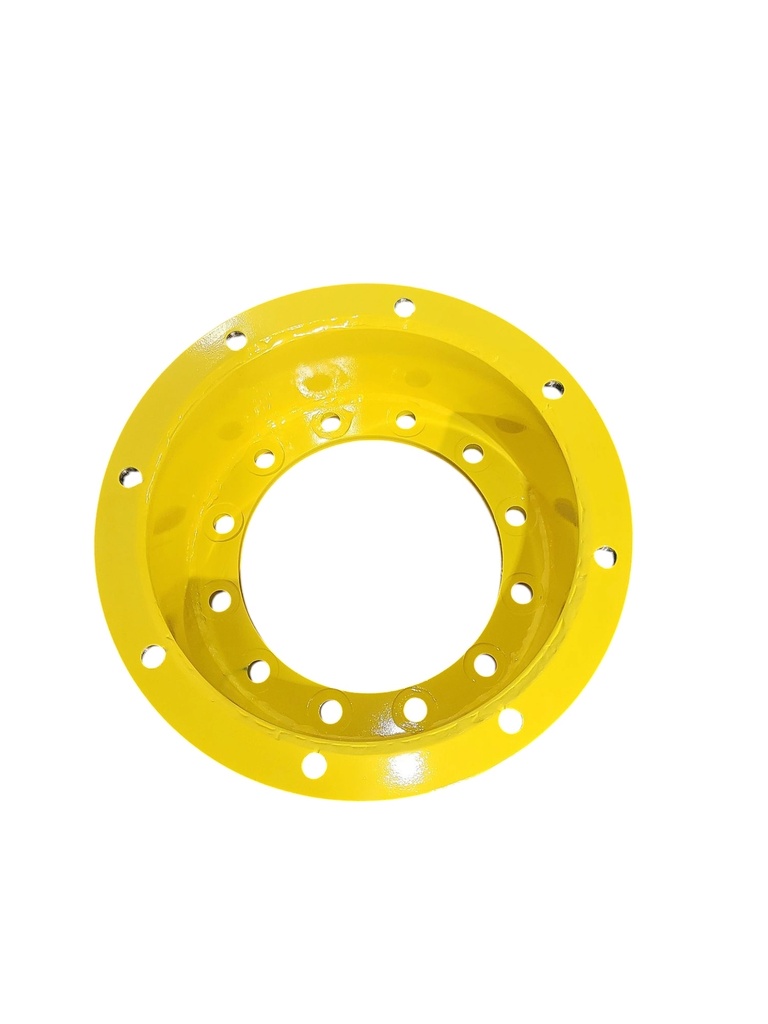

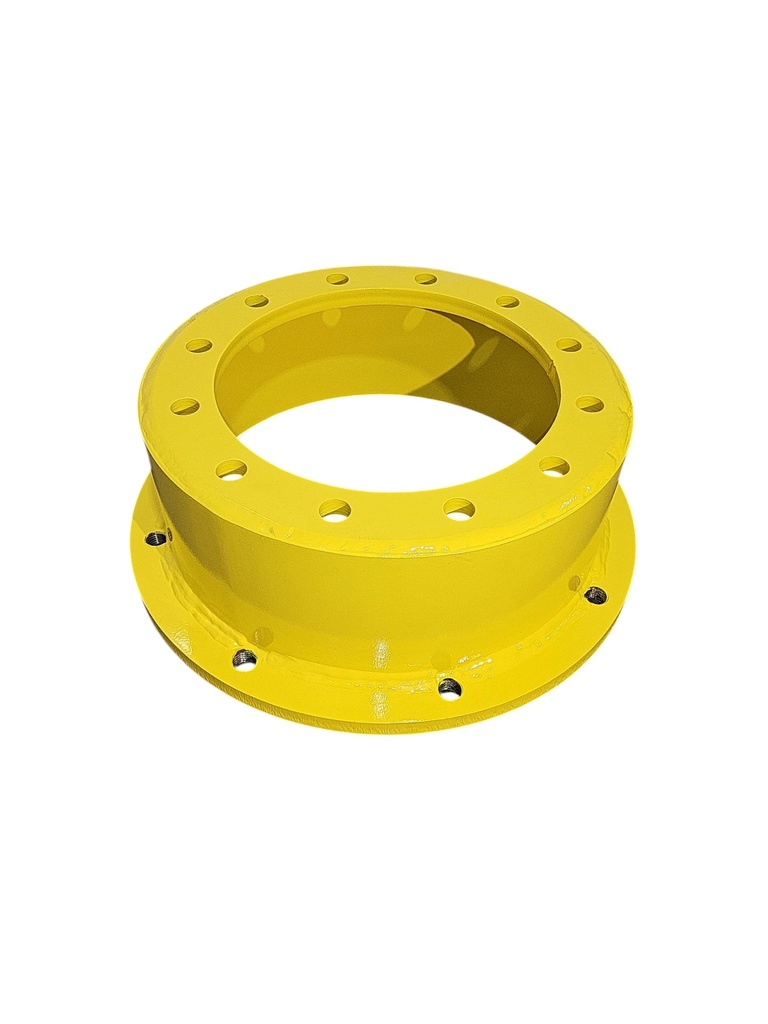

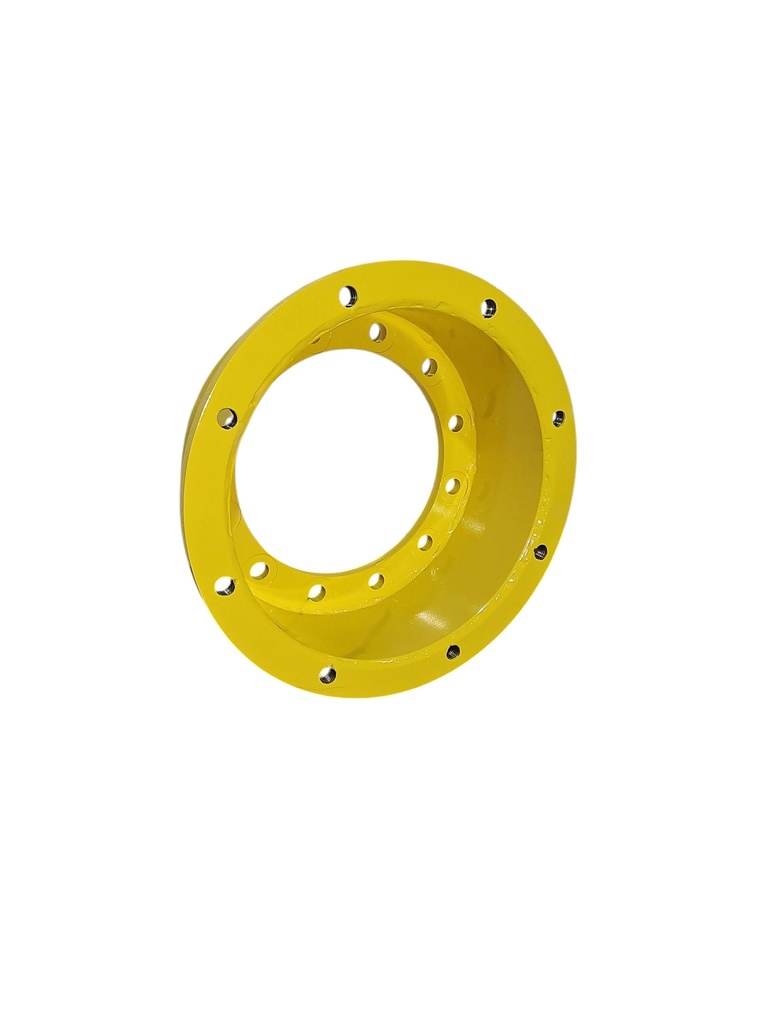

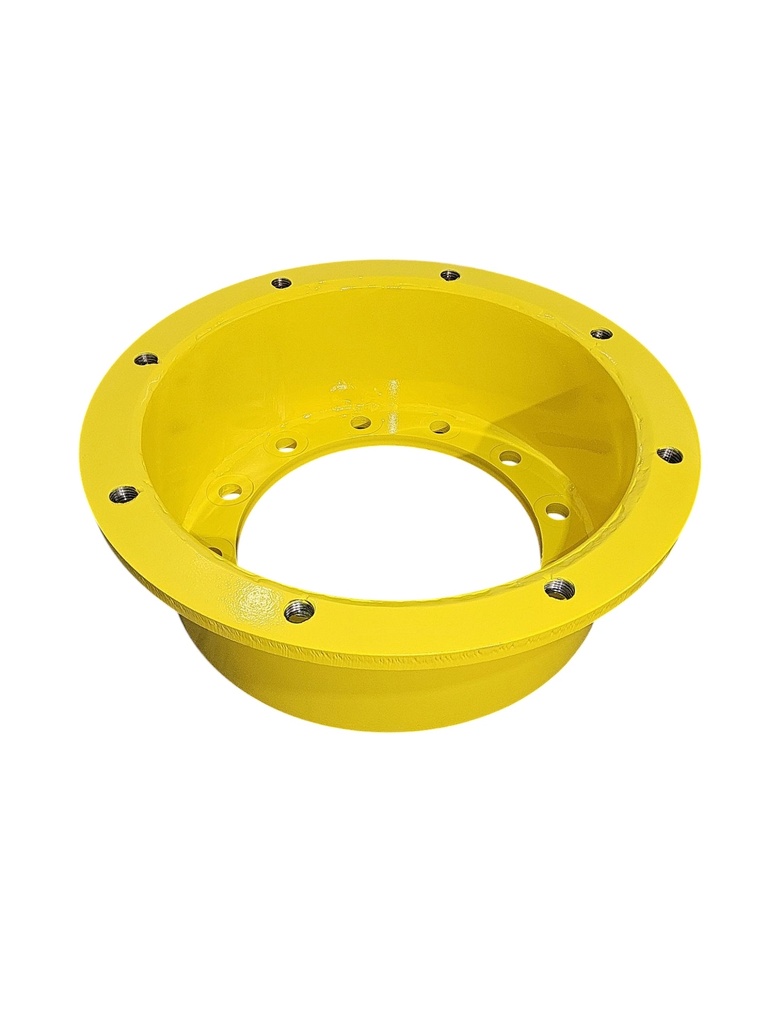

12 to 8-Hole 7"L Extension Starter Hat(For 2-pc Spool Style), John Deere Yellow
Stock Number:
NTS-114915
MANUFACTURED
SPACERS/EXTENSION
Starter hat, 7" long, 12H, 14" BC for JD 4830 to R400 series sprayers, 8H, 18" BC outside pattern.
Availability
8
Available for pickup
now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition | Grade |
Specifications
| Stock No. | NTS-114915 |
| Brand | NTS Tire Supply |
| Model/Style | Extension Starter Hat(For 2-pc Spool Style) |
| Paint Color | John Deere Yellow |
| Hardware Included | Yes |
| Weight | 189.0 |
| Diameter | 20.0 |
| Length | 7.0 |
| Bolt Hole Quantity | 12 |
| Bolt Circle Diameter | 14.0 |
| Bolt Hole Size | 22MM(7/8") Bolt |
| Actual Bolt Hole Size | 0.937 |
| PH Flange Size | 11.875 |
| Flange Thickness | 0.75 |
| Outside Bolt Hole Quantity | 8 |
| Outside Bolt Circle Diameter | 18.0 |
| Outside Bolt Hole Size | 22MM(7/8") Bolt |
| Outside Actual Bolt Hole Size | 0.937 |
| Outside PH Flange Dia | 0.0 |
| Outside Flange Thickness | 0.75 |
