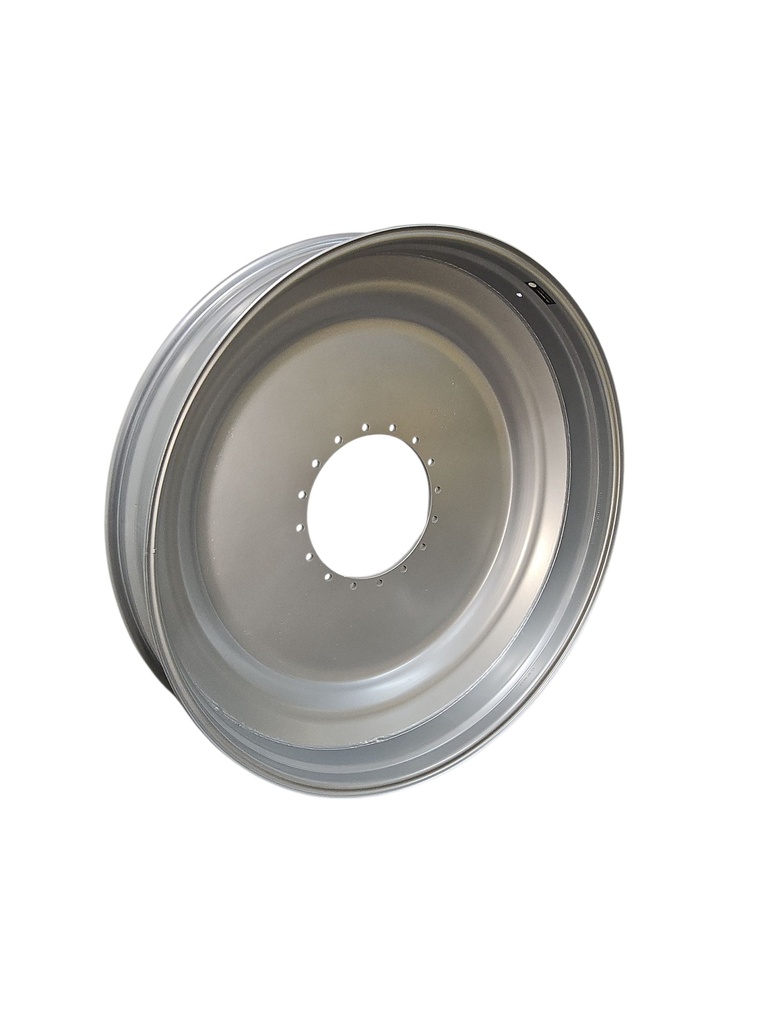

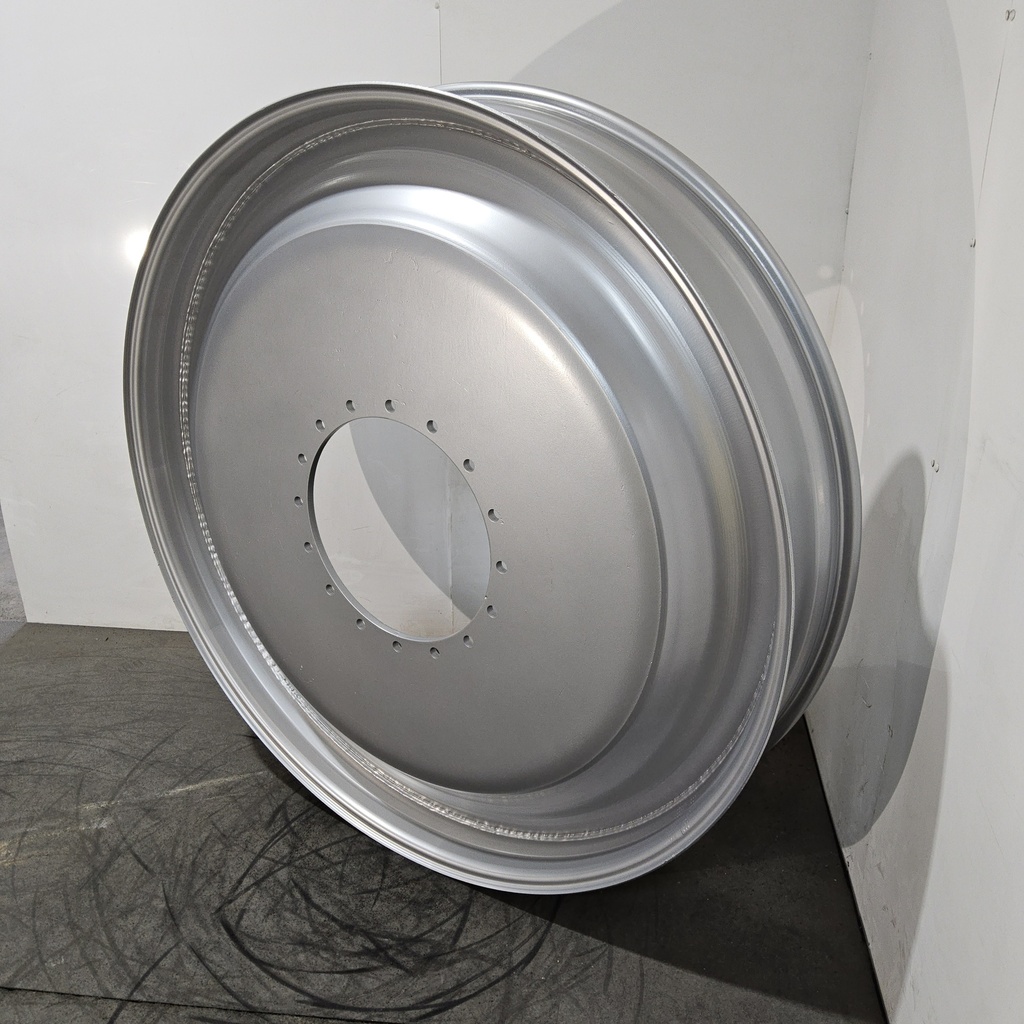

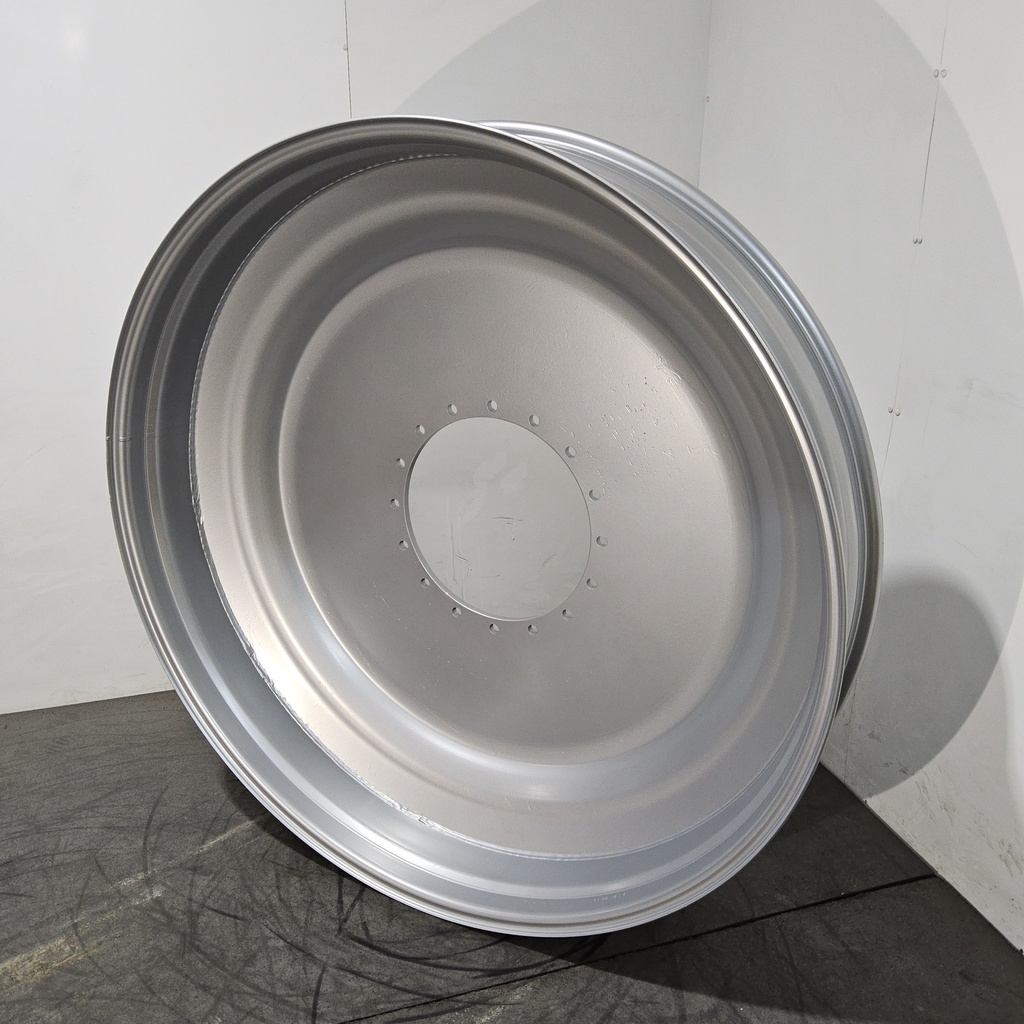

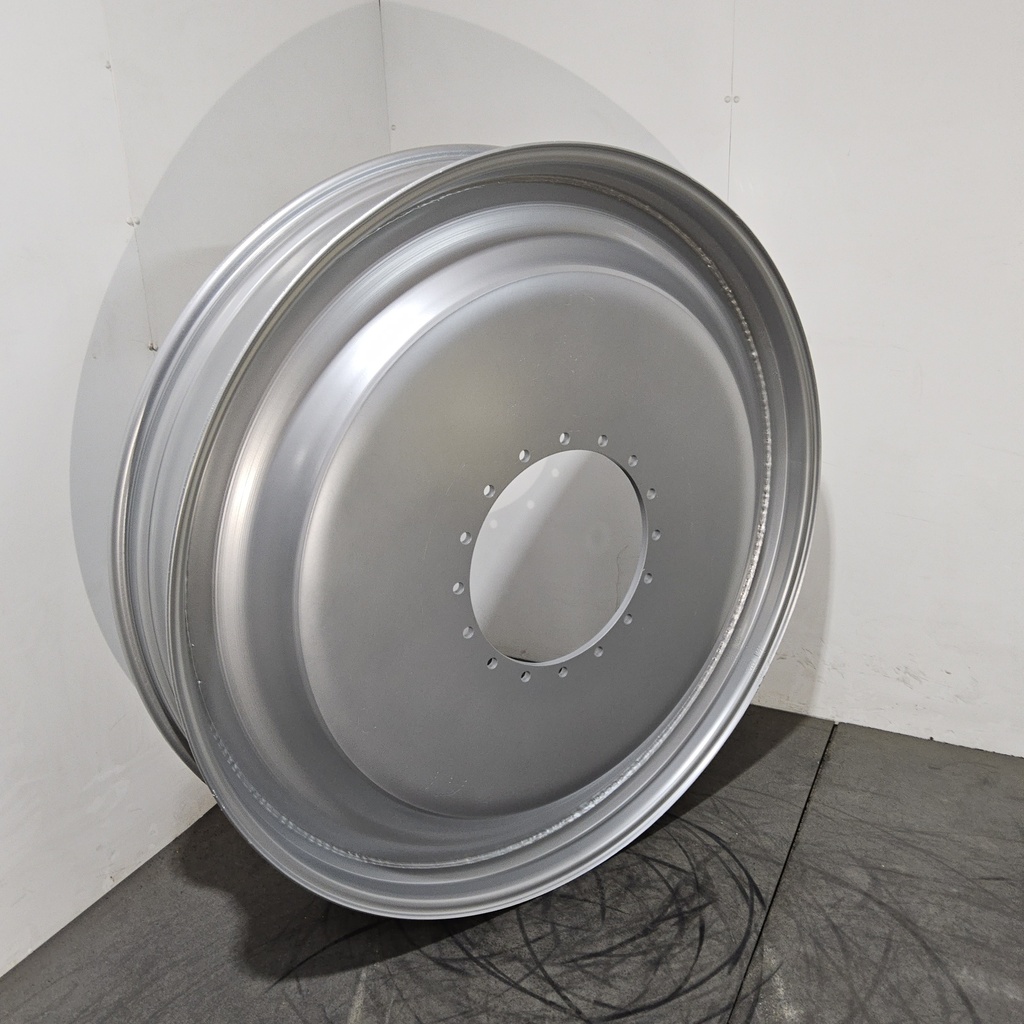

10"W x 54"D, Case IH Silver Mist 16-Hole Spun Disc Sprayer (2 Piece Style) , 5" Offset
Stock Number:
NTS-104475
MANUFACTURED
WHEEL
10 x 54 16H, 18" BC, spun disc sprayer main wheel w/o adaptor plate, 5" offset. For CIH SPX 4260 to 4440 models.
Availability
1
Available for pickup
now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition | Grade |
Specifications
| Stock No. | NTS-104475 |
| Brand | NTS Tire Supply |
| Model/Style | Spun Disc Sprayer (2 Piece Style) |
| Rim Design | Flat-Base |
| Rim Diameter | 54" |
| Rim Width | 10" |
| Paint Color | Case IH Silver Mist |
| Weight Holes | No |
| Flange Reinforcement | No |
| Valve Guard | No |
| Valve Hole Location | V - Vertical |
| Weight | 525.0 |
| Diameter | 56.5 |
| Width | 11.625 |
| Disc Thickness | 0.625 |
| Wheel Offset | 5.0 |
| Rim Backside | 10.812 |
| Rim Frontside | 0.188 |
| Rim Inside Diameter | 52.0 |
| Drop Center Width | 5.00 |
| Casting Diameter | 0.0 |
| Rim Material Thickness | 0.312 |
| Valve Hole Diameter | 5/8" |
| Bolt Hole Quantity | 16 |
| Bolt Circle Diameter | 18.0 |
| Bolt Hole Size | 20MM Bolt |
| Actual Bolt Hole Size | 0.875 |
| Pilot Hole | 16.0 |
| Bolt Countersink | Straight Round |
| BtB Measurement | 0.0 |
| Lugs/Rails Quantity | |
| Outside Bolt Hole Quantity | 0 |
| Outside Bolt Circle Diameter | 0.0 |
| Outside Bolt Hole Size | |
| Outside Actual Bolt Hole Size | 0.0 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Max Weight | 0.0 |
| Rim Rating |
