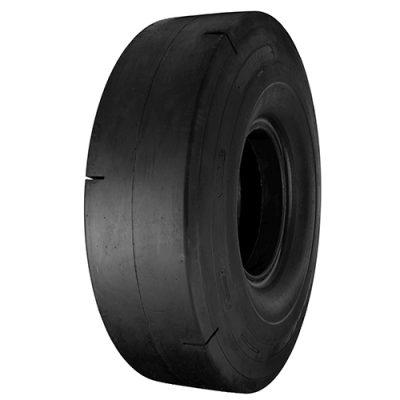

10.00-20 American Farmer (STA) Big Jake L-5S G (14 Ply), 100%
Stock Number:
NDA2A
NEW
TIRE
Availability
Call for Availability
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
- Deep, thick tread depth provides maximum return when used in mining and heavy industrial applications
- Smooth tread design is proven to be resistant to cuts, chips, and hot droplets found in mills
- Our most durable rubber compound ensures the best hour service return
| Stock No. | NDA2A |
| Brand | American Farmer (STA) |
| Model/Style | Big Jake |
| Tread Style | (L-5S) Loader and Dozer Smooth Extra Deep Tread |
| Tire Size | 10.00-20 |
| Rim Width | 7.5" |
| Preferred Rim | |
| RCI Group | 35 (40.21" - 42.40") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TT) Tubetype |
| Weight | 149.0 |
| Diameter | 41.2 |
| Width | 10.0 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 0.0 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | G (14 Ply) |
| Load Index/Speed Rating | |
| Load Limit Single | 0 lbs / 0 kgs |
| Load Limit Dual | 0 lbs / 0 kgs |
| Load Limit Triple | 0 lbs / 0 kgs |
| Max PSI | 75 |
