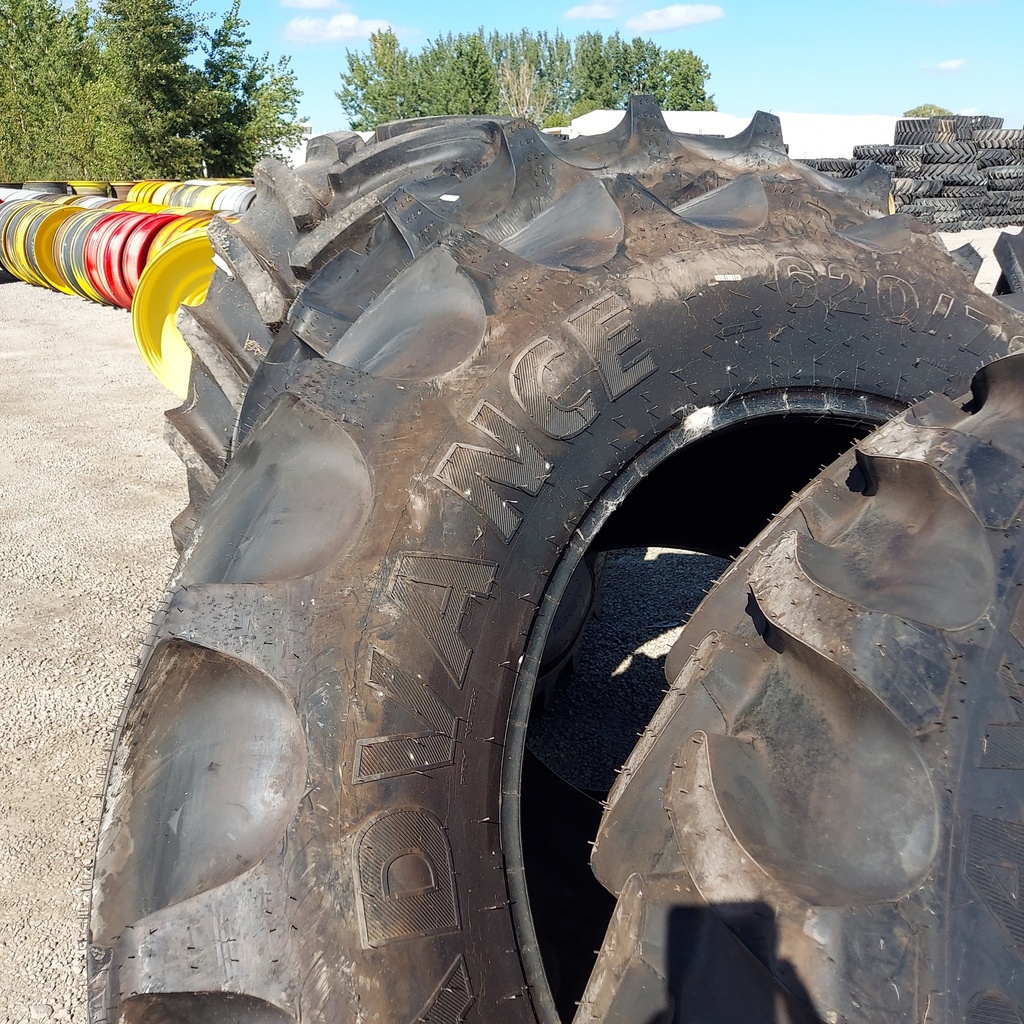

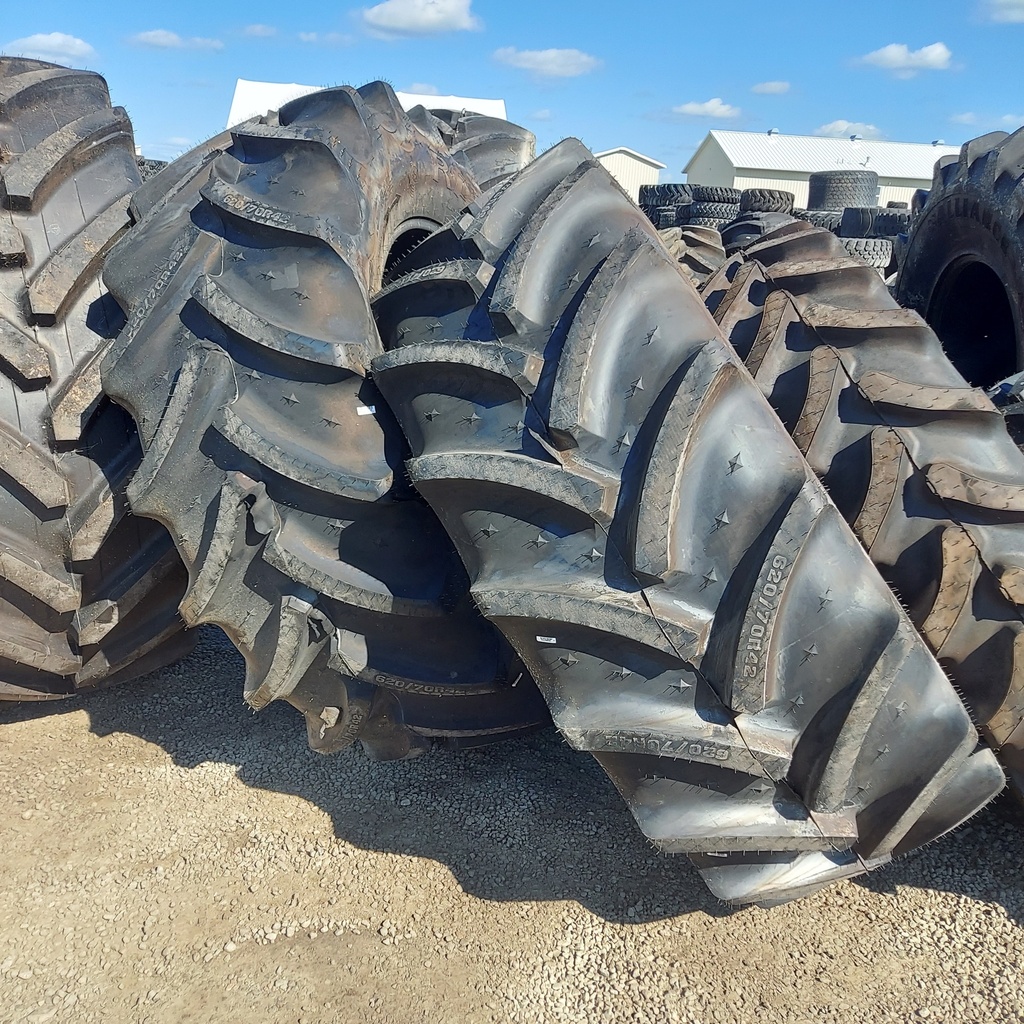

620/70R42 Advance Radial R-1W 160D 100%
Stock Number:
96145G
NEW
TIRE
Availability
2
Available for pickup
now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Radial Rear Position R-1W Traction Tire for Agricultural applications.
- Bar angle
- Heavy duty design
| Stock No. | 96145G |
| Brand | Advance |
| Model/Style | Radial |
| Tread Style | (R-1W) Agricultural Deep Tread/Wet Soil |
| Tire Size | 620/70R42 |
| Rim Width | 20" |
| Preferred Rim | |
| RCI Group | 47 (75.26" - 79.30") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 582.0 |
| Diameter | 76.7 |
| Width | 24.6 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 34.5 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 160D |
| Load Limit Single | 9900 lbs / 4490 kgs |
| Load Limit Dual | 8712 lbs / 3951 kgs |
| Load Limit Triple | 8118 lbs / 3682 kgs |
| Max PSI | 23 |
