10.00-20 BKT Tires EM 934 E-2 H (16 Ply), 146B 100%
Stock Number:
94048601
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications

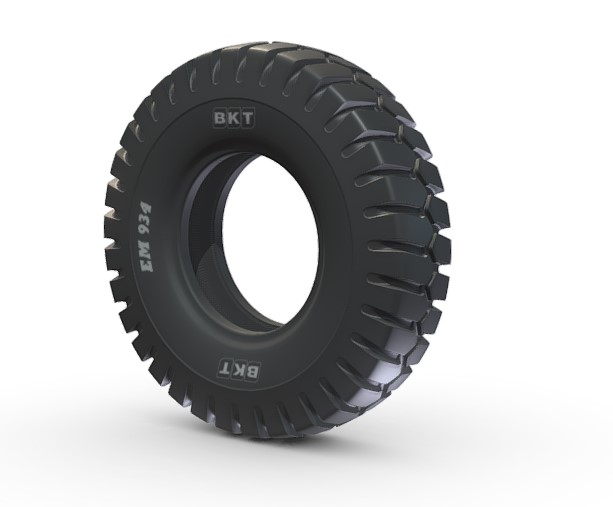

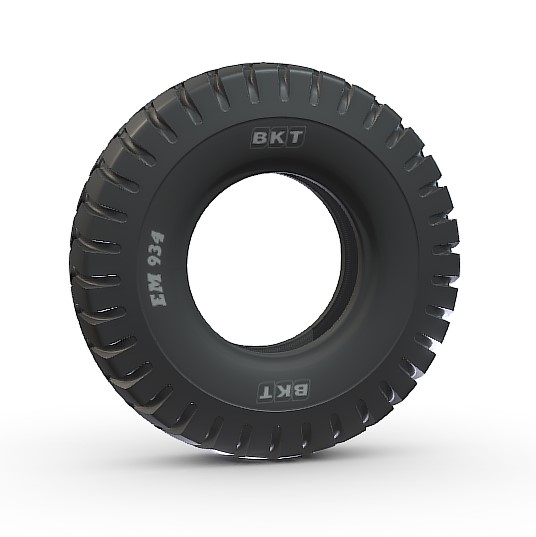

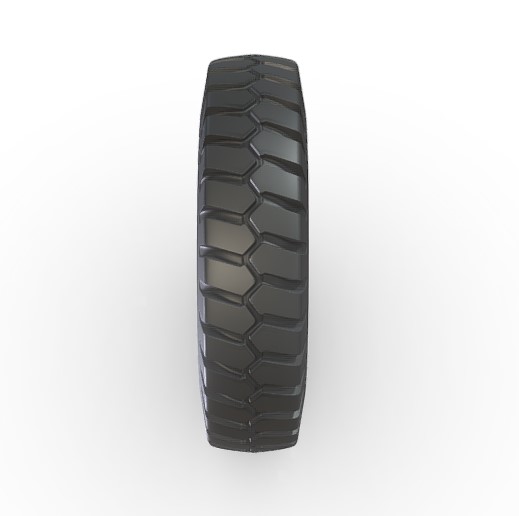

EM 934 has been specially designed for excavators in road construction applications. It shows excellent lateral traction as well as outstanding self-cleaning features. The unique tread compound offers cut and chip resistance whereas the strong casing provides a long service life.
- Cut and Chip Resistance
- Durability
- Self-Cleaning
- Traction
| Stock No. | 94048601 |
| Brand | BKT Tires |
| Model/Style | EM 934 |
| Tread Style | (E-2) Earthmover Traction Tread |
| Tire Size | 10.00-20 |
| Rim Width | 7.25", 7.5", 7.75", 7", 8" |
| Preferred Rim | |
| RCI Group | 35 (40.21" - 42.40") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TT) Tubetype |
| Weight | 108.0 |
| Diameter | 41.7 |
| Width | 11.0 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 19.7 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | H (16 Ply) |
| Load Index/Speed Rating | 146B |
| Load Limit Single | 6600 lbs / 2993 kgs |
| Load Limit Dual | 5808 lbs / 2634 kgs |
| Load Limit Triple | 5412 lbs / 2454 kgs |
| Max PSI | 109 |
