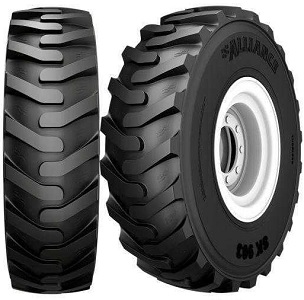

12-16.5 Alliance 903 Skid Steer R-4 E (10 Ply), 100%
Stock Number:
90300006
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Industrial Tractor/Construction Bias R-4 Specialized tire for Skid Steer Application.
- Open and deep shoulders
- Flatter radius for the tire
- Solid center lug
- Rim shield protector on sidewall
- Designed for traction on loose off-road surfaces
- For improved wear resistance
- For shock protection
| Stock No. | 90300006 |
| Brand | Alliance |
| Model/Style | 903 Skid Steer |
| Tread Style | (R-4) Agricultural Industrial Tractor |
| Tire Size | 12-16.5 |
| Rim Width | 9.75" |
| Preferred Rim | |
| RCI Group | 31 (32.66" - 34.35") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 58.0 |
| Diameter | 32.7 |
| Width | 12.1 |
| Rolling Circumference | 98.8 |
| Static Load Radius | 15.0 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | E (10 Ply) |
| Load Index/Speed Rating | |
| Load Limit Single | 0 lbs / 0 kgs |
| Load Limit Dual | 0 lbs / 0 kgs |
| Load Limit Triple | 0 lbs / 0 kgs |
| Max PSI | 65 |
