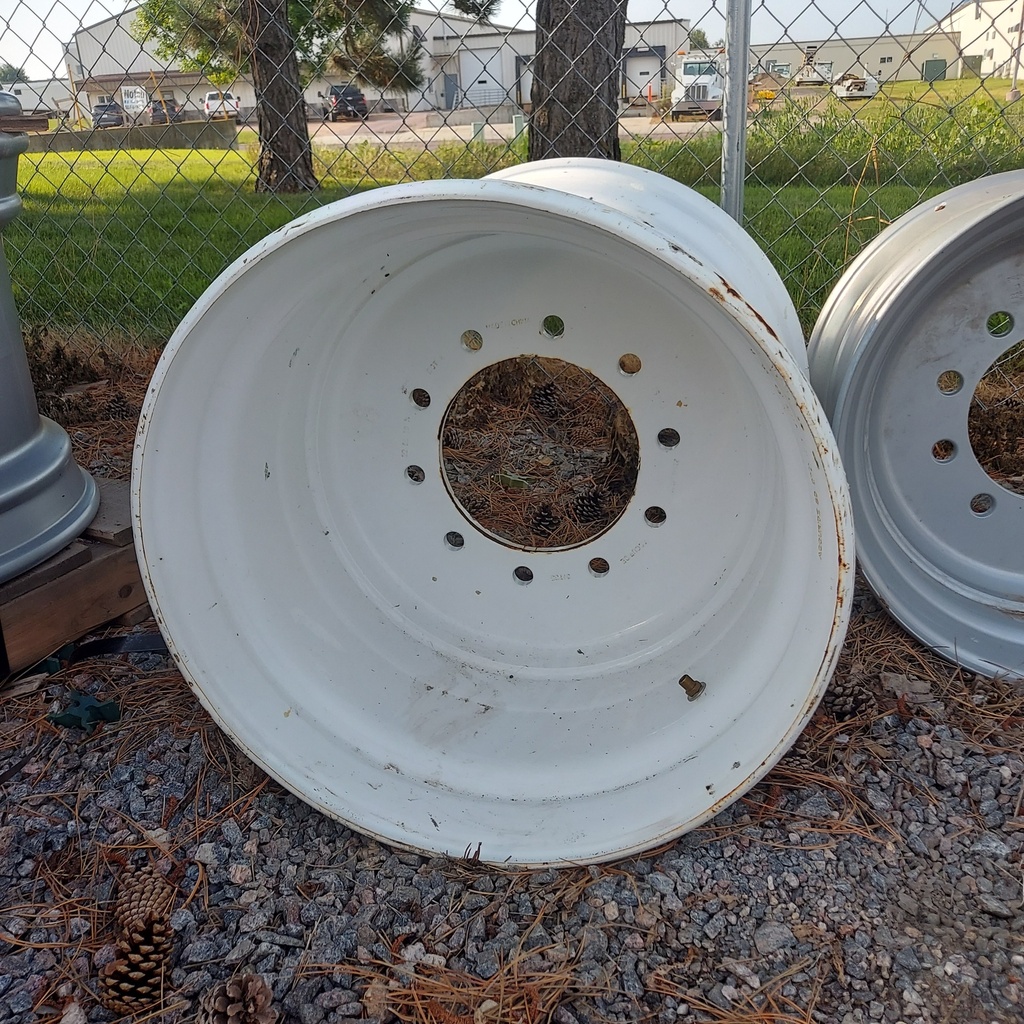

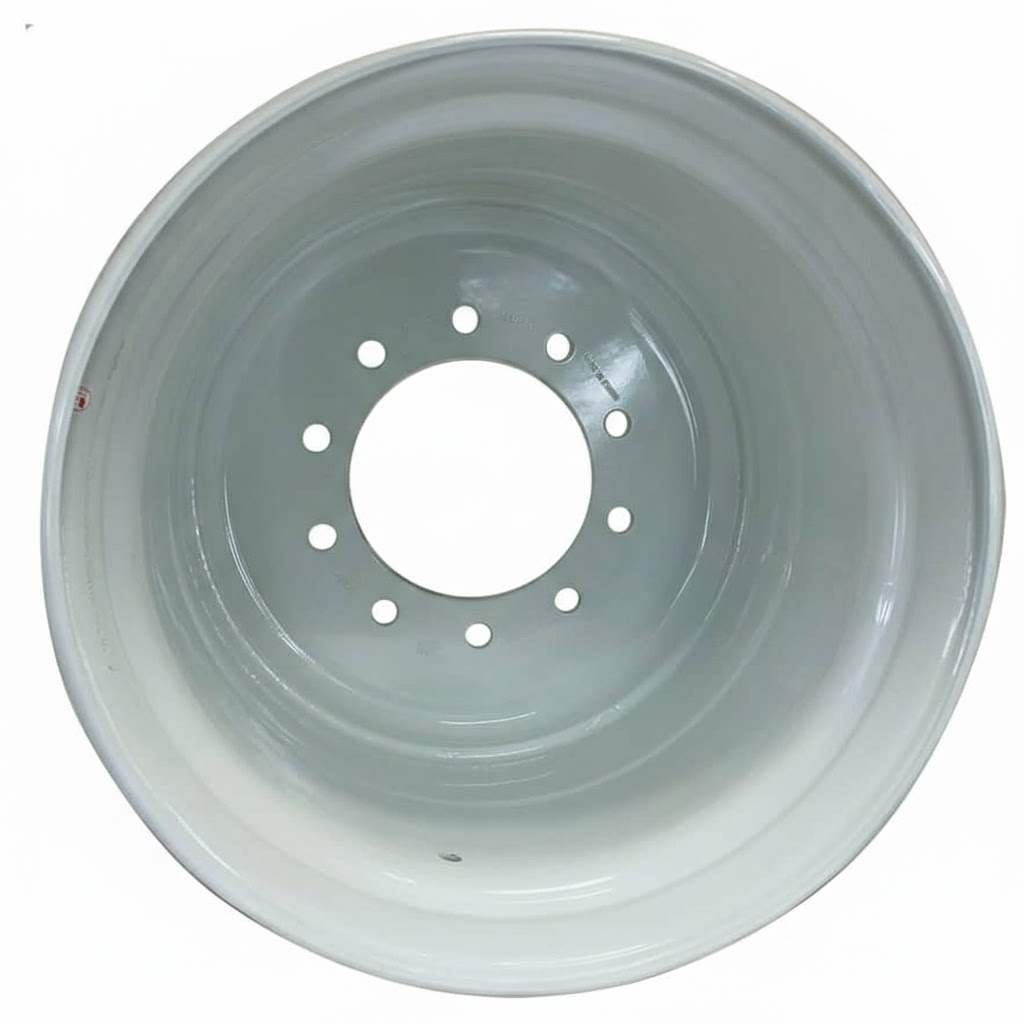

20"W x 22.5"D, Gloss White 10-Hole Hub Pilot , -1.62" Offset

Stock Number: 74571
NEW WHEEL

20X22.5 IMP 5/8" FORMED 10H
$ 509.00 $ 509.00

/ea
Add to cart
Contact Us
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Stock No. 74571
Brand Accuride
Model/Style Hub Pilot
Rim Design
Rim Diameter 22.5"
Rim Width 20"
Paint Color Gloss White
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location
Weight 157.0
Diameter 25.0
Width 22.0
Disc Thickness 0.625
Wheel Offset -1.625
Rim Backside 9.375
Rim Frontside 12.0
Rim Inside Diameter 0.0
Drop Center Width
Casting Diameter 0.0
Rim Material Thickness 0.268
Valve Hole Diameter
Bolt Hole Quantity 10
Bolt Circle Diameter 11.25
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.938
Pilot Hole 8.67
Bolt Countersink
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 12000.0
Rim Rating
