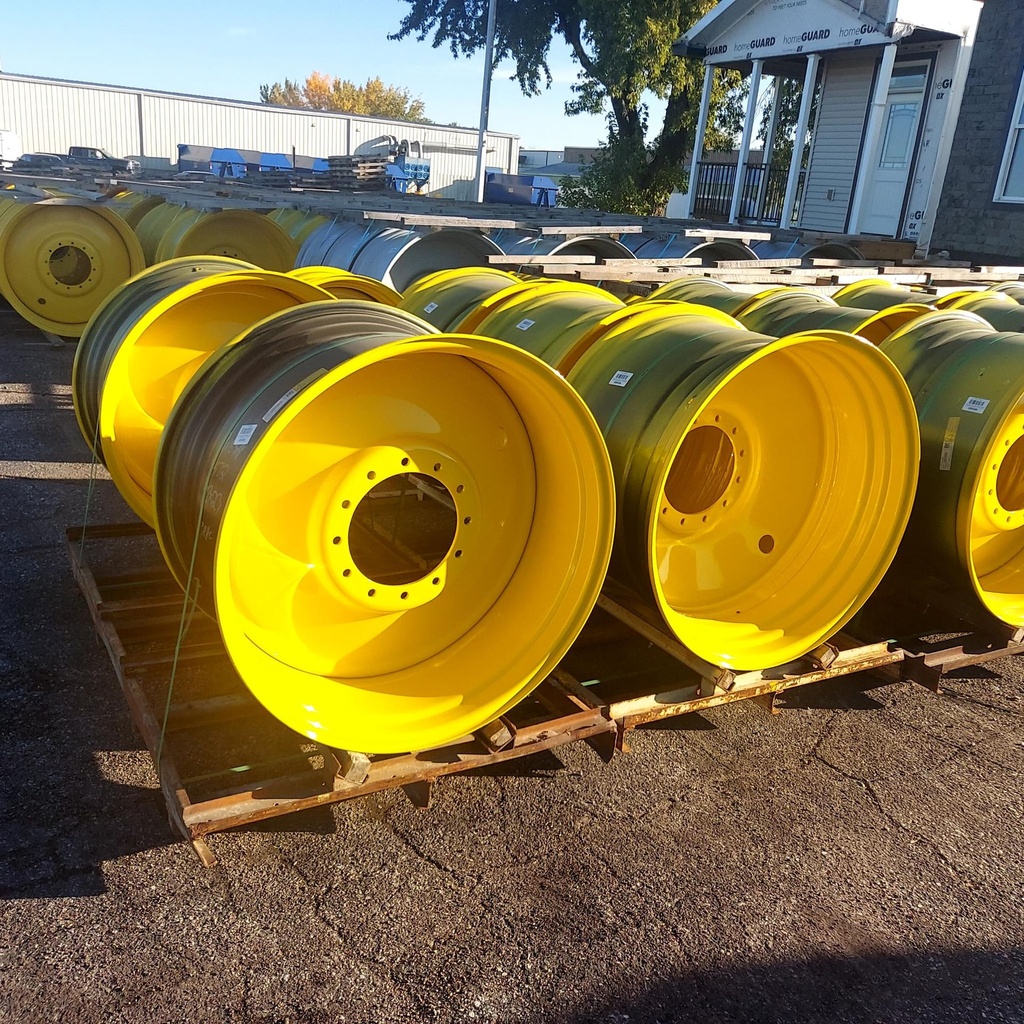

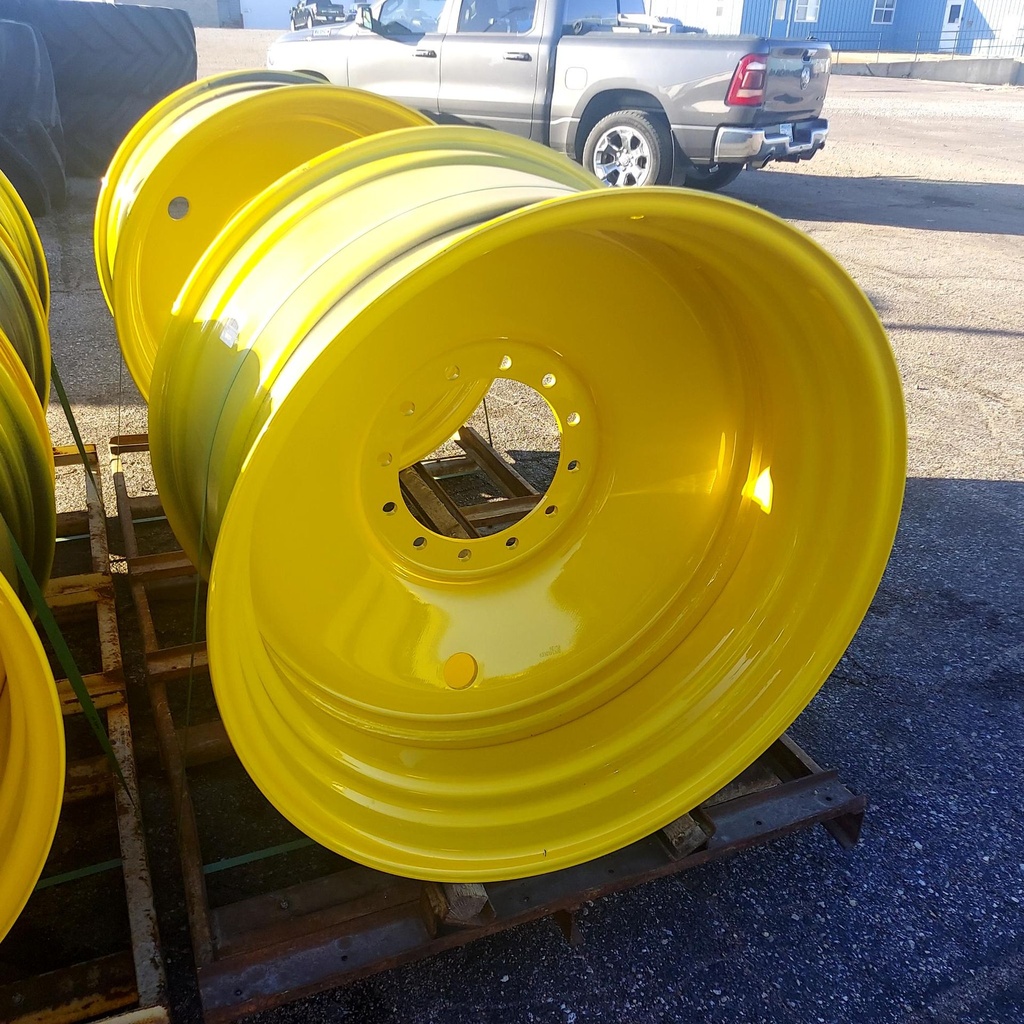

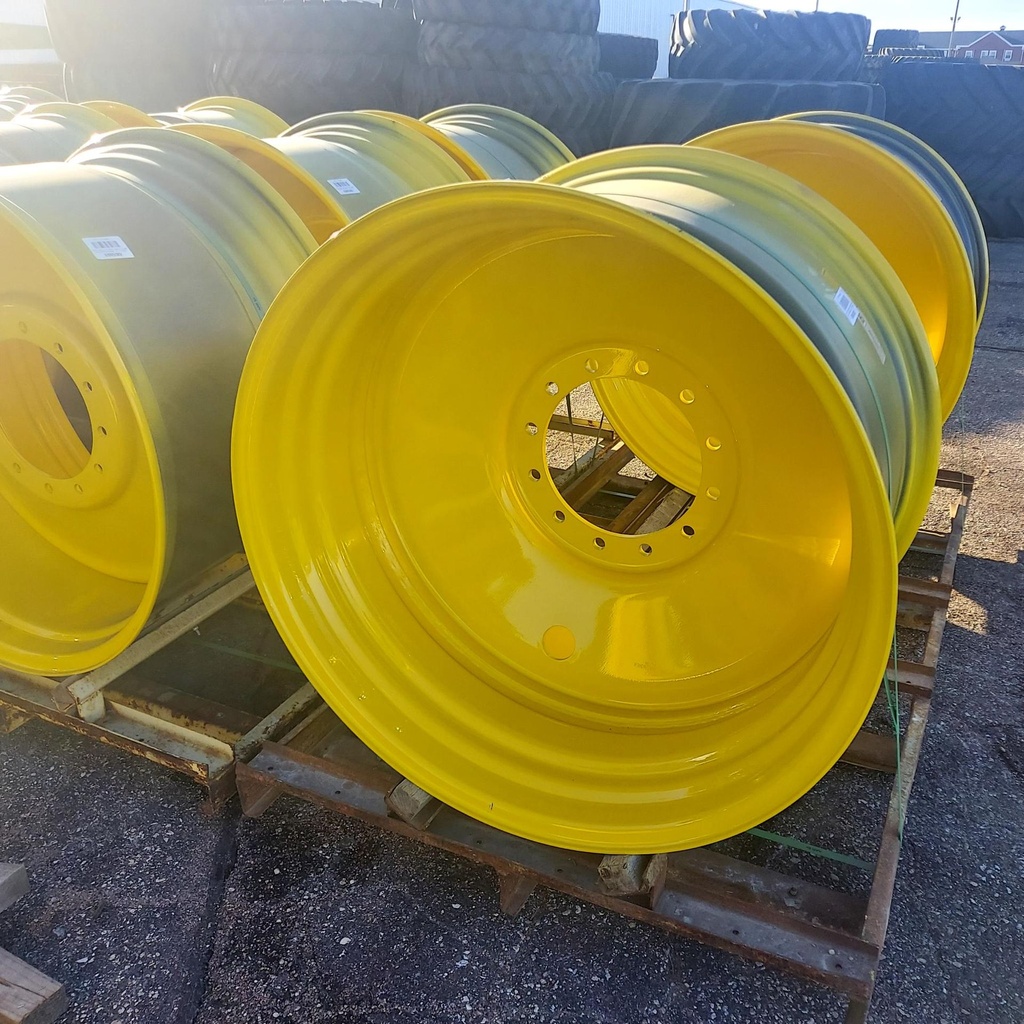

23"W x 38"D, John Deere Yellow 12-Hole Formed Plate Sprayer , -6.12" Offset

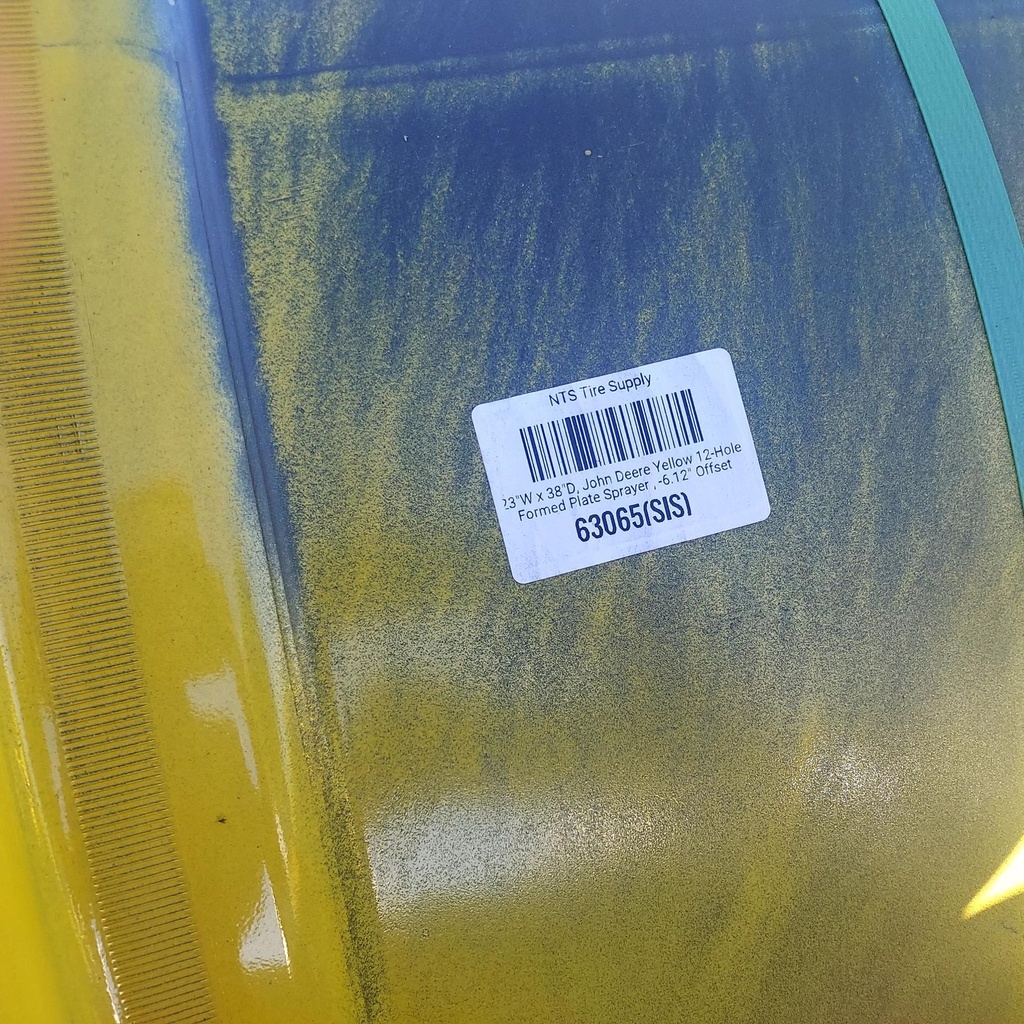

Stock Number: 63065(SIS)
NEW BLACK GOLD BARGAIN

Fits To:
JOHN DEERE 4830, R4030, R4038, R4044, 408R, 410R, 412R Sprayers
$ 750.00 $ 1,285.00

/ea
Add to cart
Contact Us
Availability
20 Available for pickup now at Redwood Falls, MN
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Stock No. 63065(SIS)
Brand Wold Wheel
Model/Style Formed Plate Sprayer
Rim Design
Rim Diameter 38"
Rim Width 23"
Paint Color John Deere Yellow
Weight Holes No
Flange Reinforcement No
Valve Guard No
Valve Hole Location
Weight 407.0
Diameter 40.5
Width 24.5
Disc Thickness 0.5
Wheel Offset -6.125
Rim Backside 6.125
Rim Frontside 17.875
Rim Inside Diameter 0.0
Drop Center Width
Casting Diameter 0.0
Rim Material Thickness 0.276
Valve Hole Diameter
Bolt Hole Quantity 12
Bolt Circle Diameter 13.976
Bolt Hole Size 22MM(7/8") Bolt
Actual Bolt Hole Size 0.938
Pilot Hole 11.85
Bolt Countersink
BtB Measurement 0.0
Lugs/Rails Quantity
Outside Bolt Hole Quantity 0
Outside Bolt Circle Diameter 0.0
Outside Bolt Hole Size
Outside Actual Bolt Hole Size 0.0
Outside Bolt Countersink
Outside BtB Measurement 0.0
Max Weight 0.0
Rim Rating
