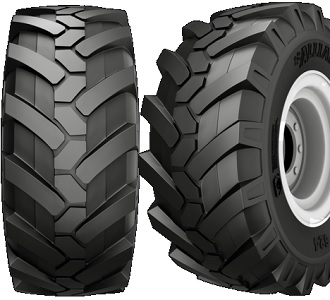

445/70R22.5 Alliance 624 MPT Steel Radial R-4 170D 100%

Stock Number: 62400110
NEW TIRE

$ 1,390.00 $ 1,390.00

/ea
Add to cart
Contact Us
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications

Industrial R-4 All-Steel Radial tire For Various Machine Applications.

  • Wide Base
  • Massive lugs with steep angle close to central line and lower angle close to shoulders
  • Massive center blocks
  • Robust sidewall construction with rim guards
  • Reinforced shoulder area
  • Suitable for heavy-duty service
Stock No. 62400110
Brand Alliance
Model/Style 624 MPT Steel Radial
Tread Style (R-4) Agricultural Industrial Tractor
Tire Size 445/70R22.5
Rim Width 14"
Preferred Rim
RCI Group 38 (46.96" - 49.65")
Casing Technology
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TL) Tubeless
Weight 271.0
Diameter 47.0
Width 17.9
Rolling Circumference 138.8
Static Load Radius 21.2
Flat Plate Area 0
Tread Width 0.0
Ply Rating
Load Index/Speed Rating 170D
Load Limit Single 13200 lbs / 5987 kgs
Load Limit Dual 11616 lbs / 5268 kgs
Load Limit Triple 10824 lbs / 4909 kgs
Max PSI 109
