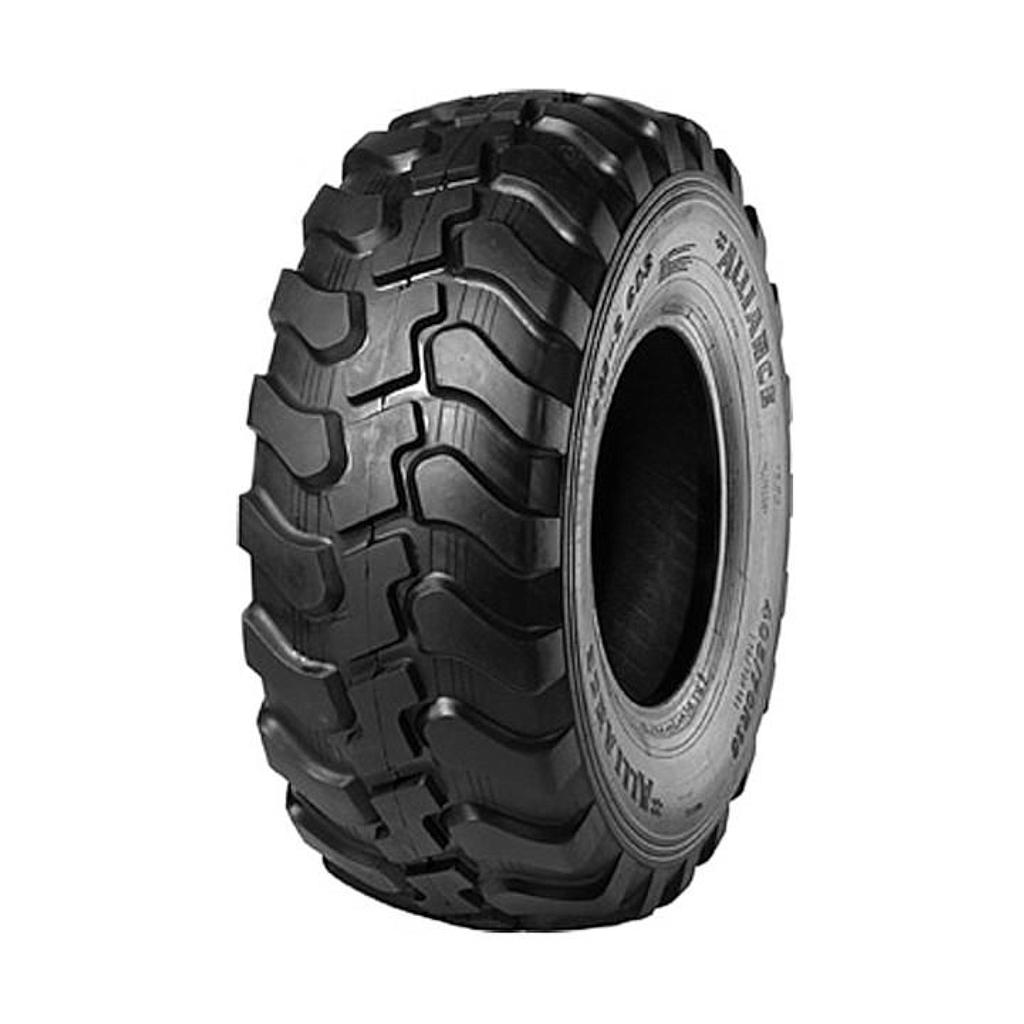

455/70R20 Alliance 580 Industrial Radial Backhoe E-2 150B 100%
Stock Number:
60800200
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Alliance 608 an innovative approach to compact machinery tire design. It provides low motion resistance which contributes to lower fuel consumption of compact machines. The tire’s tread pattern is an optimized on/off road pattern with shoulder lugs for traction in the fields, as well as long tread life because of massive central blocks when machine works on harder surfaces. The tire construction includes both, all fabric and steel belted variants.
| Stock No. | 60800200 |
| Brand | Alliance |
| Model/Style | 580 Industrial Radial Backhoe |
| Tread Style | (E-2) Earthmover Traction Tread |
| Tire Size | 455/70R20 |
| Rim Width | 14" |
| Preferred Rim | |
| RCI Group | 37 (44.61" - 46.95") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 165.0 |
| Diameter | 45.1 |
| Width | 17.5 |
| Rolling Circumference | 136.4 |
| Static Load Radius | 20.4 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 150B |
| Load Limit Single | 7400 lbs / 3356 kgs |
| Load Limit Dual | 6512 lbs / 2953 kgs |
| Load Limit Triple | 6068 lbs / 2752 kgs |
| Max PSI | 54 |
