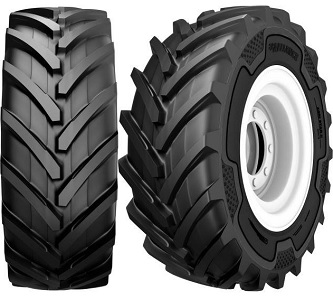

420/70R24 Alliance 470 Agristar II R-1W 130D 100%

Stock Number: 47000005
NEW TIRE

$ 872.63 $ 872.63

/ea
Add to cart
Contact Us
Availability
0 Available for pickup now at Redwood Falls, MN
3 Available for pickup by Tuesday, November 03
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications

Agricultural Radial R-1W Tractor tire. High Speed 'D' Rated.

  • Stratified layer technology combines a multi-angle and single-angle lug
  • Stubble guard compound
  • Wide lug contact area and overlapping lug centers
  • Dual step tie-bars
  • Robust polyester casing construction and wear resistant compounds
  • For enhanced traction in the field, better wear resistance and safer braking on the road
  • Protects against cuts and cracks in the lugs
  • For better fuel economy, lower soil compaction and more comfortable roading
  • Prevent lug breakdown from shuffling and act as a mud breaker for reliable self-cleaning
  • Give you longer life and more value per 32nd than the competition
Stock No. 47000005
Brand Alliance
Model/Style 470 Agristar II
Tread Style (R-1W) Agricultural Deep Tread/Wet Soil
Tire Size 420/70R24
Rim Width 12.25", 12.5", 12", 13.5", 13", 14"
Preferred Rim
RCI Group 38 (46.96" - 49.65")
Casing Technology
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TL) Tubeless
Weight 182.0
Diameter 49.2
Width 17.0
Rolling Circumference 145.3
Static Load Radius 22.0
Flat Plate Area 0
Tread Width 0.0
Ply Rating
Load Index/Speed Rating 130D
Load Limit Single 4180 lbs / 1896 kgs
Load Limit Dual 3678 lbs / 1668 kgs
Load Limit Triple 3427 lbs / 1554 kgs
Max PSI 23
