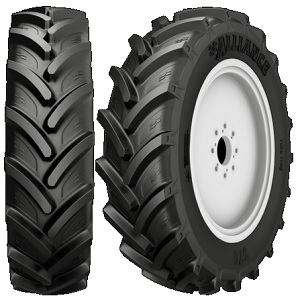

520/70-38 Alliance 370 Agro Forestry SB R-1 G (14 Ply), 155A8 100%
Stock Number:
37055222
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Agricultural and Forestry Wide-Base Radial Tractor tire Designed for High-Horsepower Tractors Used in Heavy-Duty Field and Hauling Applications.
- Special rubber tread compound combined with strong steel breakers
- Special R-1W traction tread pattern with radial nylon casing, rigid belts, mudguard and unique shoulder design
- Large tire footprint area
- Provide effective puncture resistance, enabling safe and efficient work in the forest
- Ensure excellent grip and high traction efficiency
- Reduces average ground pressure, minimizes soil compaction and increases flotation ability
- Provides higher load capacity (about 10% more) at the same inflation pressure compared with standard
| Stock No. | 37055222 |
| Brand | Alliance |
| Model/Style | 370 Agro Forestry SB |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 520/70-38 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 45 (67.71" - 71.40") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 405.0 |
| Diameter | 69.2 |
| Width | 20.5 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 32.2 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | G (14 Ply) |
| Load Index/Speed Rating | 155A8 |
| Load Limit Single | 8550 lbs / 3878 kgs |
| Load Limit Dual | 7524 lbs / 3412 kgs |
| Load Limit Triple | 7011 lbs / 3180 kgs |
| Max PSI | 36 |
