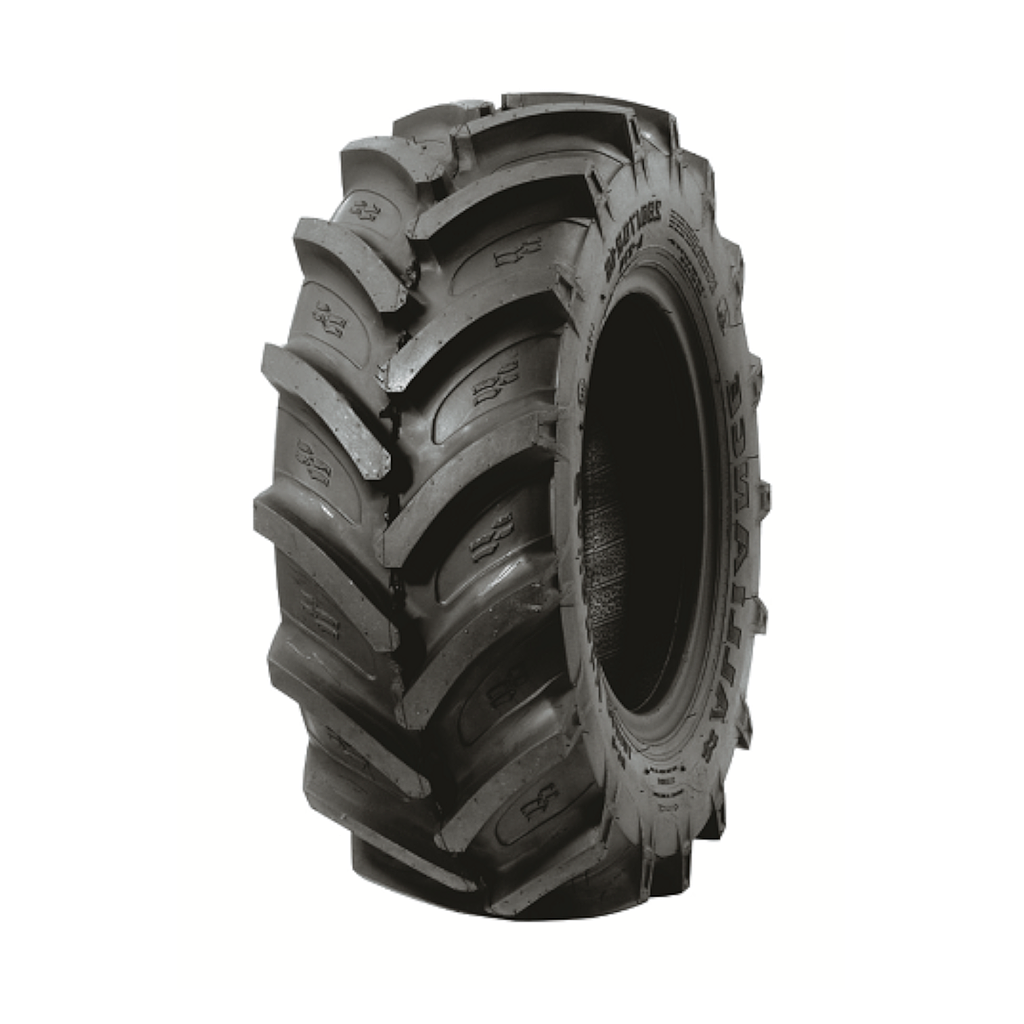

480/70R28 Alliance 370 Wide Deep Tread "70" Series R-1W 137B 100%
Stock Number:
37048003
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
The Alliance 370 is a wide-base radial tractor tire designed for high-horsepower tractors used in heavy-duty field and hauling jobs. Designed to perform at higher load capacities without increasing air pressure, the tire offers maximum compaction protection.
| Stock No. | 37048003 |
| Brand | Alliance |
| Model/Style | 370 Wide Deep Tread "70" Series |
| Tread Style | (R-1W) Agricultural Deep Tread/Wet Soil |
| Tire Size | 480/70R28 |
| Rim Width | 14.25", 14.5", 14.63", 14", 15.5", 15", 16" |
| Preferred Rim | |
| RCI Group | 41 (54.96" - 57.80") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 232.0 |
| Diameter | 56.0 |
| Width | 18.9 |
| Rolling Circumference | 165.0 |
| Static Load Radius | 25.2 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 137B |
| Load Limit Single | 5080 lbs / 2304 kgs |
| Load Limit Dual | 4470 lbs / 2027 kgs |
| Load Limit Triple | 4165 lbs / 1889 kgs |
| Max PSI | 23 |
