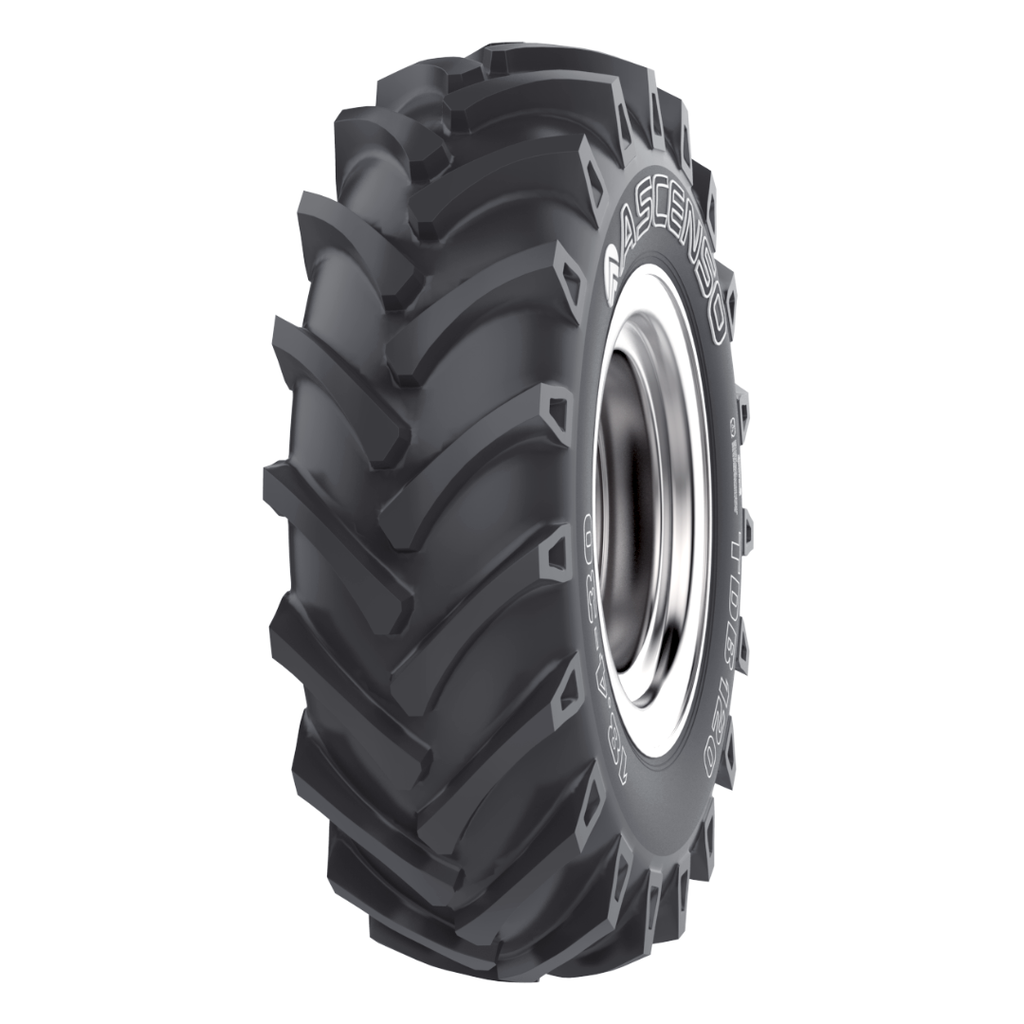

18.4-38 Ascenso TDB120 R-1 D (8 Ply), 143A8 100%
Stock Number:
3001030021
NEW
TIRE
Availability
0
Available for pickup
now at Redwood Falls, MN
2
Available for pickup
by
Friday, September 05
53
Available for pickup
by
Tuesday, September 09
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
The Ascenso TDB 120 is an all season tire manufactured for tractors. The tire offers excellent field terrain traction.
- Designed for use on tractors in agricultural applications
- Tubeless construction
- R-1 tread pattern enhances traction by digging into the soil and forcing debris out of the tread
- Built with a strong nylon carcass that increases strength and durability for a higher load carrying capacity and less downtime
- Sturdy sidewalls guard the tire against cuts, chips, and abrasions for a longer service life
| Stock No. | 3001030021 |
| Brand | Ascenso |
| Model/Style | TDB120 |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 18.4-38 |
| Rim Width | 15", 16" |
| Preferred Rim | W16L |
| RCI Group | 45 (67.71" - 71.40") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TT) Tubetype |
| Weight | 242.0 |
| Diameter | 69.1 |
| Width | 18.4 |
| Rolling Circumference | 206.7 |
| Static Load Radius | 31.9 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | D (8 Ply) |
| Load Index/Speed Rating | 143A8 |
| Load Limit Single | 6000 lbs / 2721 kgs |
| Load Limit Dual | 5280 lbs / 2395 kgs |
| Load Limit Triple | 4920 lbs / 2231 kgs |
| Max PSI | 20 |
