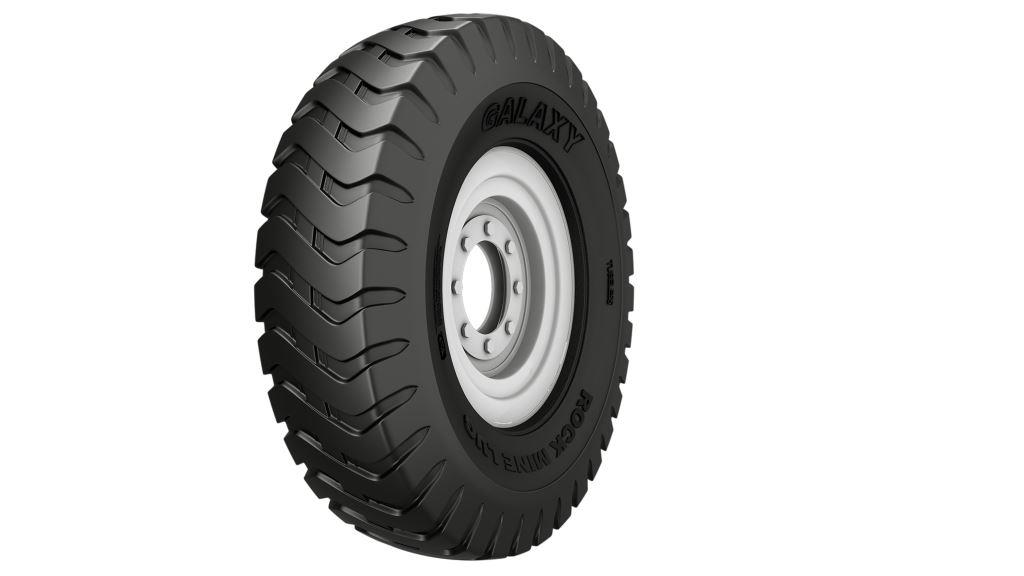

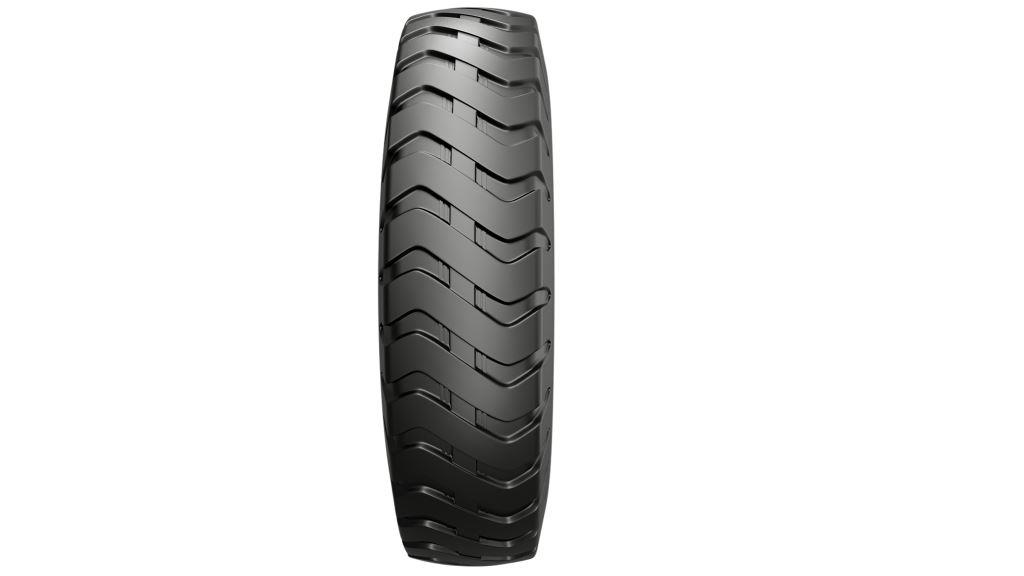

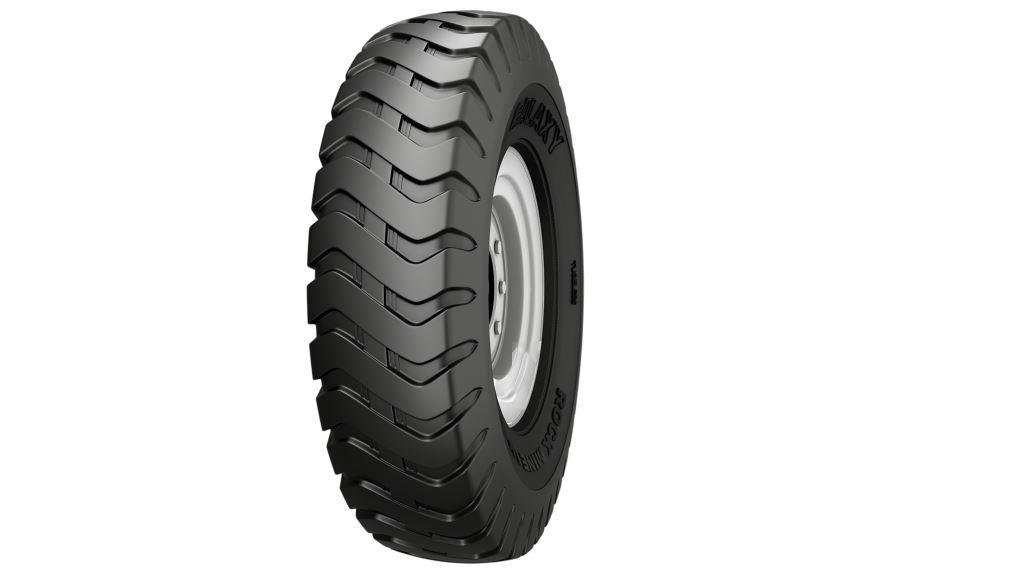

10.00-20 Galaxy Rock Mine Lug E-3 J (18 Ply), 100%
Stock Number:
300042
NEW
TIRE
Availability
Call for Availability
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Built from moulds originally designed for earthmoving operations, the Rock Mine Lug E-3 is ideal for use on tipper that are operated under conditions requiring a super strong tire that wears like iron and is resistant to sidewall punctures.
- Super strong tire
- Resistant to sidewall punctures and wears like iron
Stock No. | 300042 |
Brand | Galaxy |
Model/Style | Rock Mine Lug |
Tread Style | (E-3) Earthmover Rock Regular Tread |
Tire Size | 10.00-20 |
Rim Width | 7.5" |
Preferred Rim | |
RCI Group | 35 (40.21" - 42.40") |
Casing Technology | |
Casing Application | |
Tire Compound | |
Belt Construction | |
Sidewall Style | |
TT/TL | (TT) Tubetype |
Weight | 138.0 |
Diameter | 42.1 |
Width | 11.1 |
Rolling Circumference | 0.0 |
Static Load Radius | 20.0 |
Flat Plate Area | 0 |
Tread Width | 0.0 |
Ply Rating | J (18 Ply) |
Load Index/Speed Rating | |
Load Limit Single | 0 lbs / 0 kgs |
Load Limit Dual | 0 lbs / 0 kgs |
Load Limit Triple | 0 lbs / 0 kgs |
Max PSI | 110 |
