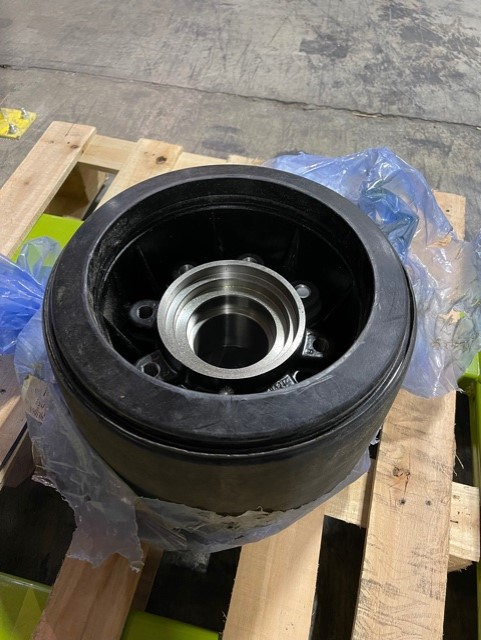

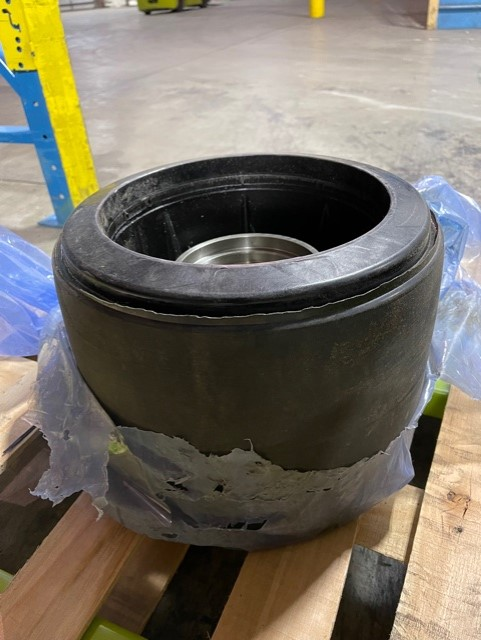

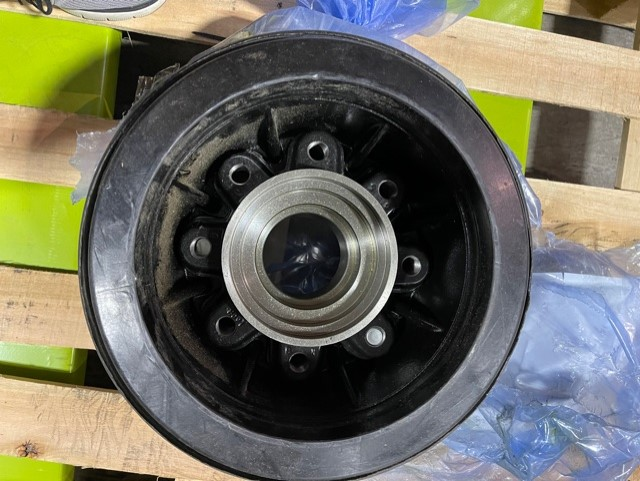

10.5" Wide Mid-Roller Bogie Wheel for Case IH STX Quadtrac Tractors Bolt-On 2 piece Midroller conversion kit
Stock Number:
2A-AMR0051
NEW
TRACK UNDERCARRIAGE
CORE EXCHANGE REQUIRED!!! (+$125 if no Core),
Only fits Case-IH Quad Tracks built after tractor serial number JEE0107427
2 Piece Midroller Conversion Kit (2W-AMR0051) Includes:
(1pc) Rubber over Polyurethane Midroller
(1pc) Soucy Midroller Hub
(8pcs) M16 Mounting Bolt
(8pcs) Mounting Washer
Installation Instructions
Replacement for OEM Part Numbers: 87438307, 47487680, 87309812, 379715A1, 47827305, 48065297, 84162383, 48065298
Availability
Call for Availability
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Mid Roller
| Stock No. | 2A-AMR0051 |
| Brand | Soucy Undercarriage |
| Model/Style | Mid-Roller Bogie Wheel |
| Hub Design | |
| Track Width Compatibility | |
| Cap Material | |
| Weight | 95.0 |
| Diameter | 13.4 |
| Width | 10.5 |
| Bolt Hole Quantity | 8 |
| Bolt Circle Diameter | 8.0 |
| Bolt Hole Size | |
| Actual Bolt Hole Size | 0.0 |
| Inside Diameter | 0.0 |
