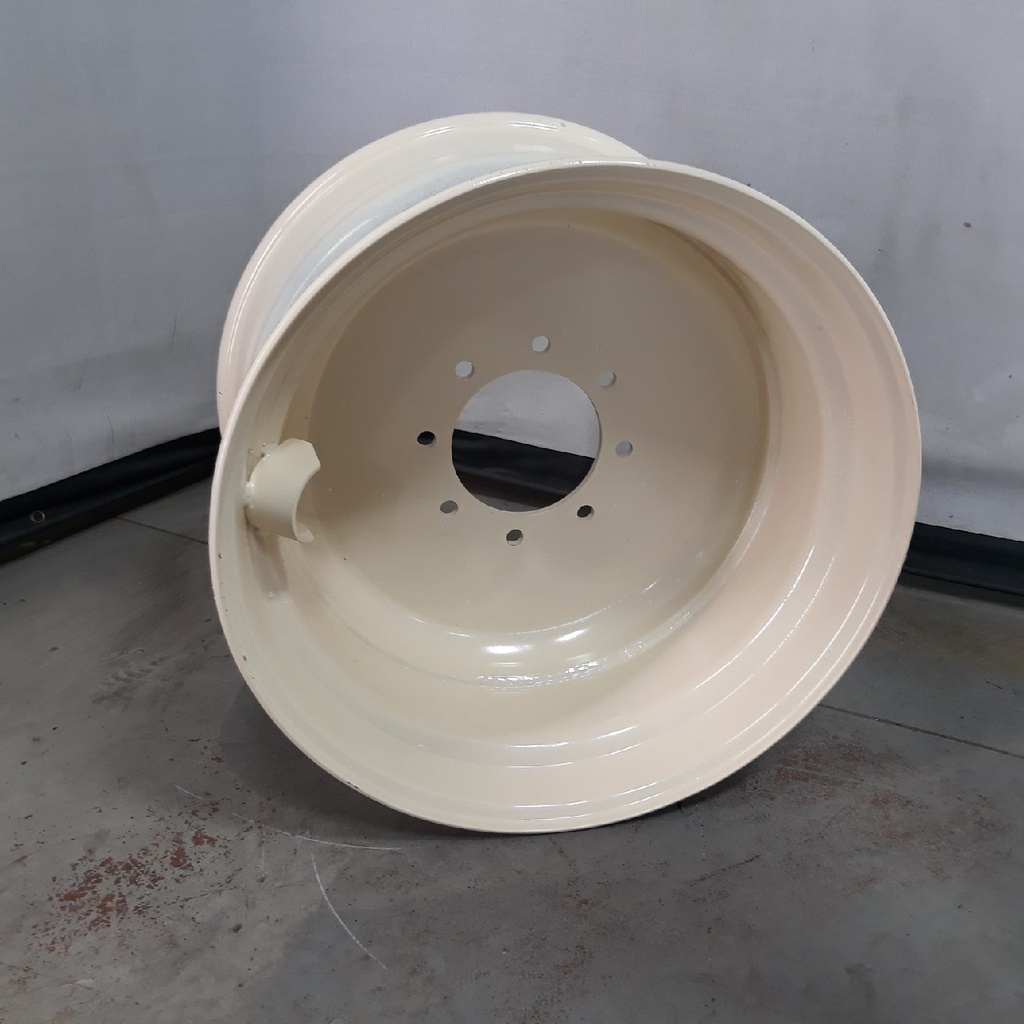

13"W x 22.5"D, Off White 8-Hole Formed Plate
Stock Number:
225.13.126.6
NEW
WHEEL
225.13.CGR.6
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
| Stock No. | 225.13.126.6 |
| Brand | Pronar Wheel |
| Model/Style | Formed Plate |
| Rim Design | |
| Rim Diameter | 22.5" |
| Rim Width | 13" |
| Paint Color | Off White |
| Weight Holes | No |
| Flange Reinforcement | No |
| Valve Guard | No |
| Valve Hole Location | |
| Weight | 115.0 |
| Diameter | 25.0 |
| Width | 14.5 |
| Disc Thickness | 0.394 |
| Wheel Offset | -1.6440000000000001 |
| Rim Backside | 5.606 |
| Rim Frontside | 8.5 |
| Rim Inside Diameter | 0.0 |
| Drop Center Width | |
| Casting Diameter | 0.0 |
| Rim Material Thickness | 0.0 |
| Valve Hole Diameter | |
| Bolt Hole Quantity | 8 |
| Bolt Circle Diameter | 8.0 |
| Bolt Hole Size | 16MM(5/8") Stud |
| Actual Bolt Hole Size | 0.688 |
| Pilot Hole | 6.0 |
| Bolt Countersink | |
| BtB Measurement | 0.0 |
| Lugs/Rails Quantity | |
| Outside Bolt Hole Quantity | 0 |
| Outside Bolt Circle Diameter | 0.0 |
| Outside Bolt Hole Size | |
| Outside Actual Bolt Hole Size | 0.0 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Max Weight | 12000.0 |
| Rim Rating |
