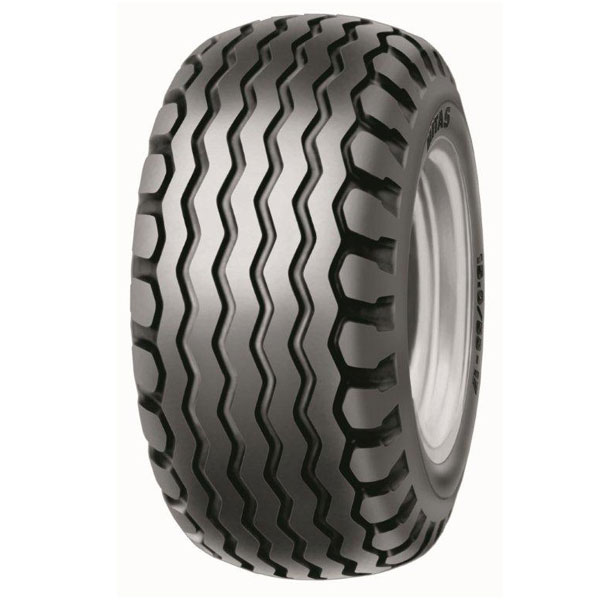

10/75-15.3 Mitas IM-04 I-1 F (12 Ply), 125A8 100%
Stock Number:
2000061340101
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Mitas implement non traction tires with a modern universal tread pattern.
- Mitas tires suitable for crop processing and green area equipment.
- Tested and proven universal tread pattern design ensures less soil compaction.
- Smooth on-road and produces less noise due to low vibration.
- Cost-efficient and productive thanks to high performance in fields.
| Stock No. | 2000061340101 |
| Brand | Mitas |
| Model/Style | IM-04 |
| Tread Style | (I-1) Agricultural Rib Implement |
| Tire Size | 10/75-15.3 |
| Rim Width | 9" |
| Preferred Rim | |
| RCI Group | 29 (29.36" - 31.00") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TT) Tubetype |
| Weight | 33.0 |
| Diameter | 29.9 |
| Width | 10.4 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 13.8 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | F (12 Ply) |
| Load Index/Speed Rating | 125A8 |
| Load Limit Single | 3640 lbs / 1651 kgs |
| Load Limit Dual | 3203 lbs / 1452 kgs |
| Load Limit Triple | 2984 lbs / 1353 kgs |
| Max PSI | 69 |
