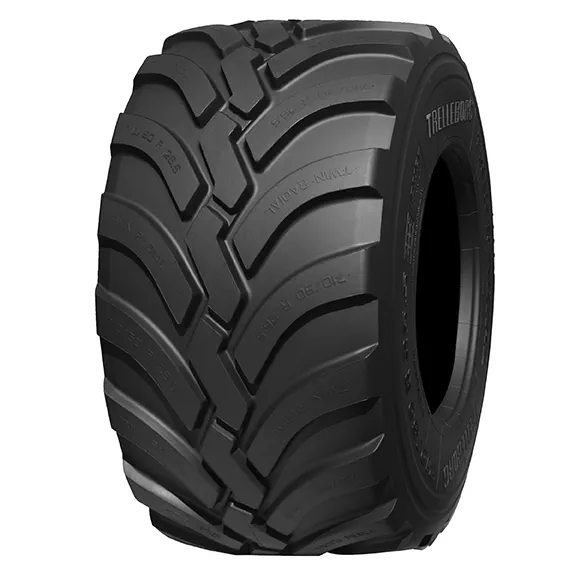

500/60R22.5 Trelleborg Twin Radial R-1 155D 100%
Stock Number:
1325500
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
The first Trelleborg radial implement tire, perfect in all working conditions and on any type of soil.
- Excellent ground care due to the wide area of footprint and the rounded profile of the shoulder. The central "block structure" enables the tire to self-clean efficiently and rapidly.
- High speed and maximised road handling even in high stress conditions.
- Great comfort and excellent even wear due to the sidewall profile and tread design.
- High load capacity and excellent traction when used as a drive wheel and at the same time offering minimum rolling resistance when in free-rolling mode.
| Stock No. | 1325500 |
| Brand | Trelleborg |
| Model/Style | Twin Radial |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 500/60R22.5 |
| Rim Width | 15.5", 15", 16", 17" |
| Preferred Rim | |
| RCI Group | 37 (44.61" - 46.95") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 214.0 |
| Diameter | 46.9 |
| Width | 20.5 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 21.1 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 155D |
| Load Limit Single | 8550 lbs / 3878 kgs |
| Load Limit Dual | 7524 lbs / 3412 kgs |
| Load Limit Triple | 7011 lbs / 3180 kgs |
| Max PSI | 58 |
