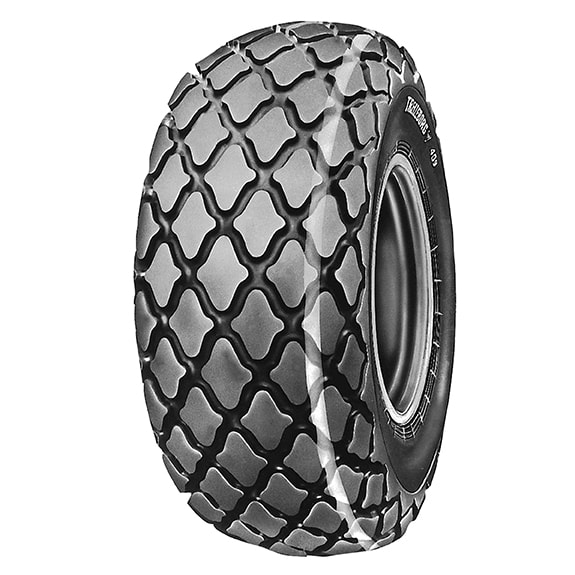

23.1-26 Trelleborg T409 Industrial Tractor R-3 145A8 100%
Stock Number:
1106100
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Specially designed for grass and sensitive ground conditions. This tire is also flexible for both soft and hard surfaces. Its soft carcass design, considerate tread pattern and low ground pressure all contribute to no track formation and very little soil compaction.
- Specially designed for grass and sensitive ground conditions
Stock No. | 1106100 |
Brand | Trelleborg |
Model/Style | T409 Industrial Tractor |
Tread Style | (R-3) Agricultural Shallow Turf Tread |
Tire Size | 23.1-26 |
Rim Width | 20" |
Preferred Rim | |
RCI Group | 42 (57.81" - 61.00") |
Casing Technology | |
Casing Application | |
Tire Compound | |
Belt Construction | |
Sidewall Style | |
TT/TL | (TL) Tubeless |
Weight | 234.0 |
Diameter | 60.8 |
Width | 24.0 |
Rolling Circumference | 0.0 |
Static Load Radius | 25.3 |
Flat Plate Area | 0 |
Tread Width | 0.0 |
Ply Rating | |
Load Index/Speed Rating | 145A8 |
Load Limit Single | 6400 lbs / 2903 kgs |
Load Limit Dual | 5632 lbs / 2554 kgs |
Load Limit Triple | 5248 lbs / 2380 kgs |
Max PSI | 20 |
