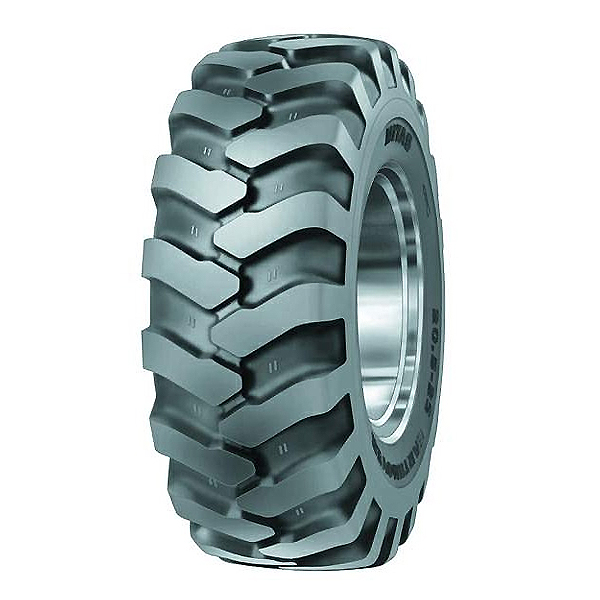

10.00-20 Mitas NB38 IND H (16 Ply), 146B 100%
Stock Number:
1012102850000
NEW
TIRE
Availability
Call for Availability
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Classic tread pattern profile for universal application with good traction and self-cleaning properties.
- classic tread patterns
- non-directional tread patterns for universal applications
- new-generation tires relevant for high power modern excavators.
- provide excellent traction
- higher puncture resistance
- optimized tread wear
- can also be used on powered wheels
Stock No. | 1012102850000 |
Brand | Mitas |
Model/Style | NB38 |
Tread Style | (IND) Industrial/Forklift Tread |
Tire Size | 10.00-20 |
Rim Width | 7.5" |
Preferred Rim | |
RCI Group | 35 (40.21" - 42.40") |
Casing Technology | |
Casing Application | |
Tire Compound | |
Belt Construction | |
Sidewall Style | |
TT/TL | (TT) Tubetype |
Weight | 103.14 |
Diameter | 41.3 |
Width | 10.8 |
Rolling Circumference | 0.0 |
Static Load Radius | 19.6 |
Flat Plate Area | 0 |
Tread Width | 0.0 |
Ply Rating | H (16 Ply) |
Load Index/Speed Rating | 146B |
Load Limit Single | 6600 lbs / 2993 kgs |
Load Limit Dual | 5808 lbs / 2634 kgs |
Load Limit Triple | 5412 lbs / 2454 kgs |
Max PSI | 109 |
