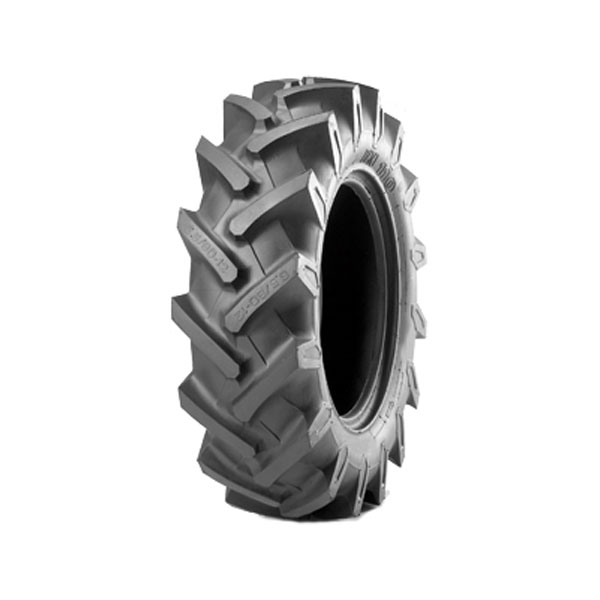

10.0/75-15.3 Trelleborg IM110 Implement I-3 D (8 Ply), 119A8 100%
Stock Number:
0207700
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Suitable for use on medium-low powered farm machinery, the lug shape and groove base of the IM110, with its inter-lug terraces and veining, gives excellent traction. The differentiated rigidity of the whole tire section also enables it to keep itself clean, thus further improving traction.
- The tread pattern allows maximum use of this tire in both field and road operations
| Stock No. | 0207700 |
| Brand | Trelleborg |
| Model/Style | IM110 Implement |
| Tread Style | (I-3) Agricultural Implement Traction Tread |
| Tire Size | 10.0/75-15.3 |
| Rim Width | 10", 9.25", 9.38", 9.5", 9.75", 9.88", 9" |
| Preferred Rim | |
| RCI Group | 30 (31.01" - 32.65") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TT) Tubetype |
| Weight | 40.9 |
| Diameter | 31.5 |
| Width | 10.2 |
| Rolling Circumference | 94.0 |
| Static Load Radius | 14.1 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | D (8 Ply) |
| Load Index/Speed Rating | 119A8 |
| Load Limit Single | 3000 lbs / 1360 kgs |
| Load Limit Dual | 2640 lbs / 1197 kgs |
| Load Limit Triple | 2460 lbs / 1115 kgs |
| Max PSI | 44 |
