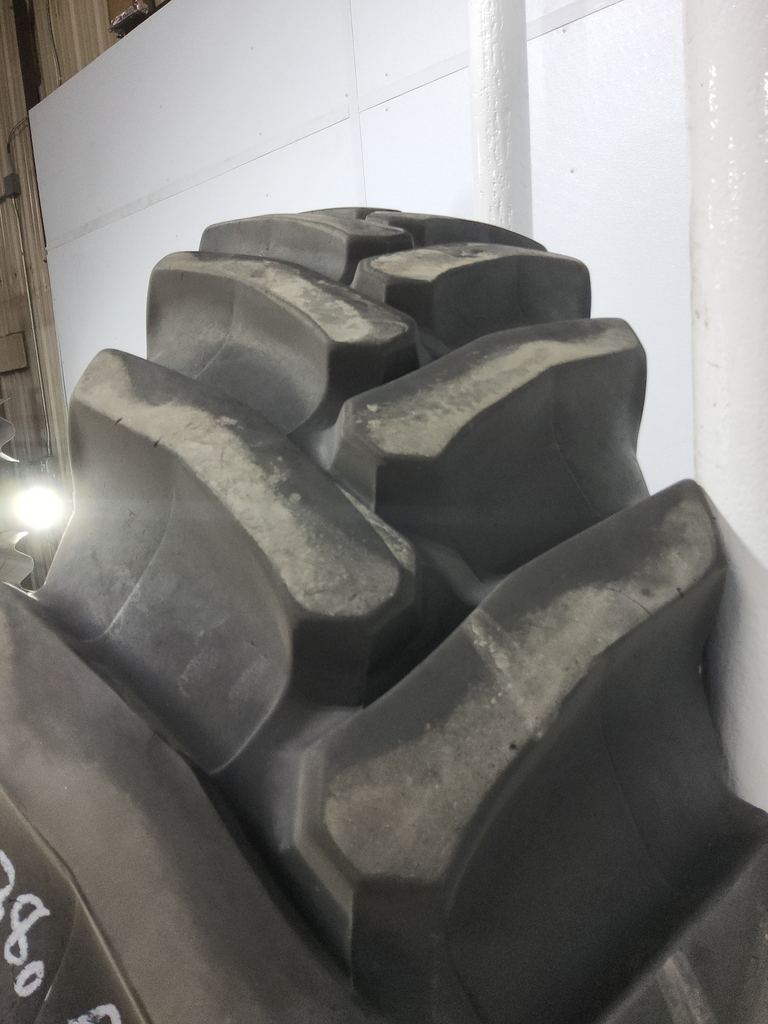

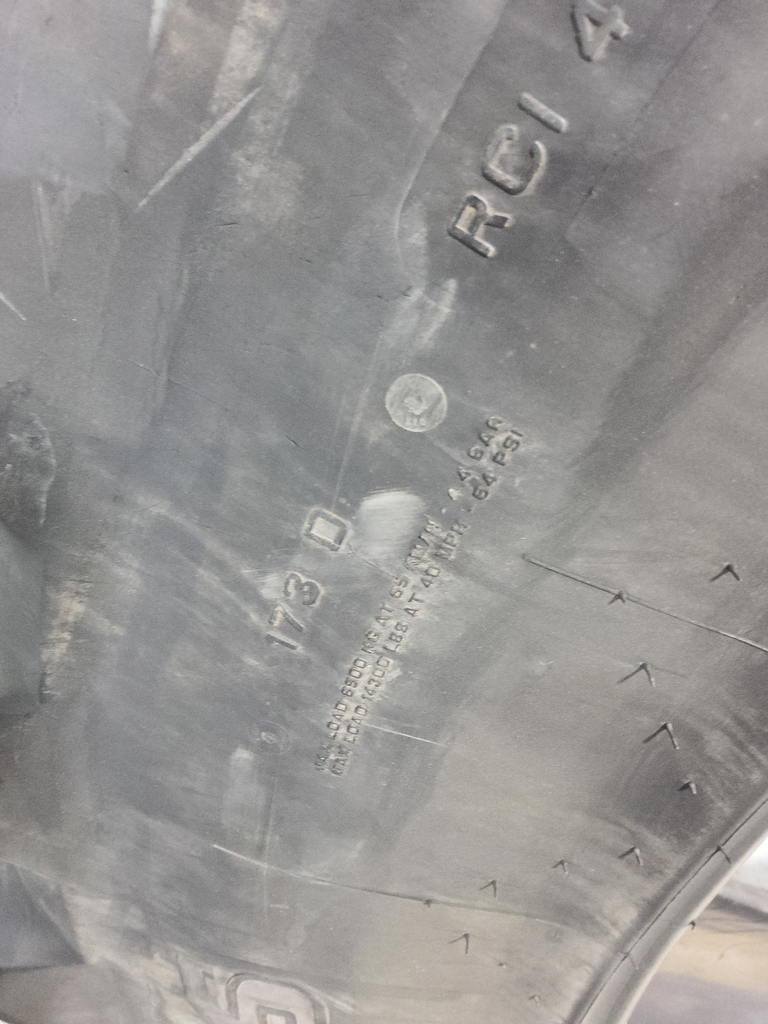

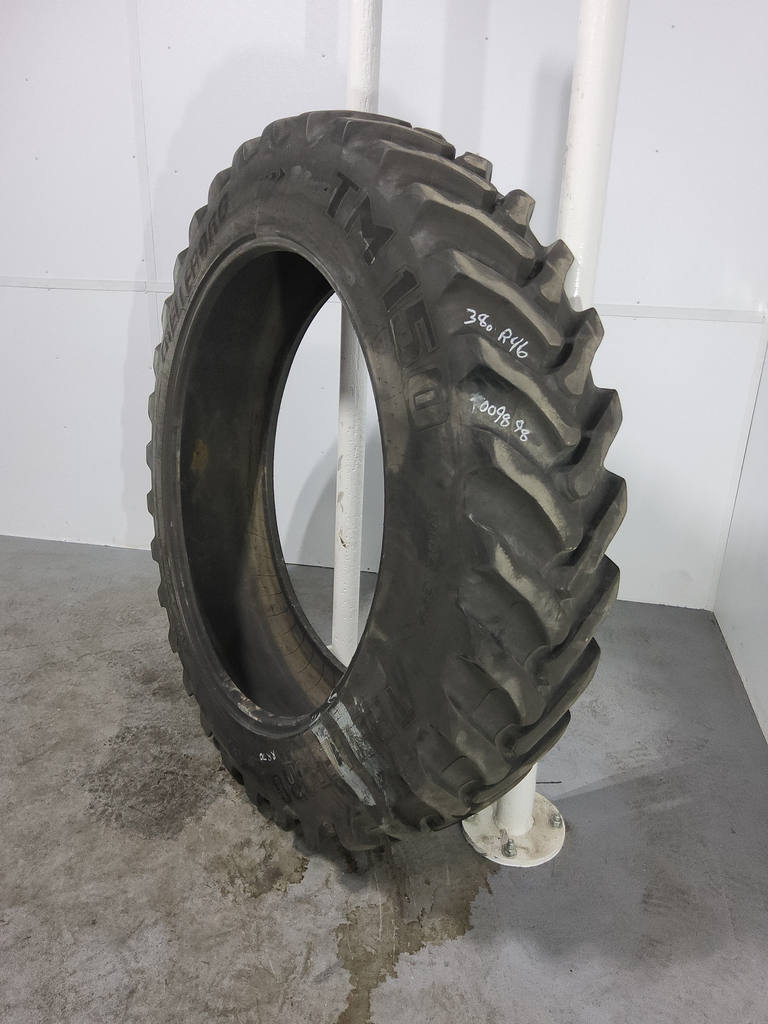

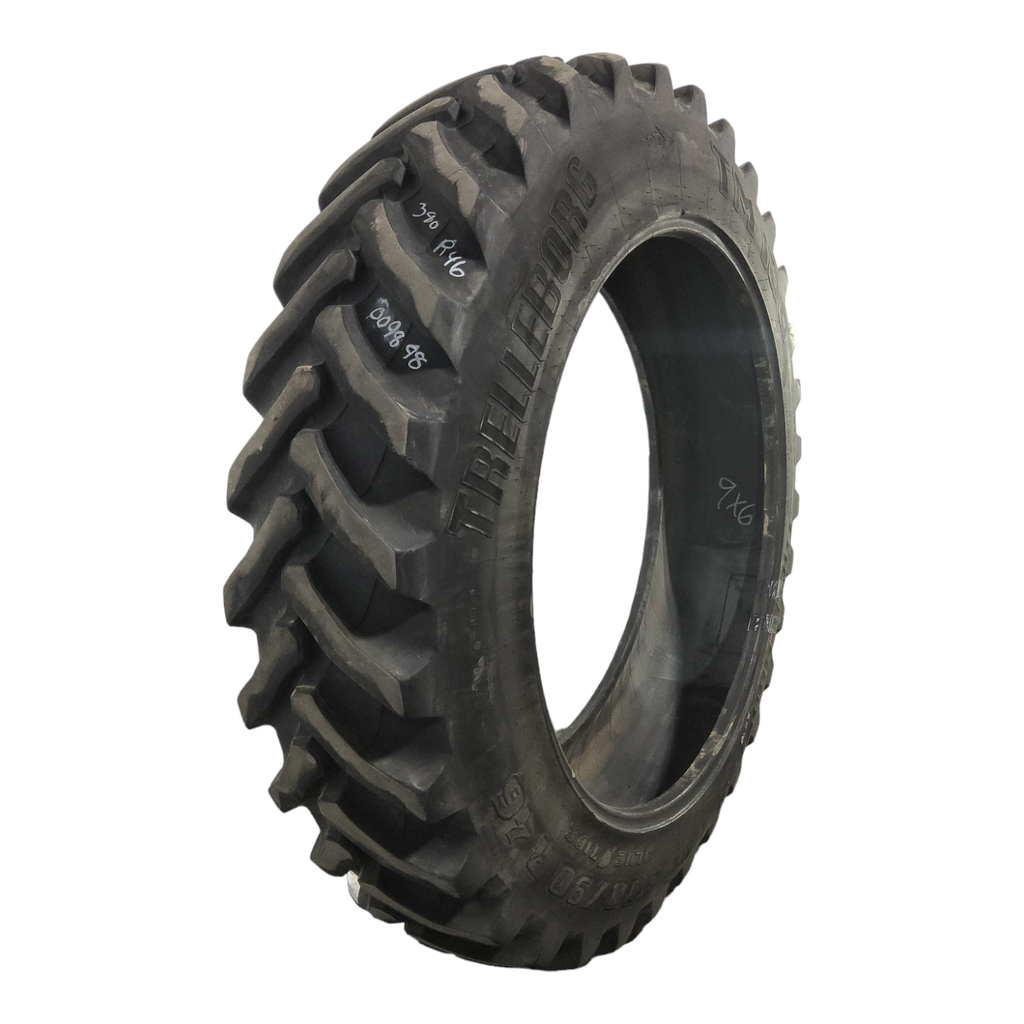

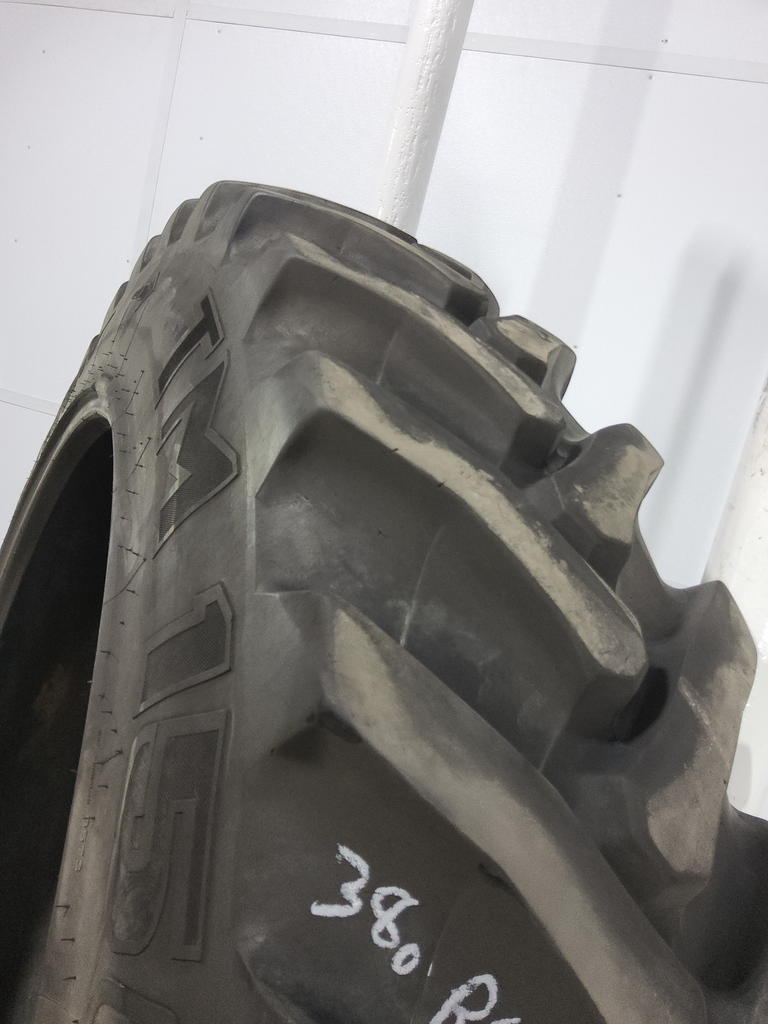

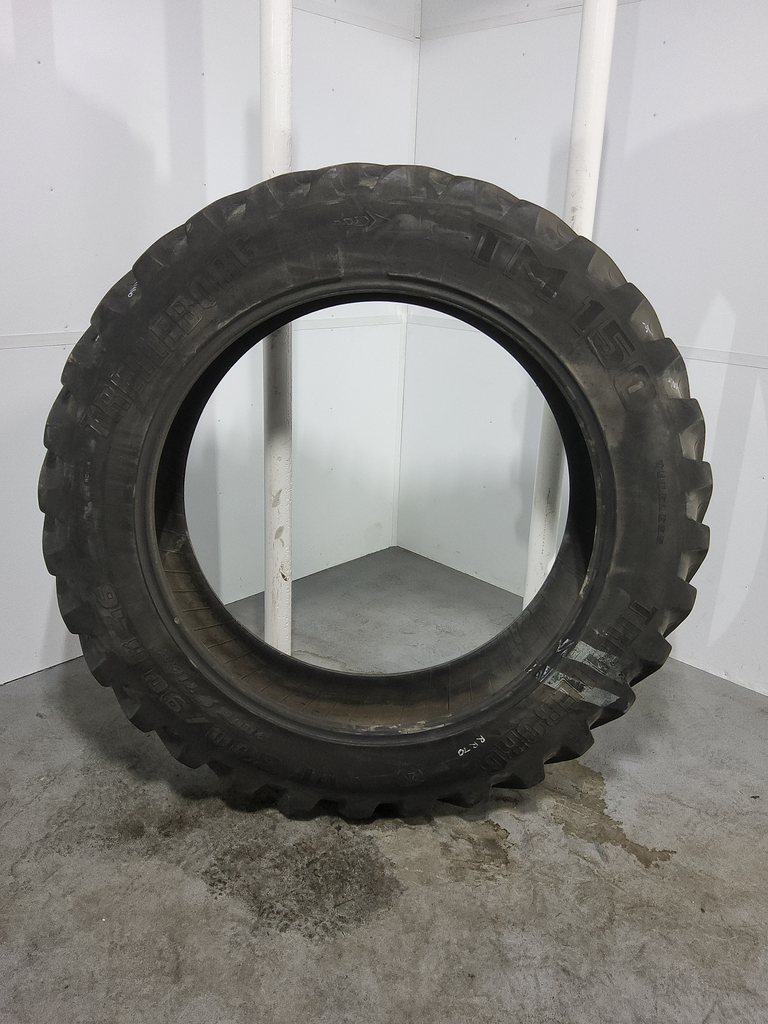

VF380/90R46 Trelleborg TM150 Row Crop Tire R-1 173D 70%
Stock Number:
009898
USED
TIRE
Availability
SOLD
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition |
Grade
C
GRADE ATires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.NOTE: Tread remaining does not affect the product’s Condition grade. Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.
GRADE BTire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.
GRADE CTire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs. |
| Tread Depth Remaining | 70% |
| Chips/Chunking/Cuts | Light |
| Road Wear | None |
| Weathering/Dry Rot | None |
| Stubble | Light |
| Bead Damage/Bent/Chipped | None |
| Blistering-SW/Liner or Face | None |
| Casing Cracks | None |

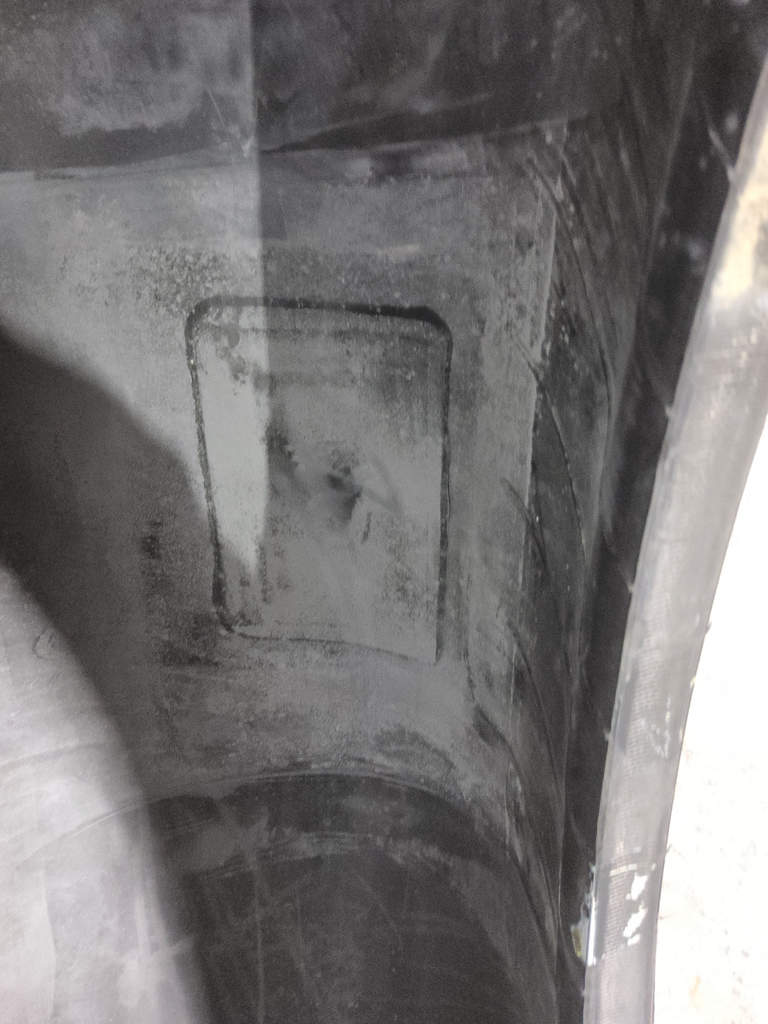

| Repairs Completed | Patch or Boot, Vulcanized Section Repair-Face |
| Warranty | 2 Year Black Gold Warranty |

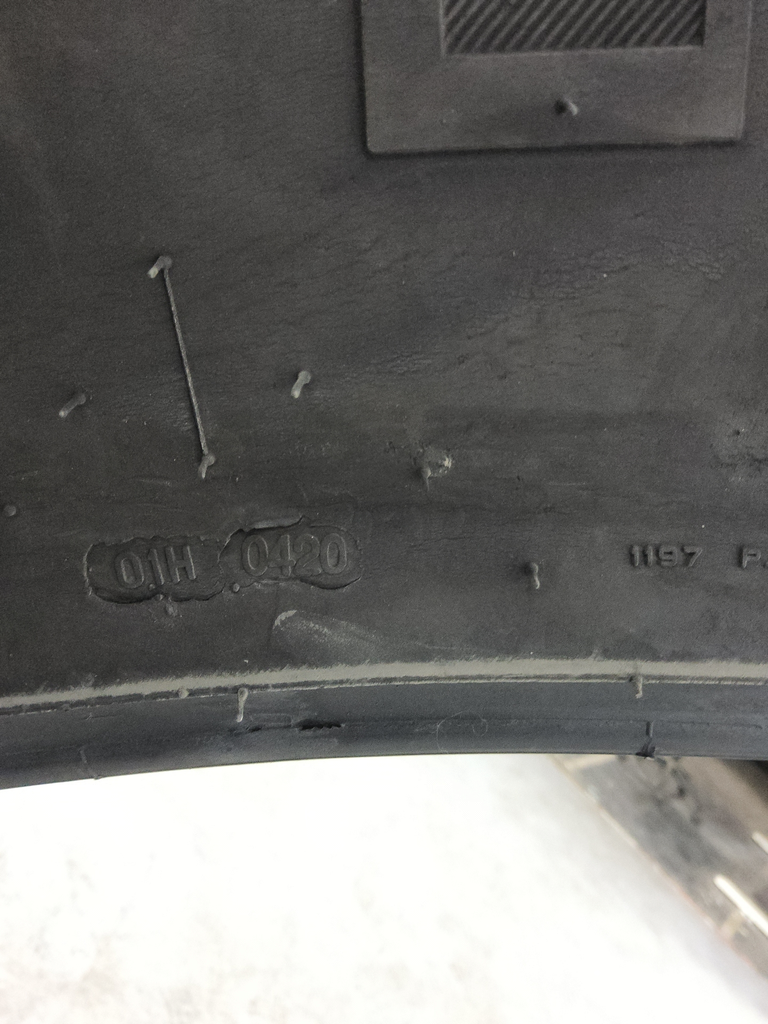

| Mfg Date Code | 2020 |
| Required Product | Sealant |
Specifications
The first Trelleborg very high flexion tire for sprayer applications. The VF technology allows the tire to carry a higher load compared to the standard technology, with lower air pressure. The TM150 has been specifically designed to ensure high stubble resistance.
- Wide lugs for maximun stiffness when high loaded
- Sharp heads to increase the lugs head grip
- Smooth lug shape to boost traction capacity
- Interlug terraces to incorease self cleaning capacity
- Rib reinforcement enhances lug fatigue resistance
- Large shoulder-base rounds increase stability of vehicle when booms are extended
| Stock No. | 009898 |
| Brand | Trelleborg |
| Model/Style | TM150 Row Crop Tire |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 380/90R46 |
| Rim Width | 12.25", 12.5", 12", 13" |
| Preferred Rim | |
| RCI Group | 46 (71.41" - 75.25") |
| Casing Technology | (VF) Very High Flexion |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 350.0 |
| Diameter | 72.4 |
| Width | 15.4 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 33.1 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 173D |
| Load Limit Single | 14300 lbs / 6486 kgs |
| Load Limit Dual | 12584 lbs / 5708 kgs |
| Load Limit Triple | 11726 lbs / 5318 kgs |
| Max PSI | 58 |
