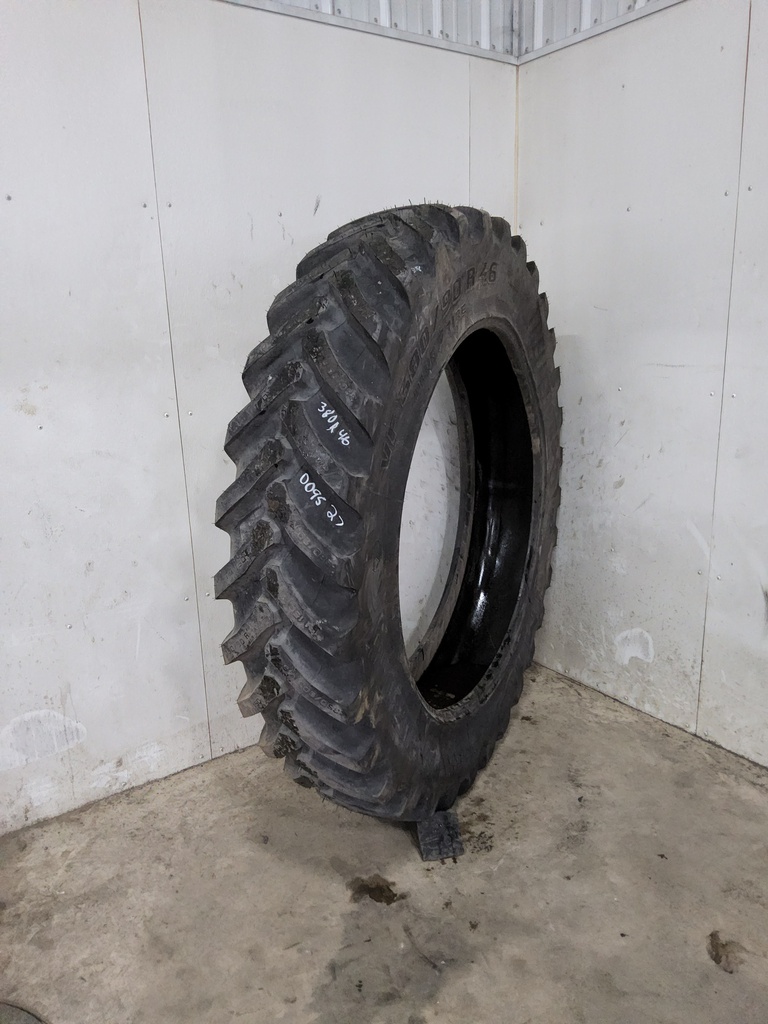

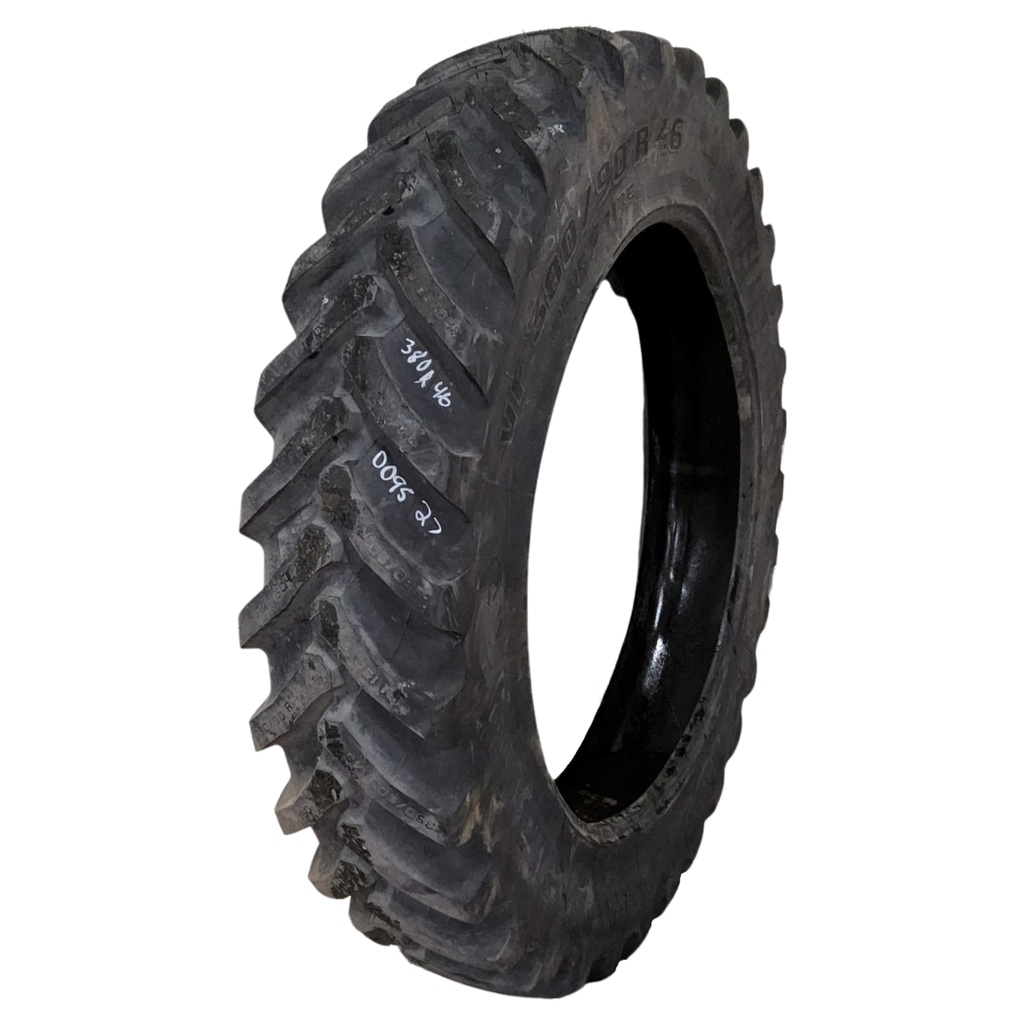

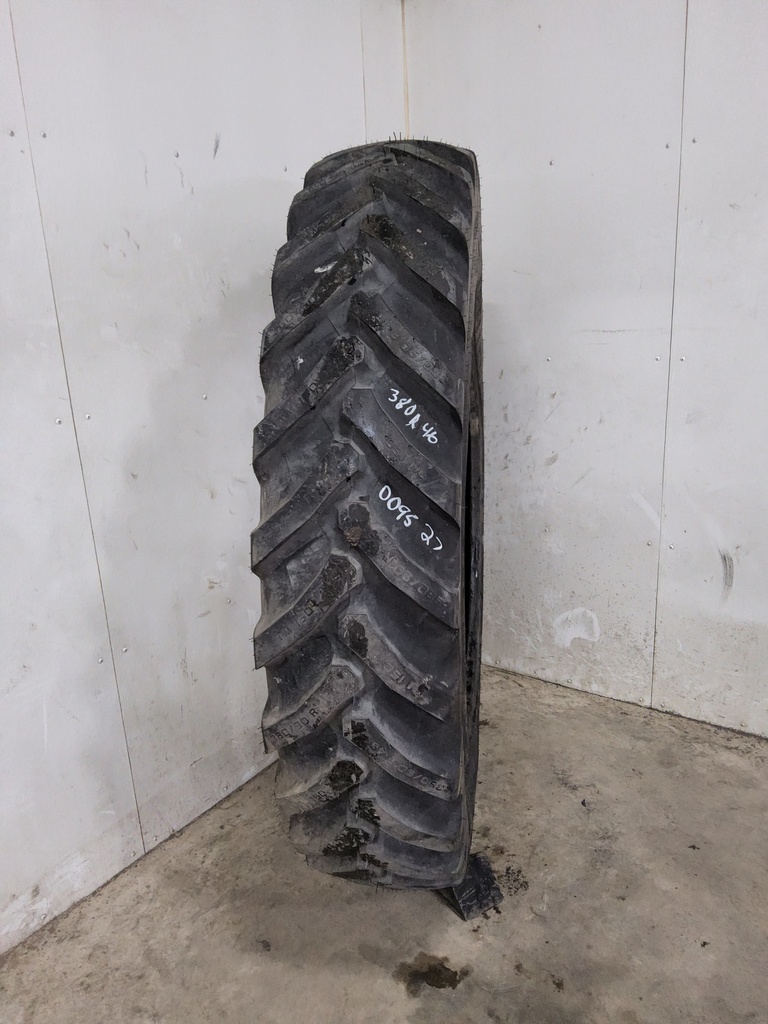

VF380/90R46 Trelleborg TM150 Row Crop Tire R-1 173D 99%

Stock Number: 009527
USED TIRE

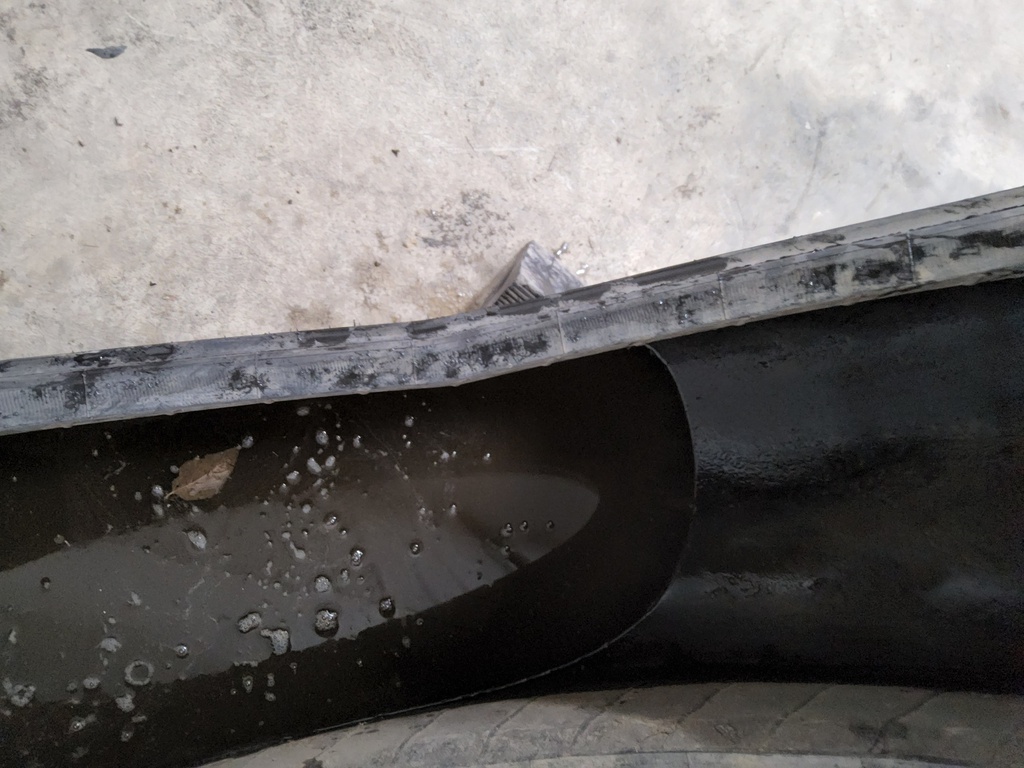

Pin Holes

$ 643.00 $ 643.00

/ea
Add to cart
Contact Us
Availability
SOLD
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
Condition Notes
Condition Grade C

GRADE A
Tires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.
NOTE: Tread remaining does not affect the product’s Condition grade.
Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.

GRADE B
Tire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.
Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.

GRADE C
Tire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.
Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs.

Tread Depth Remaining 99%
Chips/Chunking/Cuts Light
Road Wear None
Weathering/Dry Rot None
Stubble None

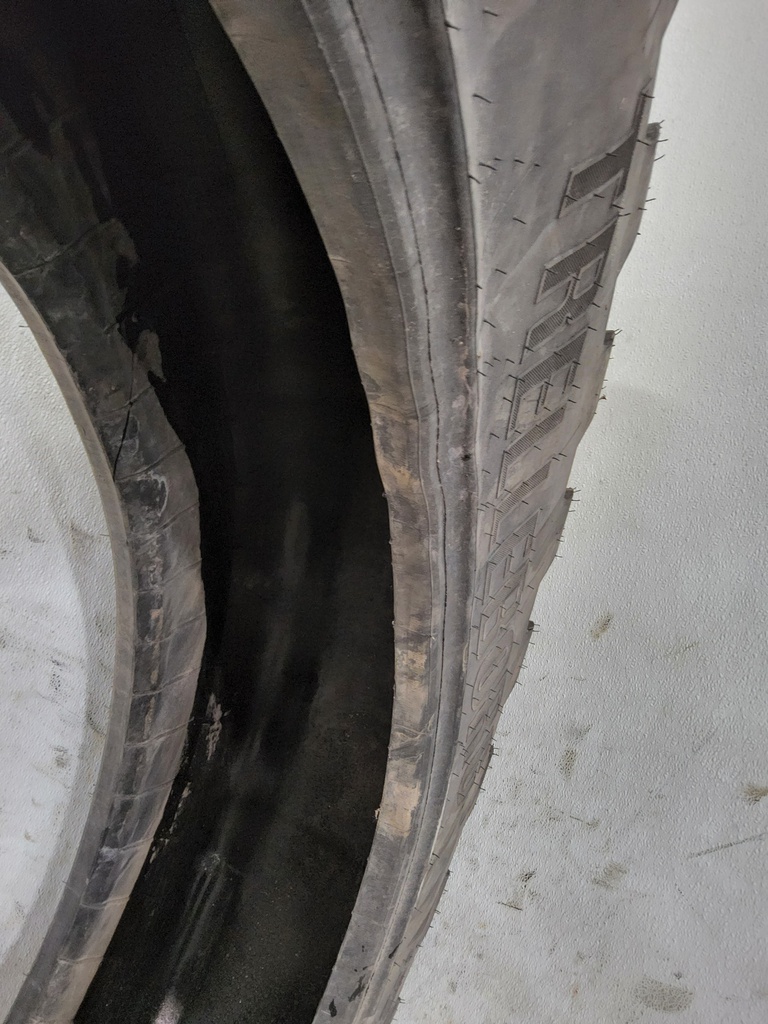

Bead Damage/Bent/Chipped Light
Blistering-SW/Liner or Face None
Casing Cracks None
Repairs Completed None
Warranty 2 Year Black Gold Warranty
Mfg Date Code 3818
Required Product Tube
Specifications

The first Trelleborg very high flexion tire for sprayer applications. The VF technology allows the tire to carry a higher load compared to the standard technology, with lower air pressure. The TM150 has been specifically designed to ensure high stubble resistance.

  • Wide lugs for maximun stiffness when high loaded
  • Sharp heads to increase the lugs head grip
  • Smooth lug shape to boost traction capacity
  • Interlug terraces to incorease self cleaning capacity
  • Rib reinforcement enhances lug fatigue resistance
  • Large shoulder-base rounds increase stability of vehicle when booms are extended
Stock No. 009527
Brand Trelleborg
Model/Style TM150 Row Crop Tire
Tread Style (R-1) Agricultural Regular Tread
Tire Size 380/90R46
Rim Width 12.25", 12.5", 12", 13"
Preferred Rim
RCI Group 46 (71.41" - 75.25")
Casing Technology (VF) Very High Flexion
Casing Application
Tire Compound
Belt Construction
Sidewall Style
TT/TL (TL) Tubeless
Weight 350.0
Diameter 72.4
Width 15.4
Rolling Circumference 0.0
Static Load Radius 33.1
Flat Plate Area 0
Tread Width 0.0
Ply Rating
Load Index/Speed Rating 173D
Load Limit Single 14300 lbs / 6486 kgs
Load Limit Dual 12584 lbs / 5708 kgs
Load Limit Triple 11726 lbs / 5318 kgs
Max PSI 58
