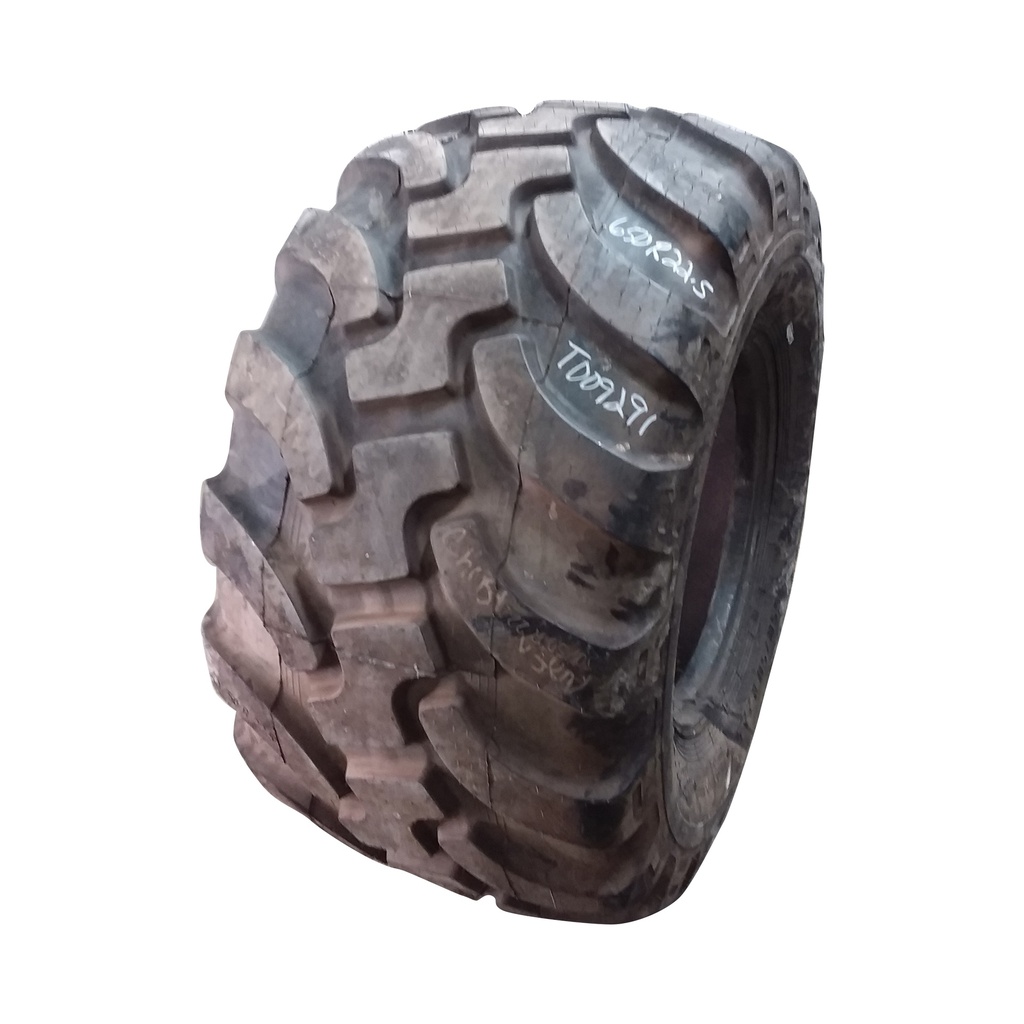

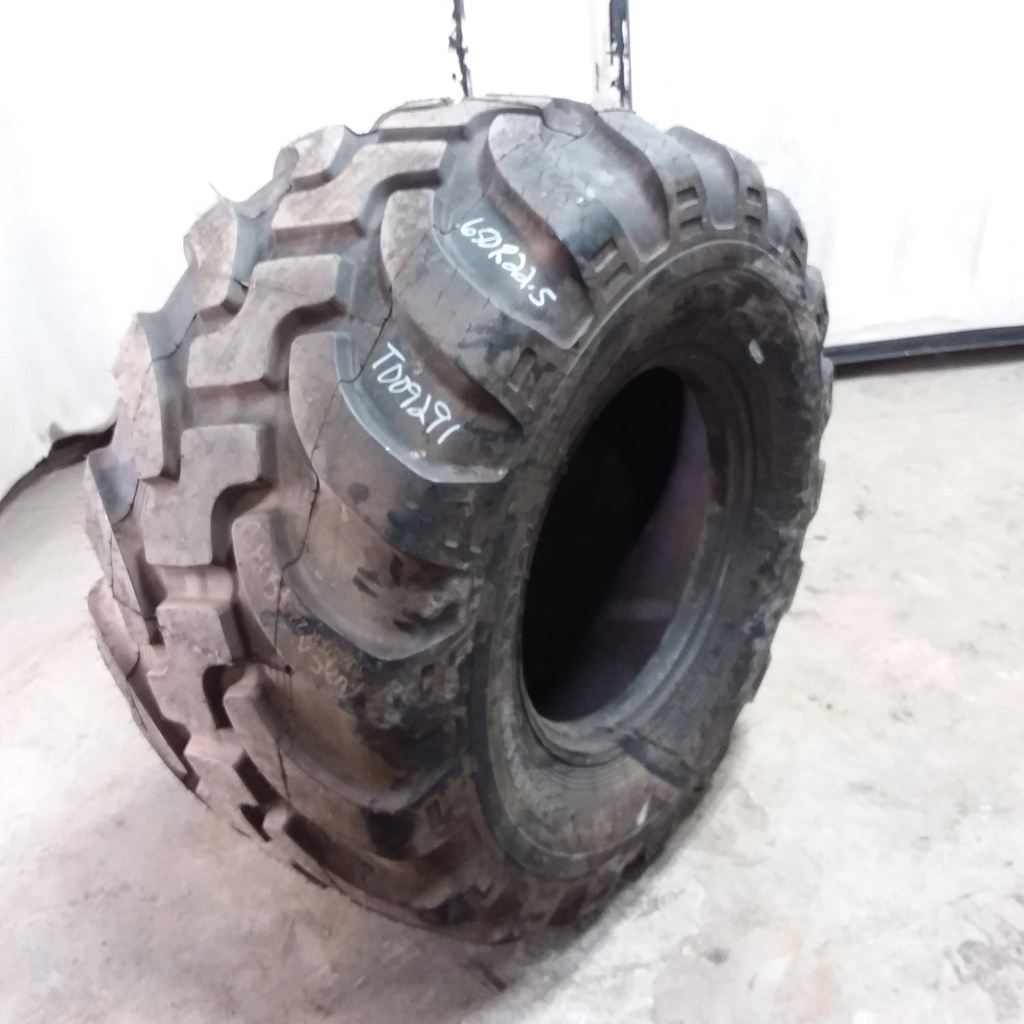

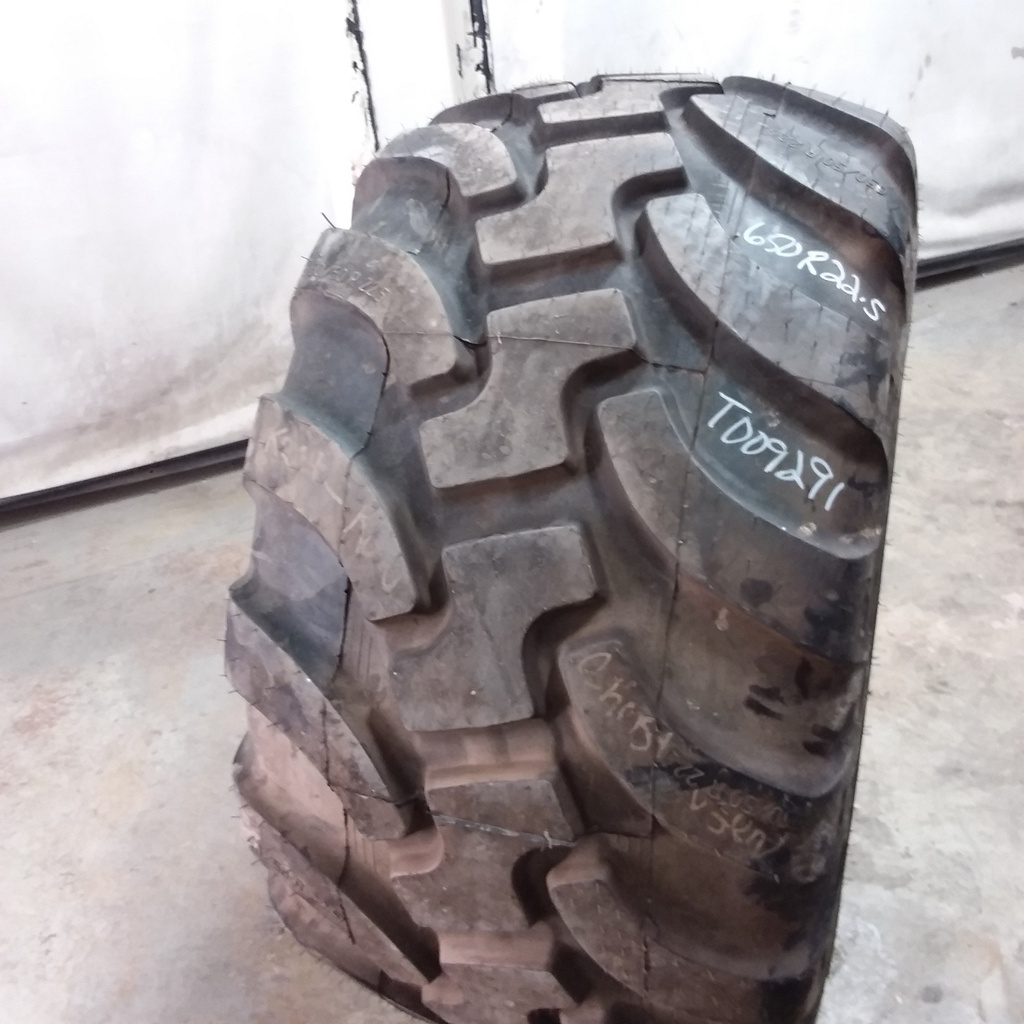

650/50R22.5 Alliance 380 Flotation Radial I-2 163E 99%
Stock Number:
T009291-Z
NEW_TAKEOFF
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition |
Grade
A
GRADE ATires & Tracks - In very good condition with a clean casing, no repairs, no damage and no weathering.NOTE: Tread remaining does not affect the product’s Condition grade. Wheels & Hardware - Product is like new with no noticeable repairs or damage. Refurbished products may be Grade A.
GRADE BTire & Tracks - In average condition with some possible weathering. Expect normal wear and tear and/or minor repairs.Wheels & Hardware - In average condition with some possible fading, scratches, light rust and/or minor repairs.
GRADE CTire & Tracks - Usable but in poor condition. Likely to have moderate to heavy stubble, weathering and/or repairs.Wheels & Hardware - Usable but in poor condition. Likely to have poor paint, moderate to heavy rust, and noticeable damage and/or repairs. |
| Tread Depth Remaining | 99% |
| Chips/Chunking/Cuts | None |
| Road Wear | None |
| Weathering/Dry Rot | None |
| Stubble | None |
| Bead Damage/Bent/Chipped | None |
| Blistering-SW/Liner or Face | None |
| Casing Cracks | None |
| Repairs Completed | None |
| Warranty | 2 Year Black Gold Warranty |
| Mfg Date Code | 1916 |
| Required Product | None |
Specifications
Heavy-Duty Radial Flotation Implement tire for Fertilizer Trucks, Spreaders and Trailers Providing Full Soil Protection and Flotation Characteristics in the Field.
- Steel belted construction, specific casing construction and special rubber compound
- Deep non-directional lug type pattern
- Enables it to run a thigh speed on road
- Enables high mobility in field including significant traction ability as well as comfortable smooth run on road
| Stock No. | T009291-Z |
| Brand | Alliance |
| Model/Style | 380 Flotation Radial |
| Tread Style | (I-2) Agricultural Implement Moderate Tread |
| Tire Size | 650/50R22.5 |
| Rim Width | 20" |
| Preferred Rim | |
| RCI Group | 38 (46.96" - 49.65") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 283.0 |
| Diameter | 48.6 |
| Width | 25.6 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 21.8 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 163E |
| Load Limit Single | 10700 lbs / 4853 kgs |
| Load Limit Dual | 9416 lbs / 4271 kgs |
| Load Limit Triple | 8774 lbs / 3979 kgs |
| Max PSI | 58 |
