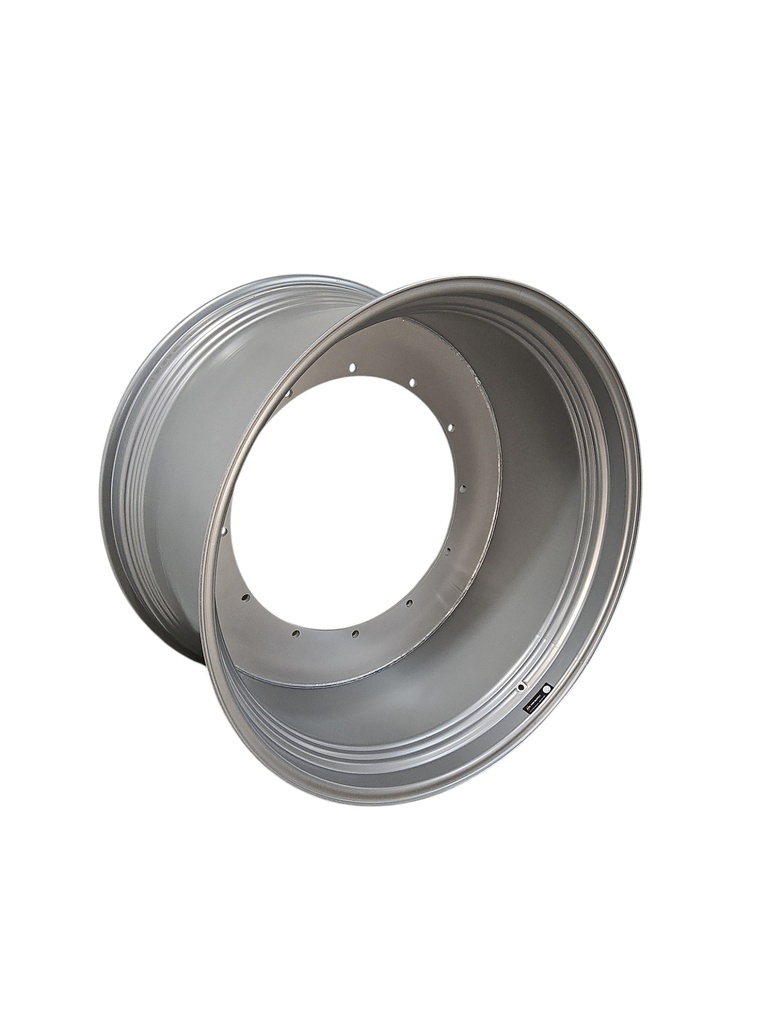

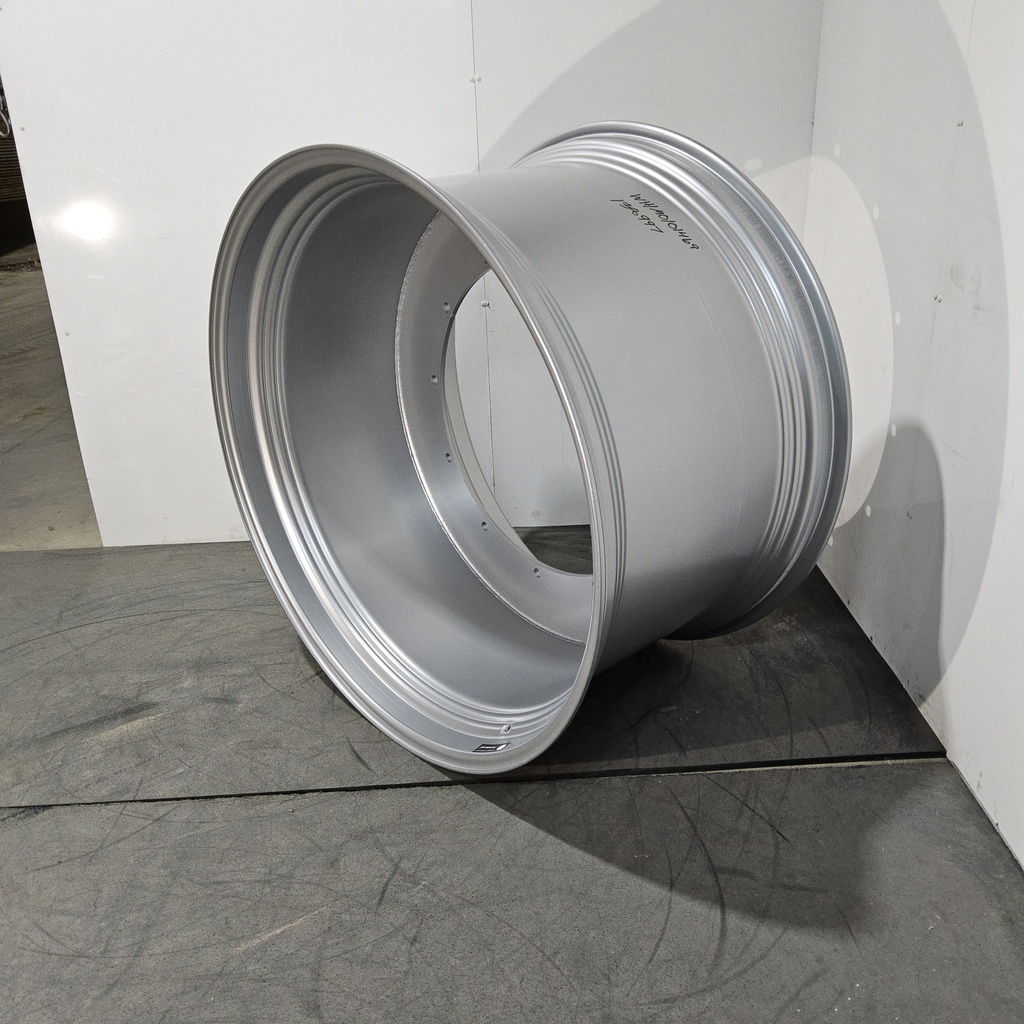

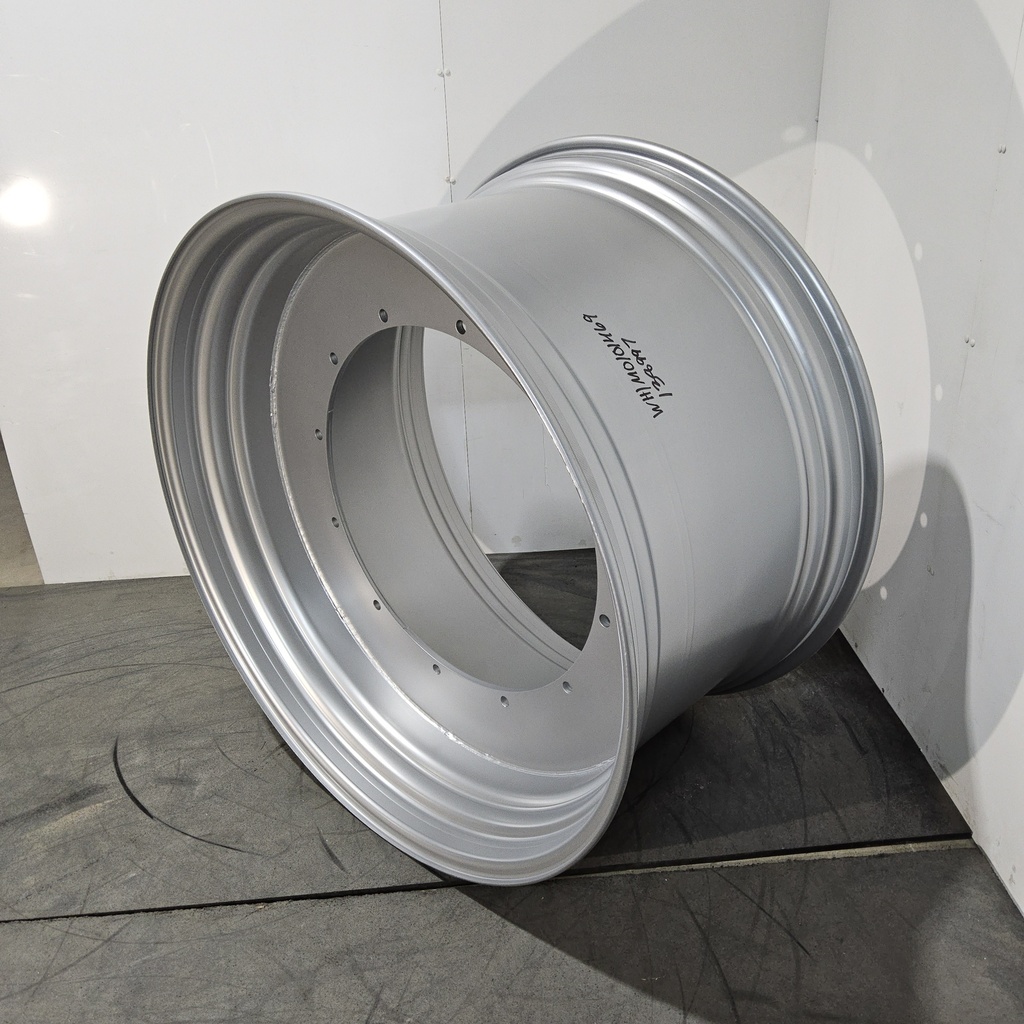

27"W x 46"D, Case IH Silver Mist 12-Hole Flat Plate Sprayer
Stock Number:
NTS-138997
MANUFACTURED
WHEEL
Fits CIH Trident 5550 Sprayers
Availability
Call for Availability
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Conditions
| Condition Notes | |
| Condition | Grade |
Specifications
| Stock No. | NTS-138997 |
| Brand | NTS Tire Supply |
| Model/Style | Flat Plate Sprayer |
| Rim Design | Medium Drop-Center |
| Rim Diameter | 46" |
| Rim Width | 27" |
| Paint Color | Case IH Silver Mist |
| Weight Holes | No |
| Flange Reinforcement | No |
| Valve Guard | No |
| Valve Hole Location | C - Corner/Angle |
| Weight | 475.0 |
| Diameter | 48.0 |
| Width | 28.75 |
| Disc Thickness | 0.625 |
| Wheel Offset | -5.0 |
| Rim Backside | 9.375 |
| Rim Frontside | 18.75 |
| Rim Inside Diameter | 42.0 |
| Drop Center Width | 17.00 |
| Casting Diameter | 0.0 |
| Rim Material Thickness | 0.276 |
| Valve Hole Diameter | 5/8" |
| Bolt Hole Quantity | 12 |
| Bolt Circle Diameter | 30.375 |
| Bolt Hole Size | 22MM(7/8") Bolt |
| Actual Bolt Hole Size | 0.937 |
| Pilot Hole | 28.375 |
| Bolt Countersink | Straight Round |
| BtB Measurement | 0.0 |
| Lugs/Rails Quantity | |
| Outside Bolt Hole Quantity | 0 |
| Outside Bolt Circle Diameter | 0.0 |
| Outside Bolt Hole Size | |
| Outside Actual Bolt Hole Size | 0.0 |
| Outside Bolt Countersink | |
| Outside BtB Measurement | 0.0 |
| Max Weight | 0.0 |
| Rim Rating |
