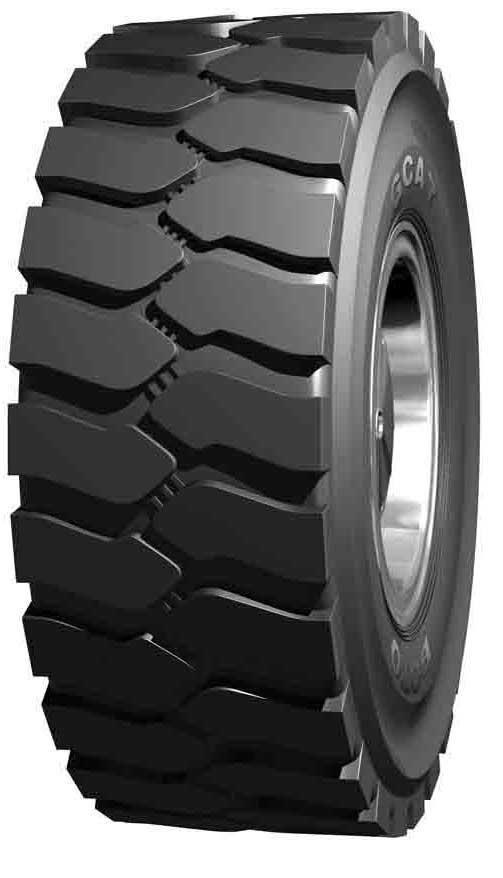

29.5R25 Boto GCA7 E-4 200B 100%
Stock Number:
B106501
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Articulated Dumper, Underground Shuttle Truck
- Unique non-directional traction patterns ensure optimum traction and prolongs tread life.
- Superior sidewall cut resistance.
- Good self-cleaning with groove stone ejector.
- This deep tread is particularly suitable for loaders and dump trucks operating in quarries or mining.
| Stock No. | B106501 |
| Brand | Boto |
| Model/Style | GCA7 |
| Tread Style | (E-4) Earthmover Rock Deep Tread |
| Tire Size | 29.5R25 |
| Rim Width | 25" |
| Preferred Rim | |
| RCI Group | 46 (71.41" - 75.25") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 1248.0 |
| Diameter | 73.74 |
| Width | 29.53 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 33.5 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 200B |
| Load Limit Single | 30900 lbs / 14016 kgs |
| Load Limit Dual | 27192 lbs / 12334 kgs |
| Load Limit Triple | 25338 lbs / 11493 kgs |
| Max PSI | 76 |
