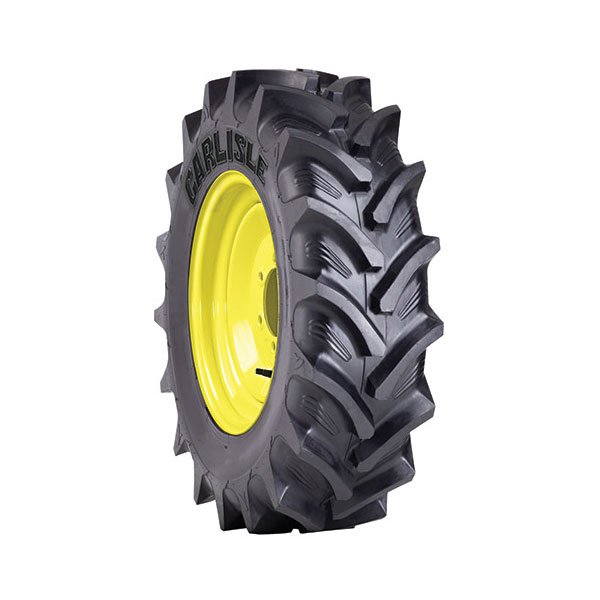

9.5R20 Carlisle FSTR CSL28 R-1W 108A8 100%
Stock Number:
6A05652
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Agricultural Radial R-1W Heavy-Duty Large Tractor Application tire.
- Larger, more consistent footprint
- Engineered compounds
- Improved traction and reduced soil compaction
- For longer service life
| Stock No. | 6A05652 |
| Brand | Carlisle |
| Model/Style | FSTR CSL28 |
| Tread Style | (R-1W) Agricultural Deep Tread/Wet Soil |
| Tire Size | 9.5R20 |
| Rim Width | 8" |
| Preferred Rim | |
| RCI Group | 33 (36.21" - 38.20") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 71.4 |
| Diameter | 36.93 |
| Width | 9.49 |
| Rolling Circumference | 111.0 |
| Static Load Radius | 16.6 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 108A8 |
| Load Limit Single | 2200 lbs / 997 kgs |
| Load Limit Dual | 1936 lbs / 878 kgs |
| Load Limit Triple | 1804 lbs / 818 kgs |
| Max PSI | 23 |
