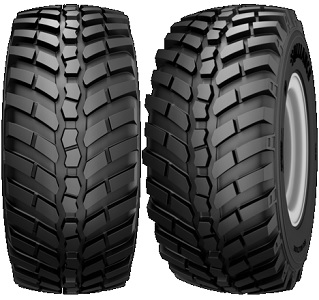

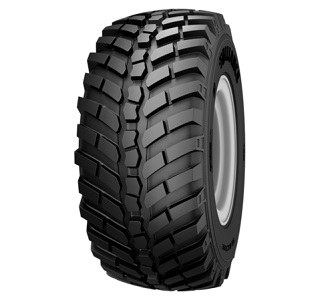

420/65R24 Alliance 550 Multi Use SB R-4 146D 100%
Stock Number:
55002475
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Industrial Multiuse tire Developed for Specific Applications on Industrial Tractors, Backhoe Loaders, Municipality and Industrial Tractors dealing mostly with Transport on Hard Surfaces and Compact Construction Machinery. Also Suitable for Agricultural Applications.
- Specific block tread design
- Basic directional lug design divided by separated blocks
- High number of blocks and rubber to void tread ratio
- Steel belted carcass structure
- Enables high performance and exceptional traction on snow, sand, hard and soft surfaces alike
- Good grip on soft surfaces
- Provides long tread wear life and low rolling resistance on hard surfaces
- Provides uniform ground pressure distribution and the most efficient puncture protection
| Stock No. | 55002475 |
| Brand | Alliance |
| Model/Style | 550 Multi Use SB |
| Tread Style | (R-4) Agricultural Industrial Tractor |
| Tire Size | 420/65R24 |
| Rim Width | 13" |
| Preferred Rim | |
| RCI Group | 37 (44.61" - 46.95") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 175.0 |
| Diameter | 45.6 |
| Width | 16.1 |
| Rolling Circumference | 137.4 |
| Static Load Radius | 20.7 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 146D |
| Load Limit Single | 6600 lbs / 2993 kgs |
| Load Limit Dual | 5808 lbs / 2634 kgs |
| Load Limit Triple | 5412 lbs / 2454 kgs |
| Max PSI | 46 |
