24.5-32 Galaxy Diamond Tread R-3 H (16 Ply), 100%
Stock Number:
523580
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications

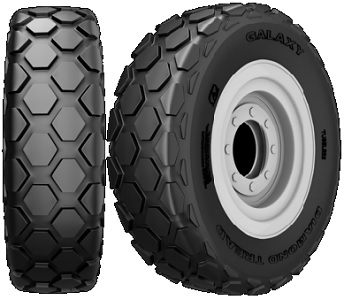

Bias Ply Agricultural, Construction and Industrial R-3 Tire Designed to Provide Plant and Root Protection in Orchards and Groves and is Also Suited for Use on Spreaders, Packers and in Hauling Applications.
- Perfect for spreaders, combines, grassland tractors
- Diamond lug tread pattern with wraparound lugs at shoulder
- 18/32" tread depth
- Load range E
- B speed rating (31 mph)
- To provide excellent flotation characteristics and minimal soil disturbance
| Stock No. | 523580 |
| Brand | Galaxy |
| Model/Style | Diamond Tread |
| Tread Style | (R-3) Agricultural Shallow Turf Tread |
| Tire Size | 24.5-32 |
| Rim Width | 21" |
| Preferred Rim | |
| RCI Group | 45 (67.71" - 71.40") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 513.3 |
| Diameter | 69.5 |
| Width | 21.0 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 31.2 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | H (16 Ply) |
| Load Index/Speed Rating | |
| Load Limit Single | 0 lbs / 0 kgs |
| Load Limit Dual | 0 lbs / 0 kgs |
| Load Limit Triple | 0 lbs / 0 kgs |
| Max PSI | 30 |
