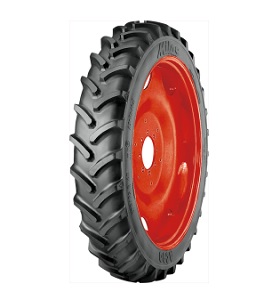

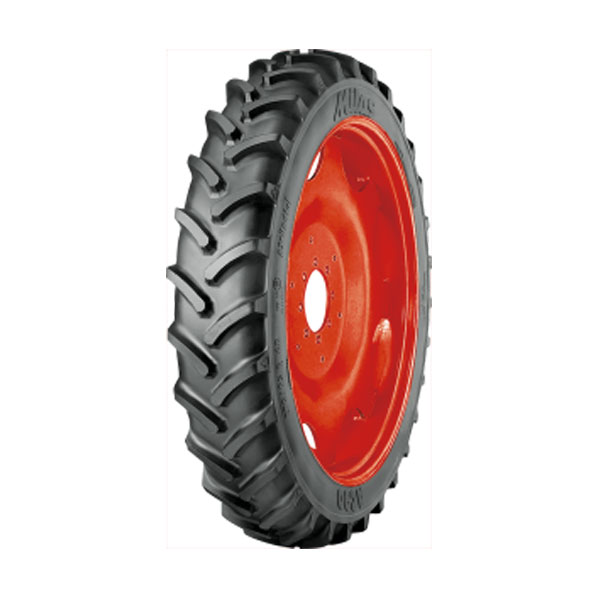

300/95R42 Mitas AC90 Narrow R-1 147A8 100%
Stock Number:
5011514960000
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Row Crop - narrow tires developed specially for row cultivation.
- Reduced tire width eases driving between plants without causing damage contributing to higher yields
- Deep lugs provide excellent traction, better directional stability and a high level of control.
- Good self-cleaning properties help keep the tread pattern free of mud, resulting in less slip, even in difficult conditions.
- Rounded shoulders and lugs and tire height also protect seeds and crops.
- Cost efficient thanks to high load capacity, safe road use and maximum speed up to 50 km/h.
| Stock No. | 5011514960000 |
| Brand | Mitas |
| Model/Style | AC90 Narrow |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 300/95R42 |
| Rim Width | 10.38", 10.5", 10.75", 10", 11", 9.25", 9.38", 9.5", 9.75", 9.88", 9" |
| Preferred Rim | |
| RCI Group | 43 (61.01" - 64.35") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 164.0 |
| Diameter | 63.7 |
| Width | 11.7 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 29.7 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 147A8 |
| Load Limit Single | 6800 lbs / 3084 kgs |
| Load Limit Dual | 5984 lbs / 2714 kgs |
| Load Limit Triple | 5576 lbs / 2529 kgs |
| Max PSI | 58 |
